Middleby Marshall Oven PS528G - Manual (Page 13)

SECTION 2
INSTALLATION
9

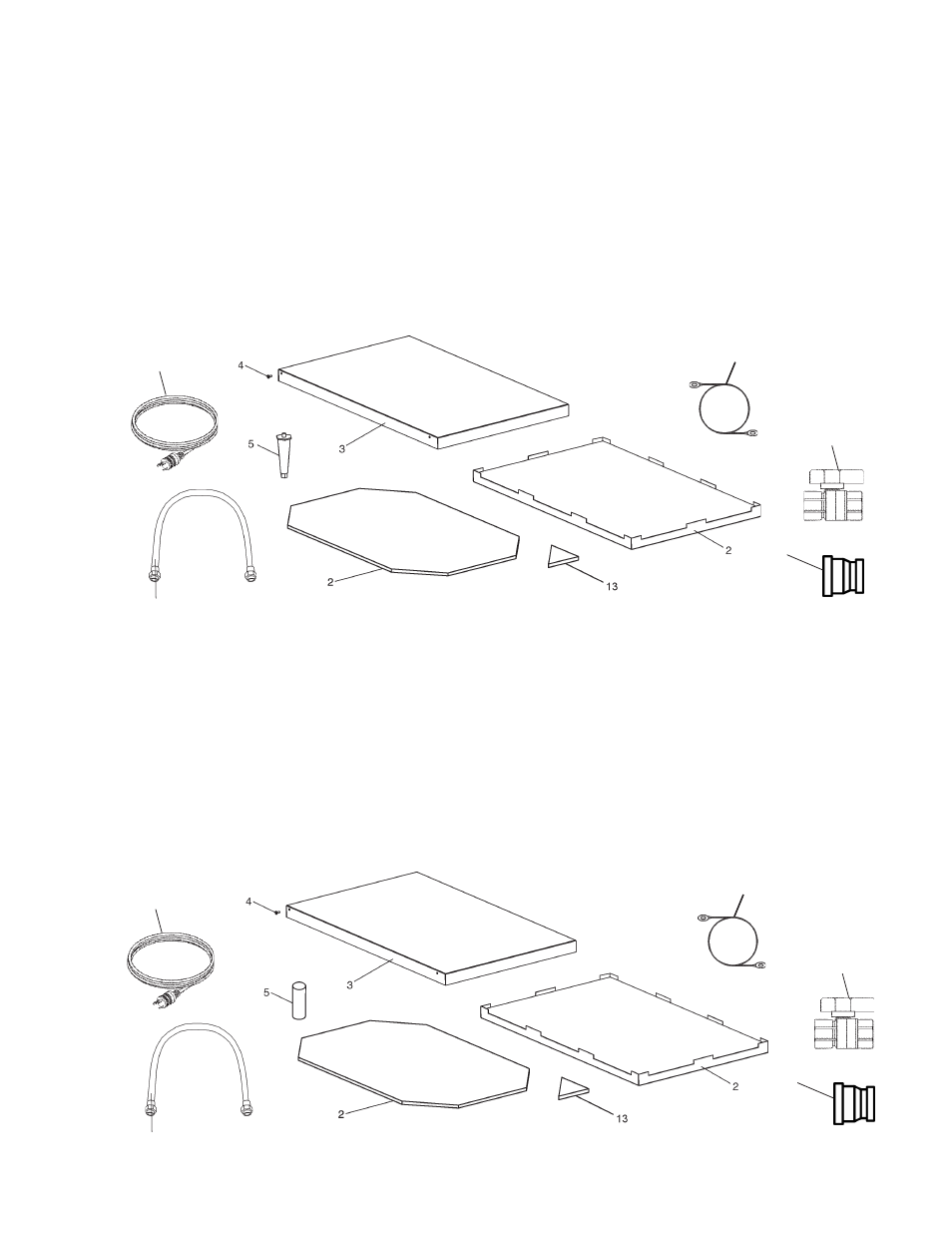

Figure 2-1 (continued). PS528-Series Gas Oven Installation Parts
ITEM NO. QTY PART NO. DESCRIPTION
1 2 62208 INSULATION BOTTOM TRAY
2 1 62206 BOTTOM TRAY WELDMENT
3 1 61650 TOP COVER
4 4 51387 SCREW MSSLT THREAD 8-32 × 1/2, 18-8
5 4 M3828 PIN, ALIGNMENT
7 1 22450-0228 GAS HOSE RESTRAINT CABLE
8 3 22361-0001 GAS HOSE
9 1 49975 CORD & PLUG NEMA L6-20P
10 1 23115-0009 MANUAL GAS VALVE, 3/4″ × 1/2, COUPLER
11 1 31823 REDUCER, 3/4″ – 1/2″
12 2 59227 HEAT GUARD
13 4 62207 INSULATION
PARTS LIST FOR SERIES PS528 Gas OVEN
INSTALLATION KIT Triple Stack Oven P/N 63948
7
8
ITEM NO. QTY PART NO. DESCRIPTION
1 2 62208 INSULATION BOTTOM TRAY
2 1 62206 BOTTOM TRAY WELDMENT
3 1 61650 TOP COVER
4 4 51387 SCREW MSSLT THREAD 8-32 × 1/2, 18-8
5 4 3101908 LEG 4″ AD FT
7 1 22450-0228 GAS HOSE RESTRAINT CABLE
8 2 22361-0001 GAS HOSE
9 1 49975 CORD & PLUG NEMA L6-20P
10 1 23115-0009 MANUAL GAS VALVE, 3/4″ × 1/2, COUPLER
11 1 31823 REDUCER, 3/4″ – 1/2″
12 1 59227 HEAT GUARD
13 4 62207 INSULATION
PARTS LIST FOR SERIES PS528 Gas OVEN
INSTALLATION KIT Double Stack Oven P/N 63947
7
8
9
9
11
10
11
10
