8
SECTION 2
INSTALLATION
PARTS LIST FOR SERIES PS528 GAS OVEN
INSTALLATION KIT
Single Stack Oven
P/N 63946
ITEM
NO. QTY PART NO. DESCRIPTION
1 4 3101908 LEG 4″ AD FT
2 1 62208 INSULATION BOTTOM TRAY
3 1 62206 BOTTOM TRAY WELDMENT
4 1 61650 TOP COVER
5 4 51387 SCREW MSSLT THREAD 8-32 × 1/2, 18-8
7 1 22450-0228 GAS HOSE RESTRAINT CABLE
8 1 22361-0001 GAS HOSE
9 1 49975 CORD & PLUG NEMA L6-20P
10 1 23115-0009 MANUAL GAS VALVE, 3/4″ × 1/2, COUPLER
11 1 31823 REDUCER, 3/4″ – 1/2″
12 4 62207 INSULATION
NOTE: The oven, when installed, must be electrically
grounded in accordance with local codes, or in the absence
of local codes, with the National Electrical Code (NEC),
or ANSI/NFPA70.
NOTE
There must be adequate clearance between
the oven and any adjacent combustible con-
struction. Clearance must also be provided
for servicing and for operation.
CAUTION
It is recommended that the oven be placed under
a ventilation hood for adequate air supply and
ventilation.
CAUTION
Do not obstruct the flow of ventilation air to and
from your oven. Do not obstruct the fan holes in
the rear of the unit.
I. UNLOADING
Your Middleby Marshall PS528-Series Oven is shipped
partially assembled. It will arrive in a carton on a crate.
The crate and carton must be examined before signing the
Bill of Lading. Report any visible damage to the transport
company, and check for the proper number of crates. If
apparent damage is found, make arrangements to file a
claim against the carrier. Surface Interstate Commerce
Regulations (U.S.A.) require that the claim must be initi-
ated by the consignee within 10 days from the date that
the shipment is received.
7
8

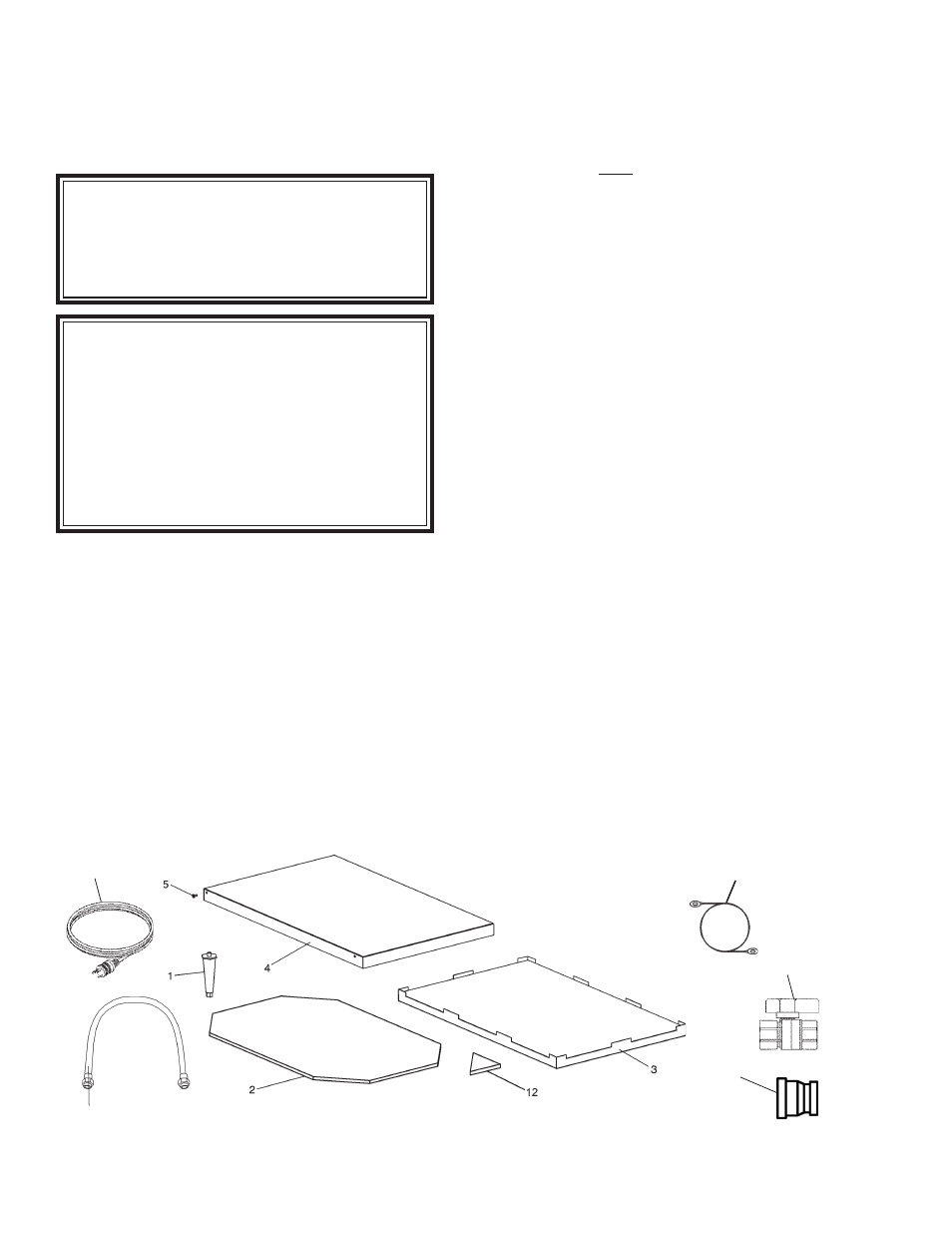

Figure 2-1. PS528-Series Gas Oven Installation Parts
9
10
11
