FX Routing

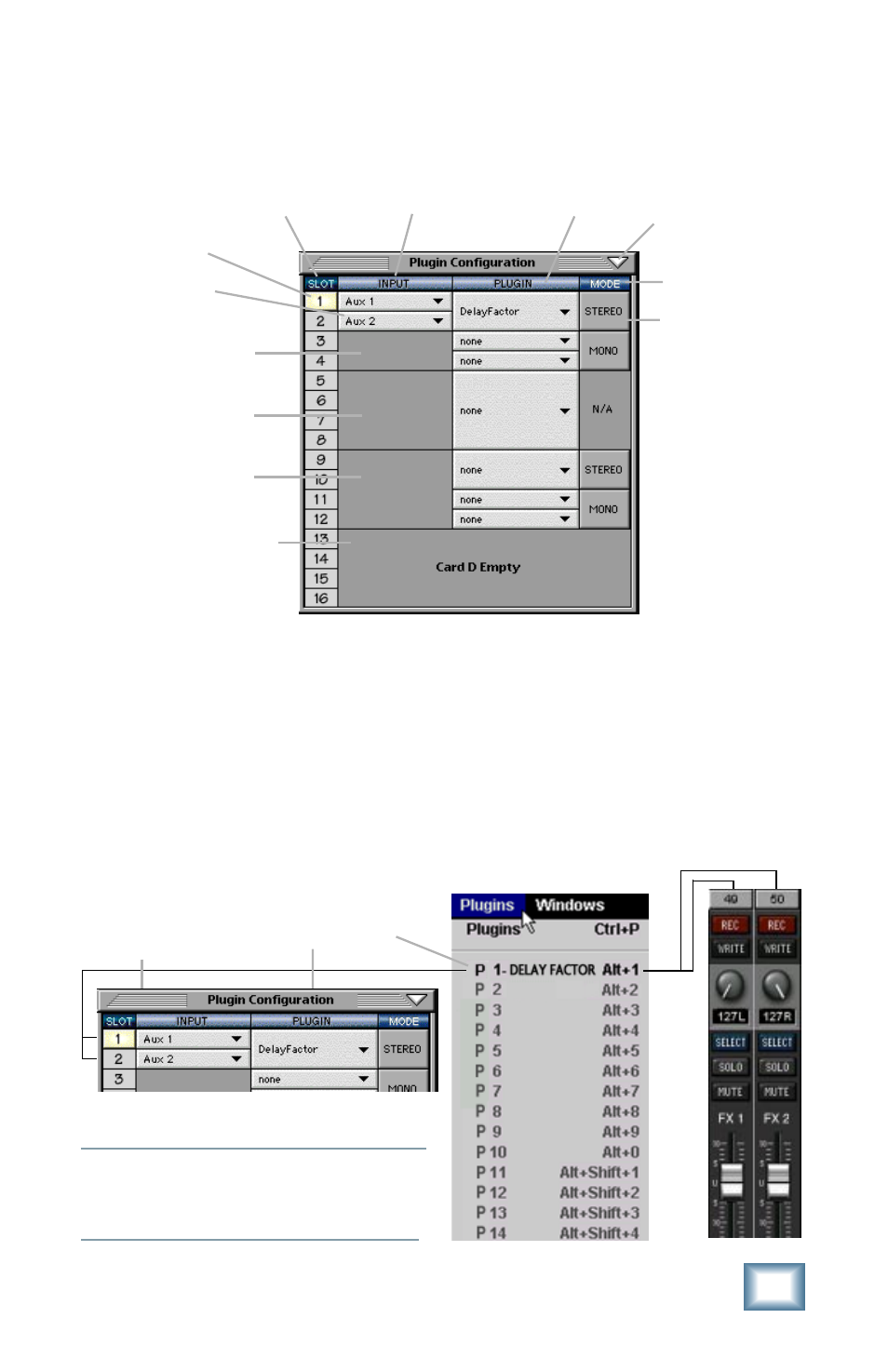

The Plug-in Configuration Window

Card Slot Column

Card B

Card C

Card D (no
card installed)

Card A

Plug-in
display toggle

Input Channel
Assignment Drop-
down Menu Button

Input Source As-
signment Column

Plug-in Assign-
ment Column

Close Window

Stereo/Mono
Mode Column

Stereo/Mono
Toggle Button

Stereo Plug-in Routing

If the plug-in has a stereo input as well as stereo output,
typically it will be fed from two aux buses and returned to a pair
of FX return channels. In the diagram below, Aux 1 and Aux 2
feed the plug-in in stereo, and its output is returned to FX 1 and
FX 2. If the plug-in has a stereo input, it is permissible to send
the same aux to both inputs.

Note:

Note:

Note:

Note:

Note: When an FX Channel Assignment
light is lit, the assigned plug-in is open and
visible on the main mixer screen.

FX Channels 1&2
(channels 49&50)

Stereo Plug-in

Stereo Input
(Aux 1 & 2)
