SBV5122U Cabling Instructions • SBV5122N Cabling Instructions
7
SBV5122 Digital Voice Modem • Installation Manual
568756-001-b

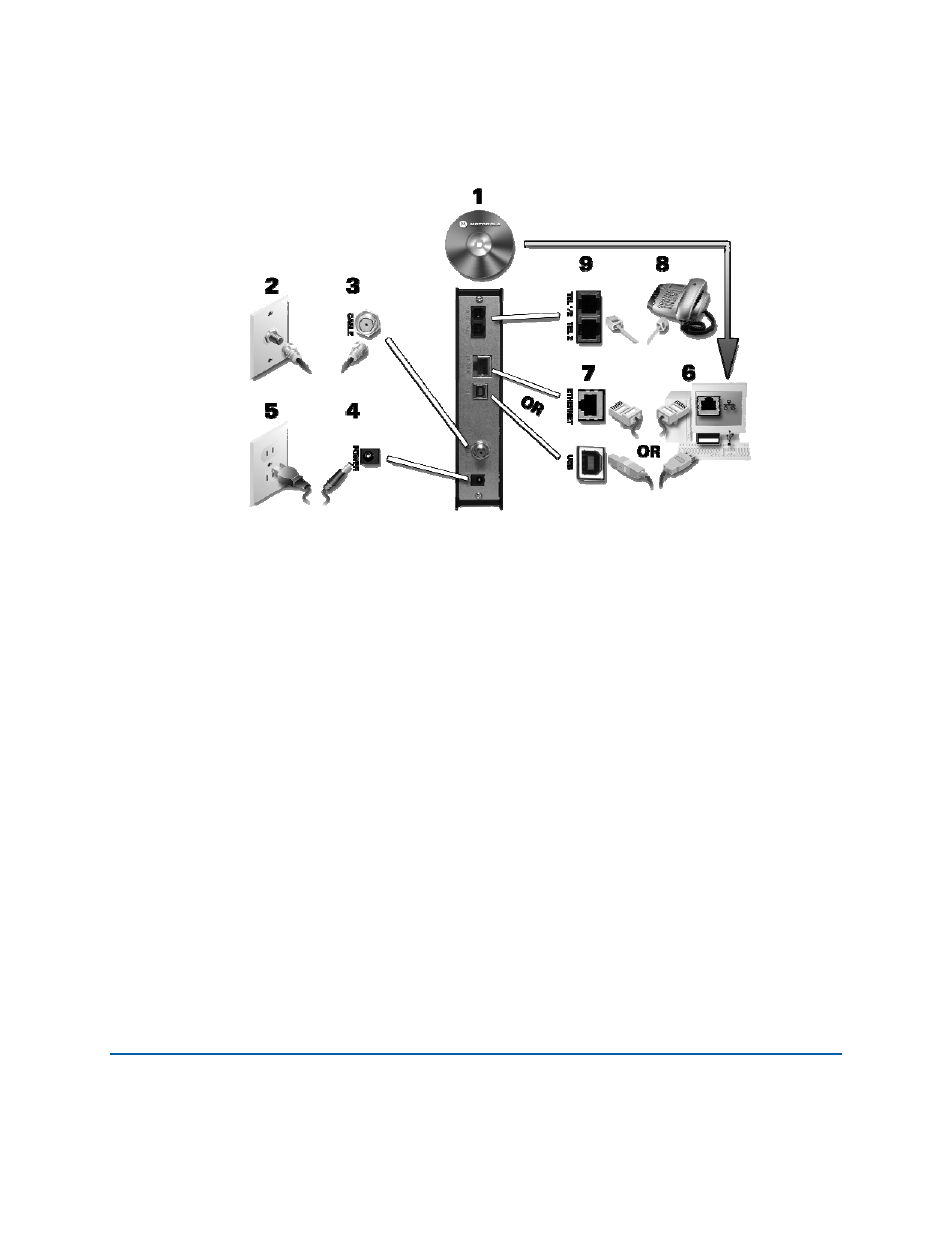

SBV5122N Cabling Instructions
1. Connect one end of the coaxial cable to the cable outlet.
2. Connect the other end of the coaxial cable to the cable connector on the modem.
3. Insert the power cord into the power port on the modem.
4. Plug the other end of the power cord into an electrical outlet.
5. Insert the other end of the Ethernet cable port on the modem.
6. Insert one end of the Ethernet cable to your computer.
7. Insert one end of a telephone cable into the Tel 1/2 or Tel 2 port.
8. Connect the other end of the phone cable to a telephone (to make or receive calls active
VoIP service is required).
