Grounding connection
^ The ground lead must be connected
to the screw connection point
(marked with the ground symbol
8) at
the back of the machine.
The machine must only be operated
with the voltage, frequency and
fusing shown on the
data plate
located on the rear of the machine,
and on the plinth (behind the service
panel).
The conversion diagram and the
wiring diagram is secured to the inner
side of the service panel.

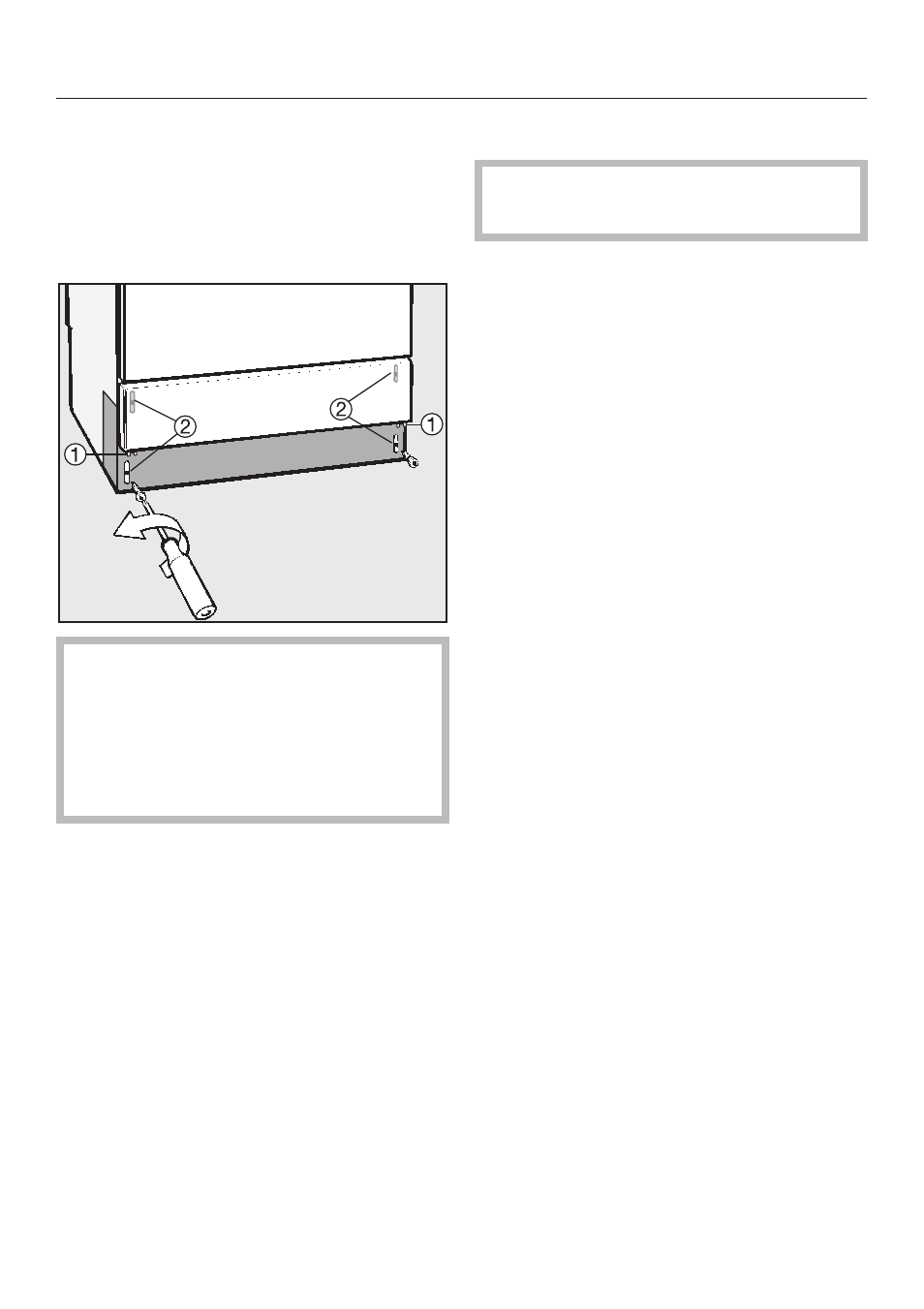

Removing the service panel
Disconnect the machine from the
main electrical supply.
^ Remove the fixing screws, a, from
the service panel.
^ Hold the service panel at both sides
and pull upwards.
^ Unscrew the facing, b. Remove the
plastic protective cap.
^ See the supplied installation diagram.
Re-assembling the service
panel
^ Refit the plastic protective cap,
facing and service panel in the
reverse order to which they were
removed.
