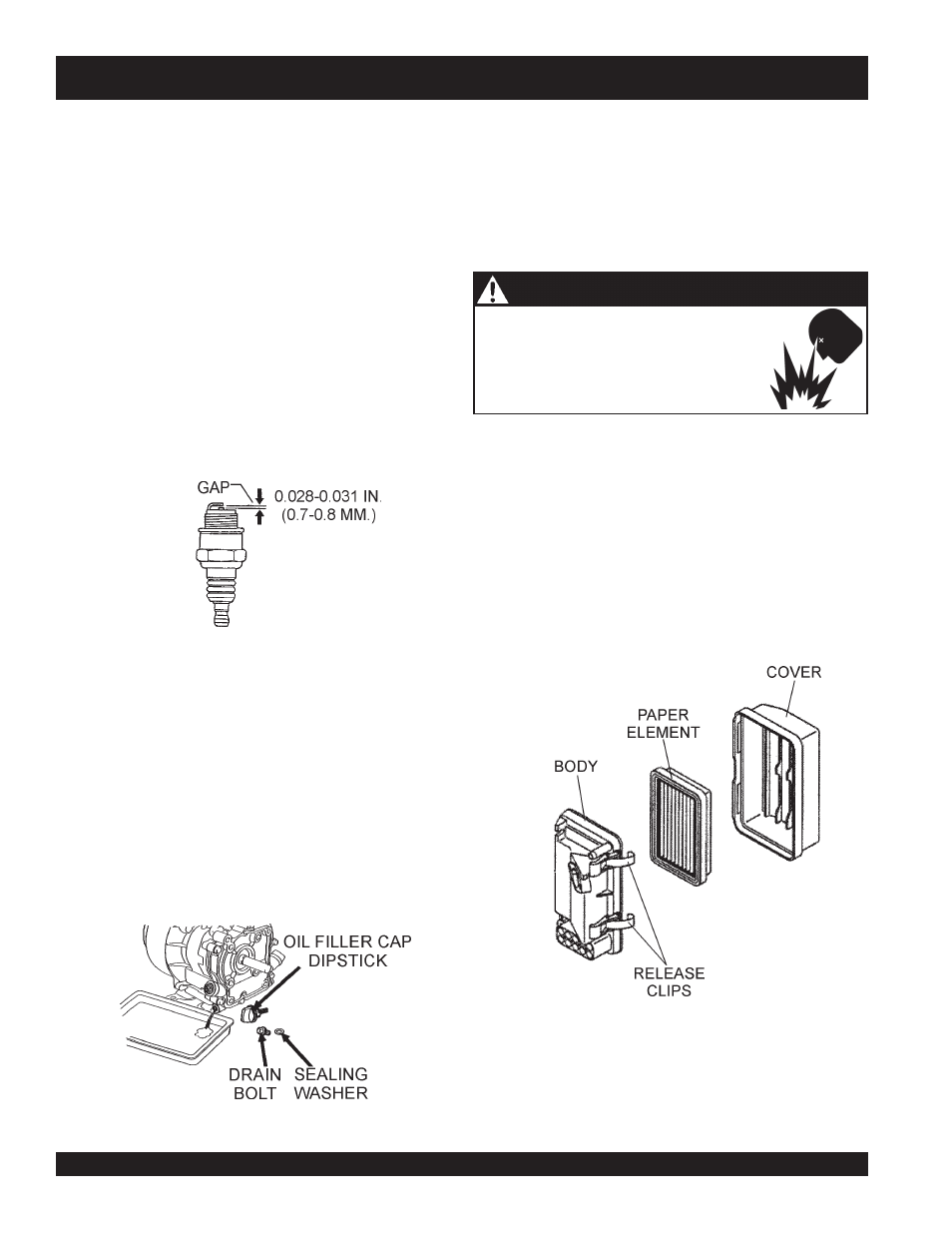

PAGE 28 — GA-4.5R/GA-4.5RA A.C. GENERATOR— OPERATION & PARTS MANUAL — REV. #1 (11/27/06)

GA-4.5R/GA-4.5RA — MAINTENANCE (ENGINE)

Maintenance

Perform the scheduled maintenance procedures as defined by
Table 6 and below:

DAILY
■ Thoroughly remove dirt and oil from the engine and control

area. Clean or replace the air cleaner elements as necessary.
Check and retighten all fasteners as necessary. Check the
gearbox for oil leaks. Repair or replace as needed.

WEEKLY
■ Remove the fuel filter cap and clean the inside of the fuel

tank.

■ Remove or clean the filter at the bottom of the tank.
■ Remove and clean the spark plug (Figure 25), then adjust

the spark gap to 0.024 ~0.028 inch (0.6~0.7 mm). This unit
has electronic ignition, which requires no adjustments.

ENGINE OIL

1. Drain the engine oil when the oil is

warm

as shown in

Figure 26.

2. Remove the oil drain bolt and sealing washer and allow

the oil to drain into a suitable container.

3. Replace engine oil with recommended type oil as listed

in Table 4. For engine oil capacity, see Table 1 (engine
specifications). DO NOT overfill.

4. Install drain bolt with sealing washer and tighten se-

curely.

Figure 26. Engine Oil (Draining)

Figure 25. Spark Plug Gap

ENGINE AIR CLEANER

1. Remove the air cleaner cover and foam filter element as

shown in Figure 27.

2. Tap the paper filter element (Figure 27) several times on a

hard surface to remove dirt, or blow compressed air [not
exceeding 30 psi (207 kPa, 2.1 kgf/cm

2

)] through the filter

element from the air cleaner case side.

NEVER

brush off dirt.

Brushing will force dirt into the fibers. Replace the paper filter
element if it is excessively dirty.

Figure 27. Engine Air Cleaner

Cleaning the Fuel Strainer

Clean the fuel strainer if it contains dust or water. Remove
dust or water in the strainer cap and wash it in gasoline.
Securely fasten the fuel strainer cap so that fuel will not
leak. Check the fuel strainer every 200 hours of operation or
once a month.

DO NOT use gasoline as a cleaning solvent,
because that would create a risk of fire or
explosion.

DANGER - EXPLOSIVE FUEL
