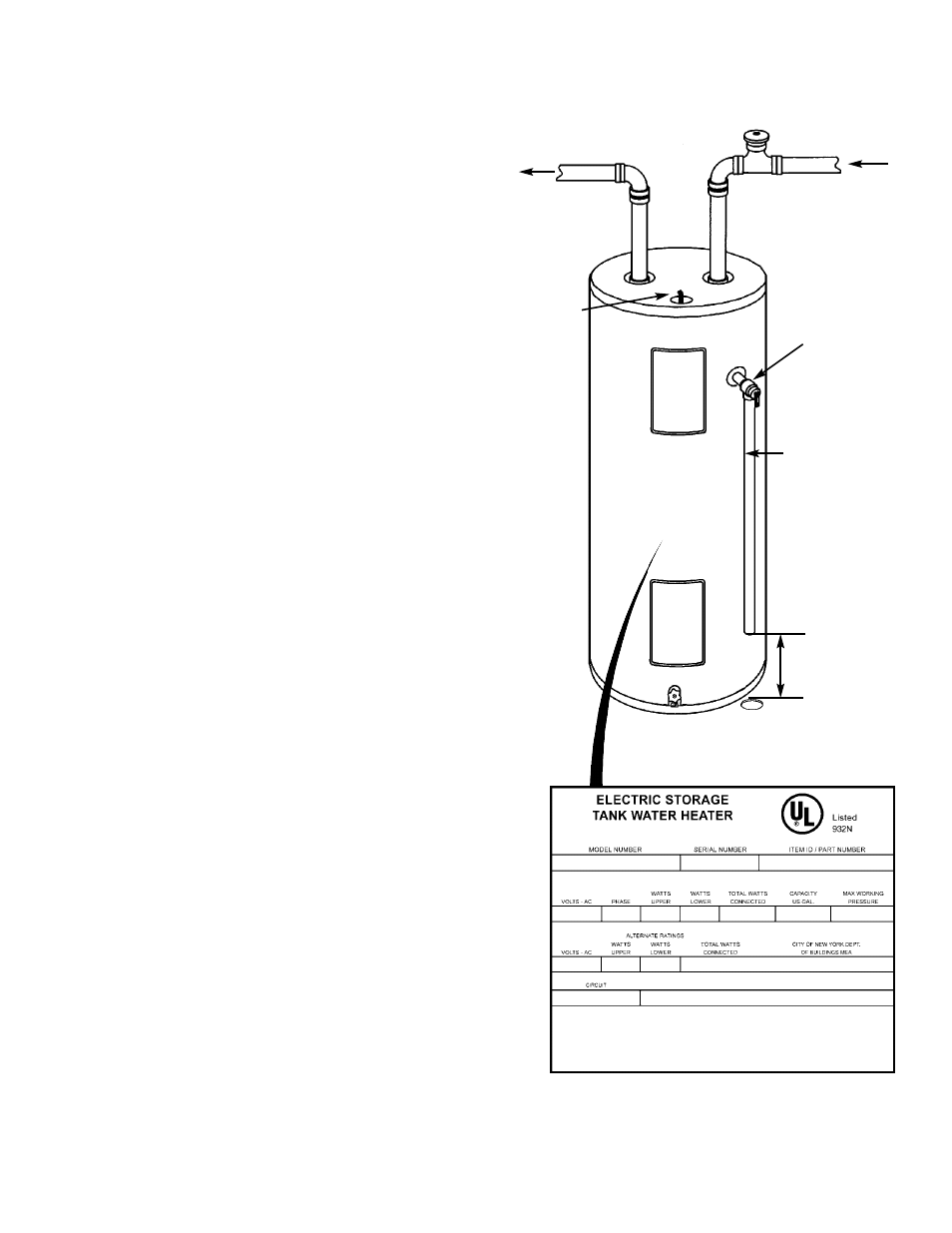

MODEL RATING PLATE
FLOOR DRAIN
DISCHARGE PIPE
(Do not cap or
plug)
6” AIR GAP
HOT
15
COLD
TEMPERATURE-
PRESSURE
RELIEF VALVE
CONDUIT
HOT COLD
Installation Checklist
1. Whether or not the element conversion is made, the
model rating plate must be marked. Using a hard
point ink pen, check the appropriate block within the
model rating plate, which is located adjacent to the
lower access panel.
2. Is the fuse or circuit breaker size correct as shown in
the chart in the “Product Specifications” section?
3. Are the wires from the circuit breaker or fuse service to
the water heater’s junction box on the correct wire size
(gauge) as shown in the chart in the “Product
Specifications” section?
4. Is the new temperature-pressure relief valve properly
installed, and piped to an adequate drain? See
“Temperature-Pressure Relief Valve” in the
“Instructions for Installation” section.
5. Is the water heater completely filled with water? See
“Filling the Water Heater” instructions in the
“Instructions for Installation” section.
6. Will a water leak damage anything? See “Locating
the New Water Heater” in the “Instructions for
Installation” section.
7. Are the cold and hot water lines connected to the water
heater correctly? See “Water Piping” instructions in the
“Instructions for Installation” section.
8. Is there adequate clearance for maintenance around
the water heater?
9. Do you need to call your electric company to check
your wiring?
Instructions for Installation (cont’d)
