ODGR Series Outdoor Gas Fireplace
92D0001
Remote Wall Switch
NOTE: Use an approved outdoor switch.
1. Thread wire through the low voltage wire access hole
located on either side of unit. Do not cut wire or insu-
lation on metal edges. Ensure that wire is protected.
Run the other end to a conveniently located wall
receptacle box.
2. Attach wire to switch and install switch into receptacle
box. Attach cover plate to switch.
3. Connect wiring to gas valve. Refer to Figure 11.
CAUTION: Do not wire millivolt remote
wall switch for gas appliance to a 120v
power supply.
For lighting instructions, refer to Page 12.
NOTE: If glass doors are installed, the unit must be
operated with the doors fully open. (Fig. 12) If the
doors are not fully open, the thermodisk will auto-
matically turn the unit off.
CAUTION: After the unit cools, the burner
will automatically come on.
MD706-7
Glass Door Position
1/20/99
OPEN
Correct Wrong MD706-7

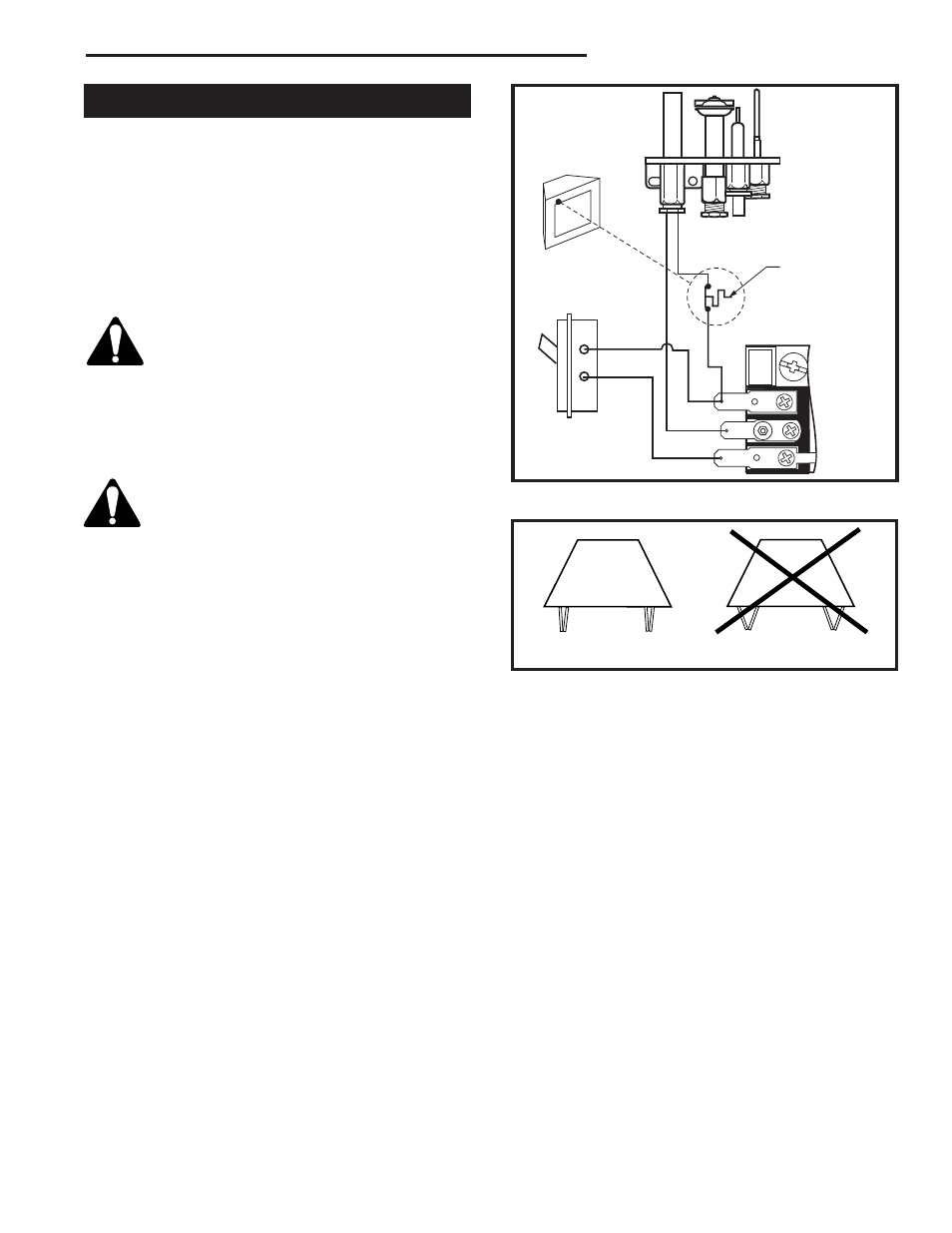

Fig. 12 Correct door position during operation.
Pilot
Thermodisk
On/Off
Switch
Valve
HV105
Fig. 11 Remote switch wiring.
HV105
Generic Gas Valve
9/22/99 djt
TPTH
TH
TP
