12
ODGR Series Outdoor Gas Fireplace
92D0001

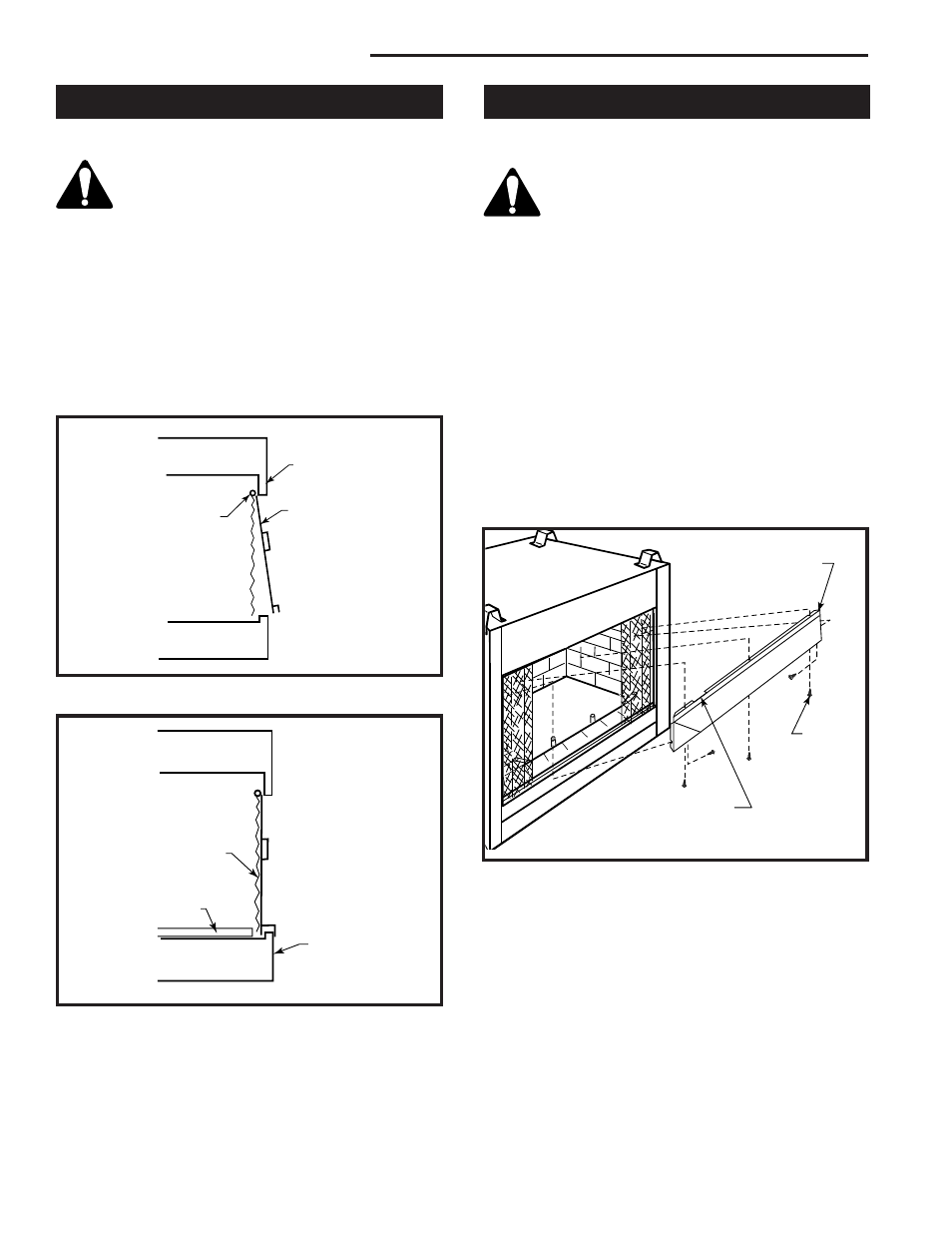

Optional Weather Enclosure
An optional weather enclosure is available to protect
the burner when not in use.
CAUTION: Do not use the weather enclosure
if the unit has glass doors installed.
Installation Instructions
1. Turn the unit OFF and allow to cool.
2. Grab the weather enclosure by the handle(s).
3. Slide the top of the weather enclosure up between
the back of the surround top and the screen rail.
(Fig. 19)
4. Push the bottom of the weather enclosure into the
firebox just enough to clear the valve access cover
and set down. (Fig. 20)
KT457
place we top
4/1/04 djt
KT457
Fig. 19 Place top of weather enclosure between surround top
and screen rail.
Surround Top
Weather Enclosure
Screen Rail
KT458
place we bottom
4/1/04 djt
Screen
Hearth Brick
Valve Access Cover
KT458
Fig. 20 Push bottom of weather enclosure into firebox.
Optional Stainless Steel Hood
An optional stainless steel hood is available for both the
ODGR400 and ODGR500.
NOTE: The stainless steel hood may NOT
be used when the optional glass doors are
installed.
Installation Instructions:
1. Turn the unit off and allow to cool.
2. Place the hood so the 2B⁄," (67 mm) slot clears the
sensor plate located under the fireplace opening on
the top left side. (Fig. 21)
3. Secure the hood to the unit using the three (3) slots
in the hood and the pilot holes in the unit with the
stainless steel sheet metal screws provided. (Fig.
21)
4. Align the sides of the hood so the pilot holes on the
right and left sides of the unit are exposed through
the slots on the ends of the hood. Secure using the
remaining stainless steel sheet metal screws. (Fig.
21)
&0
/$'32
Stainless
Steel Hood
Stainless
Steel Sheet
Metal Screws
(5)
Sensor Plate Slot
FP1635
Fig. 21 Secure stainless steel hood with five (5) sheet metal
screws.
