11
ODGR Series Outdoor Gas Fireplace
92D0001
LG320
ODUVSR42
log flames
11/24/03 djt
LG320

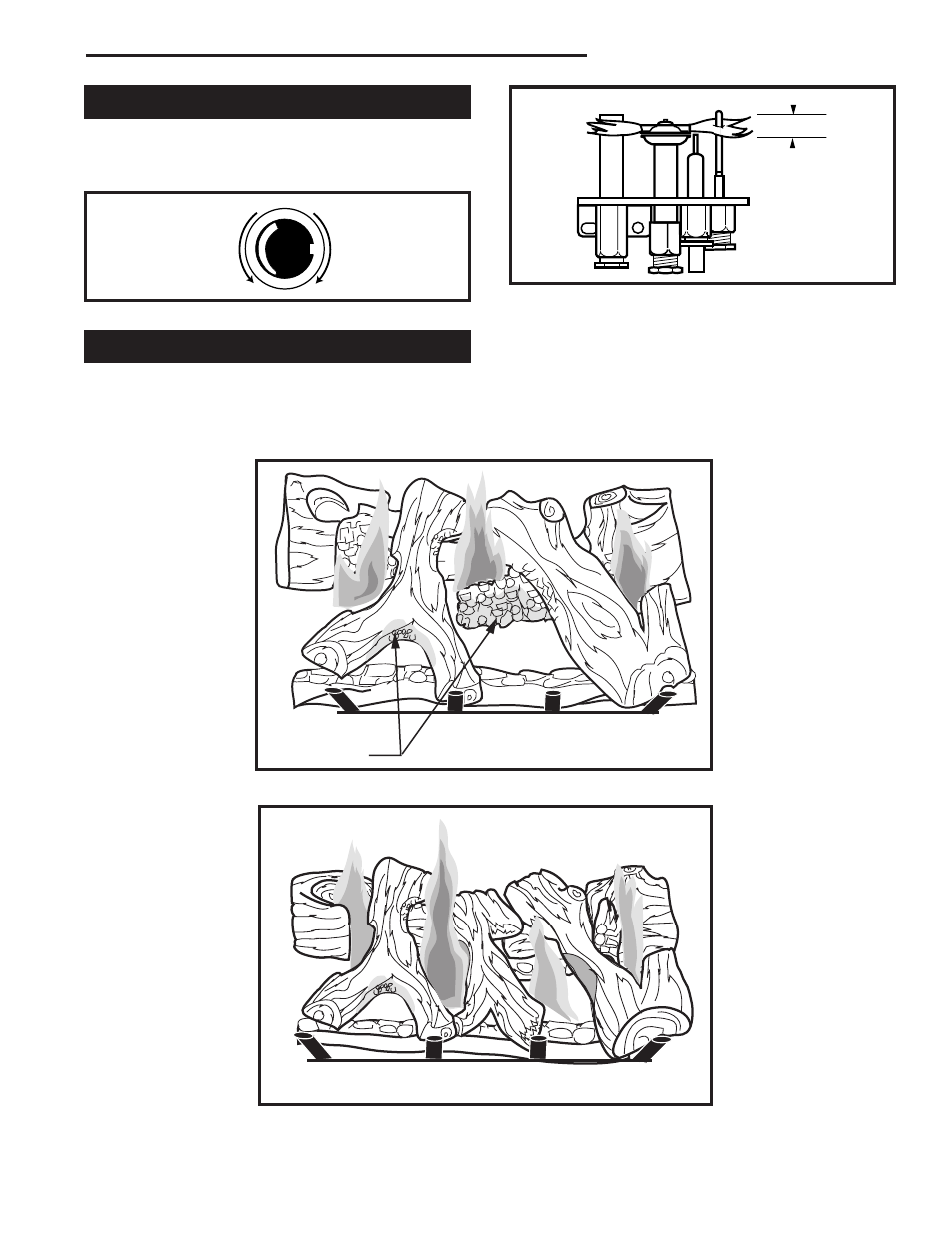

Fig. 18 ODGR500 flame appearance.
Fig. 16 Proper pilot flame height.
FP581
3/8"-1/2"
FP581
NVB-PILOTS
12/4/97
ELECTRONIC
IGNITION
NOVA SIT Pilot
LG319
ODUVSR36
log flames
11/24/03 djt
Red Glow
LG319
Fig. 17 ODGR400 flame appearance.
Flame Adjustment
For units equipped with Hi/Lo valves, flame adjustment
is accomplished by rotating the Hi/Lo adjustment knob
located near the center of the gas control.
LO
HI
Turn
counterclockwise
to increase
flame height
Turn clockwise
to lower
flame height
FP390
FLAME ADJUSTMENT KNOB
11/21/96
Fig. 15 Flame adjustment knob for SIT820 valve.
Flame Characteristics
It is important to periodically perform a visual check of
the pilot and the burner flames. Compare them to the il-
lustrations below (Figs. 16, 17, 18). If any of the flames
appear abnormal call a service person.
