2. TV Connections 17

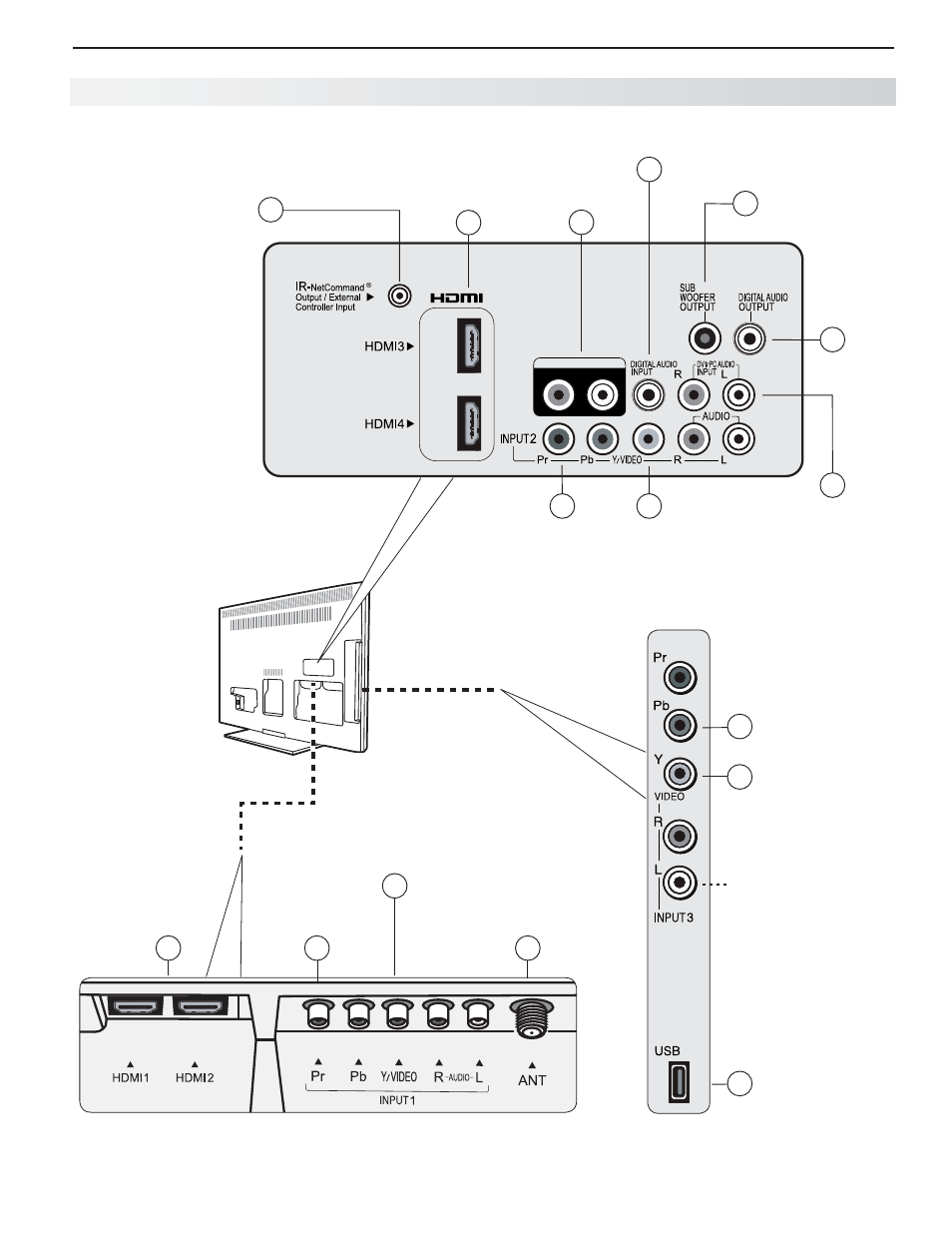

Inputs and Outputs
1 3
4
2
HDMI
(page 19)
DIGITAL
AUDIO
OUTPUT
(page 22)
SUBWOOFER
OUTPUT
(page 23)
IR – NetCommand Output/
External Controller Input
153 series
NetCommand, page 53
External Controller Input,
page 18
VIDEO
(composite video,
page 21)
VIDEO
(composite video,
page 21; with an audio-
only device, page 23)
Y Pb Pr
(component video,
page 19)
Y Pb Pr
(component video,
page 19)
ANT
(page 20)
USB
(page 30)
VIDEO
(composite video,
page 21) Y Pb Pr
(component
video, page 19)
AVR AUDIO OUTPUT
R L
Connector Panels
2
HDMI
(pages 19, 22)
9
DVI/PC AUDIO
INPUT
(page 20)
AVR AUDIO
OUTPUT
(page 22)
DIGITAL AUDIO
INPUT
(page 19)
5
6
8
10
3 4
7
3
4
11
Calibration
Microphone Input
153 series
(page 35)
