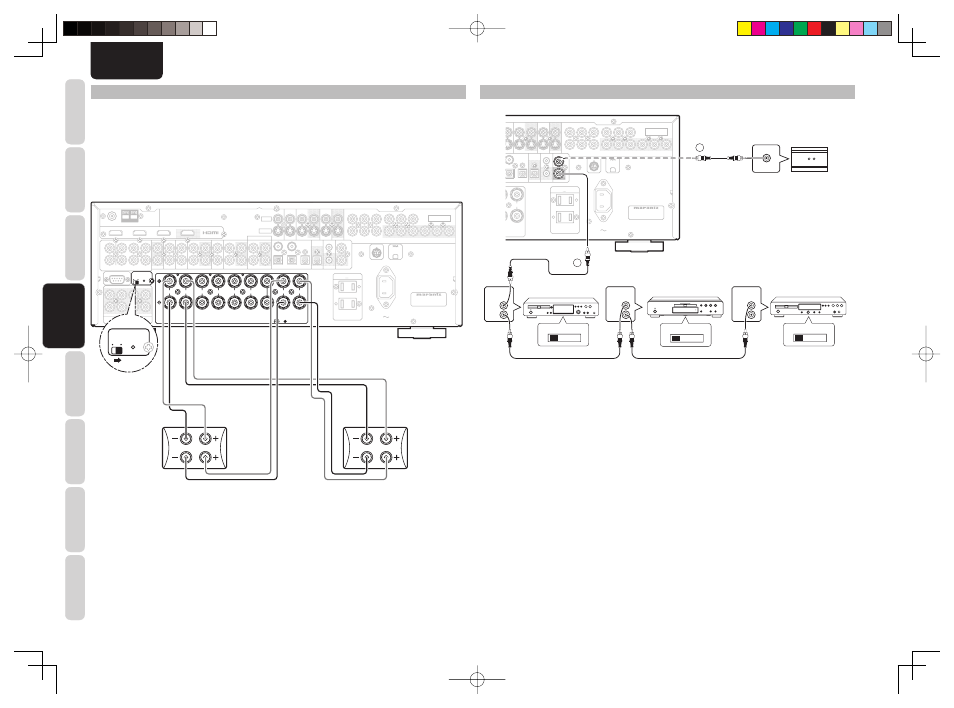

CONNECTING THE REMOTE CONTROL JACKS
DVD player CD recorder
q
You can control other Marantz products through this
unit with the remote controller by connecting the
REMOTE CONTROL terminals on each unit.
The signal transmitted from the remote controller
is received by the remote sensor on this unit. Then
the signal is sent to the connected device through
this terminal. Therefore you need to aim the remote
control only at the unit. Also, if a Marantz power
amplifi er (some models excluded) is connected to
one of these terminals, the power amplifi er’s, power
switch is synchronized with this unit’s power switch.
Set the REMOTE CONTROL SWITCH on the back of
other units (not the SR5003) to “EXT.” (EXTERNAL)
to use this feature.
CD player
OPTION
w
Whenever external infrared sensors or similar devices
are connected to RC-5 IN of the unit, be sure to
always disable operation of the infrared sensor on the
unit by using the following procedure.
1. Hold down the SURROUND MODE button
and the MENU button on the front panel at the
same time for fi ve seconds.
2. The setting “IR=ENABLE” is shown on the FL
DISPLAY.
3. Press the CURSOR buttons ( 1, 2) to change
this to “IR=DISABLE”.
4. Press the ENTER button. Once this setting
is made, the infrared sensor on the unit is
disabled.
Note:
• Be sure to set to “IR=ENABLE” when external
infrared sensors or similar devices are not connected.
Otherwise, the unit will be unable to receive remote
control commands.
5. To restore the original setting, perform steps 1
to 4 to set to “IR=ENABLE”.
Note:
• You can use surround back speaker terminals as ZONE SPEAKER A. terminals or SPEAKER C terminal when you
are not using surround back speakers.
CONNECTING FOR SPEAKER C USE (BI-AMP CONNECTION)
A bi-amp connection is possible with speakers that have two sets of inputs (for treble and bass).
This allows you to drive the treble and bass units with separate channel amps, which enables better sound
quality. Connect the speakers as shown in the fi gure. Set the SPEAKER C selector switch on the rear panel
to ON.
Notes:
• If incorrectly connected, a protective circuit in the unit will trip and set the unit to standby. (The STANDBY
indicator will fl ash.) In such case, recheck the connections between the speakers and the unit.
• Turn power to the unit off before changing the setting of the SPEAKER C selector switch.
