Applications
Remote Access. Give your telecommuters and road warriors
access to the central site LAN and the Internet with the
CC1600-Series rackmountable card cage.
Dial-Out Services. In addition to dial-in services, the CC1600-
Series rack can also provide dial-out Internet access to LAN
users. This eliminates the cost and hassle of installing and
maintaining modems and phone lines for every desktop.
Fax Services. The CC1600-Series rack is an ideal solution for
dedicated fax servers. The easily installed, reliable modems
provide fax send and receive capabilities in one small rack.
System Architecture
Cost-Effective. The CC1600-Series rack conserves back
office space and minimizes administration expenses by
consolidating up to 16 modems in one standard equipment
rack using a single power outlet.
Scalable. Scaling dial-in/dial-out services through the CC1600-
Series rack is easy and cost-effective. Select the number of
modem cards to meet today’s networking needs. As demand
grows simply add more cards to your system and preserve
your initial investment.

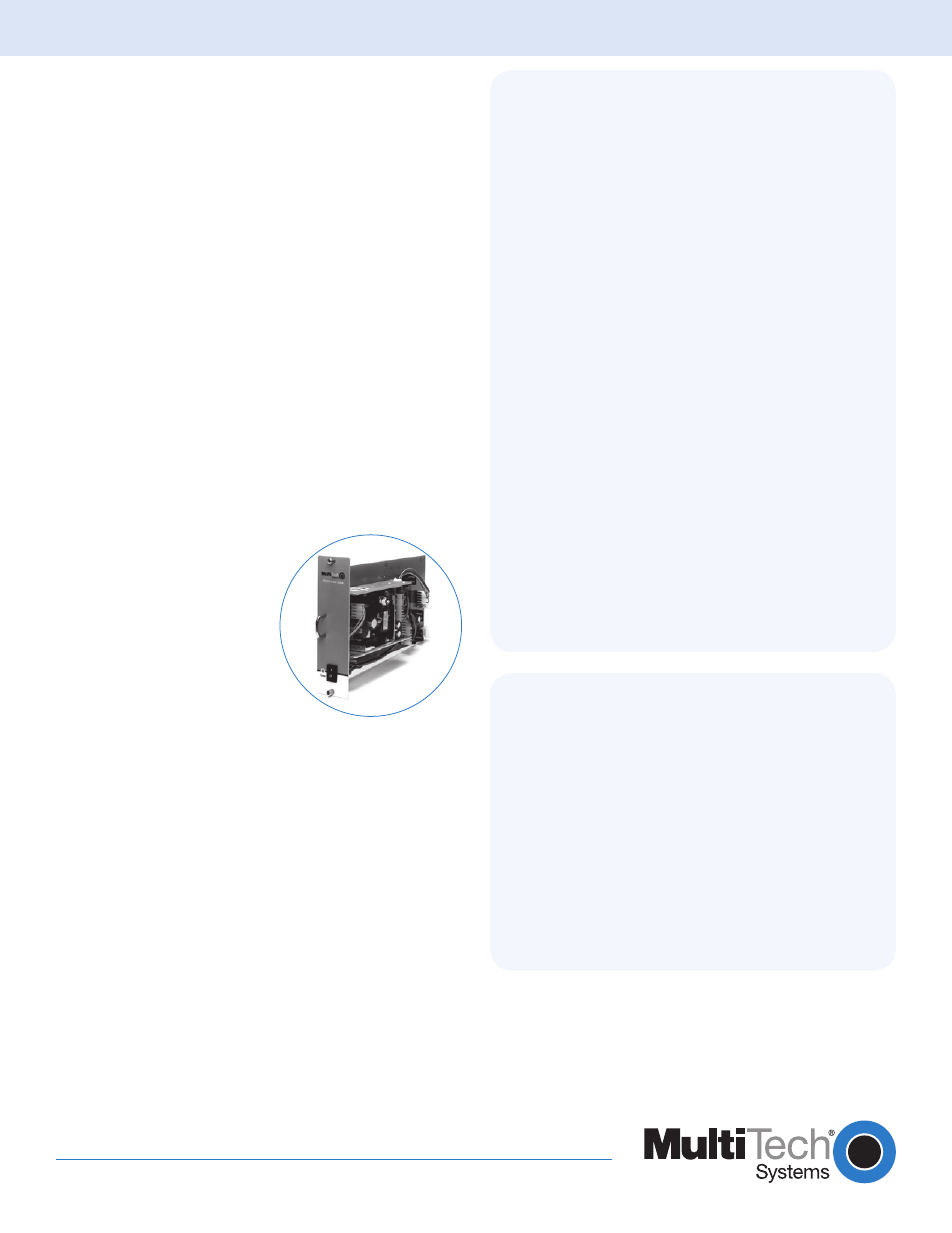

Serviceability. The CC1600-Series
rack provides the option for
dual-redundant power supplies
that are hot-swappable. In
addition, individual modem
cards are hot-swappable so
a card can be installed or
removed without interrupting
service to the other cards on the
system.
Diagnostics. The power-on self-test,
local analog loop, local digital loop, and remote digital loop
diagnostics provide valuable information on the CC1600-
Series rack.
Fully Tested and Supported. All CC1600-Series rack
components are fully tested and supported by Multi-Tech
so there is only one place to call when you need technical
support.
Comprehensive Service and Support. The Multi-Tech
commitment to service means we provide a two-year product
warranty and service that includes free telephone technical
support, 24-hour web site and ftp support.
Ordering Information
Product Description Region
Card Cage
CC1600-11L
RJ-11 Chassis (Dial-Up) US/Can
CC1600-11L-EURO/INTL RJ-11 Chassis (Dial-Up) Euro/ROW
Power Supply
PS1600*
90-245v AC Power Supply Global
Modem Card
MT5600BR-V92
56K Rack Modem US/Euro
Specifications
Card Cage
Description: Metal construction with vent holes, built-
in mounting brackets, & connections for power, data
ports, & phone line or digital service
Power Supply: 70W fully loaded; 5VDC & ±15VDC
regulated
Cooling Fan: 1
Connectors: One 3-prong grounded receptacle, 16 DB25
data ports, & 16 RJ-11 jacks
Physical Description
19" w × 7" h × 15" d
(48 cm × 18 cm × 38 cm)
Weight: 21 lbs. with 1 power supply (9.6 kg)
Operating Temp: +32° to +120° F (0 to +50° C)
Modem Cards
Rates
Data: V.92/56K downloads & 48K upload speeds from
V.92 servers; V.90/56K downloads from V.90 servers,
33.6K bps transfers with other servers
Fax: 14.4K & below
Error Correction: V.42
Data Compression: V.44, V.42bis, MNP
® Class 5
Fax Standards: V.17, Group 3; Class 1 & Class 2
DTE Interface: RS-232C/D
Physical Description
10.5" w × 5.5" h × 0.9" d; 1.5 lbs.
(26.7 cm × 14.0 cm × 2.2 cm; 0.68 kg)
Operating Temp: +32° to +120° F (0 to +50° C)
Copyright © 2006 by Multi-Tech Systems, Inc. All rights reserved. 7/06 86000316
* Specify North American, European, or British-style power cord and voltage
when ordering the PS1600. Power supplies are sold separately from rackmount
chassis.
