NumaLink-3.0™ Users Guide and Service Manual
Page 4 of 33
2. Installation and Getting Started
2.1 Hardware
Your NumaLink-3.0 system hardware should be installed by an authorized service engineer. Please
contact Numa for more information.
Typical hardware for a NumaLink-3.0 system is shown in Figure 1.

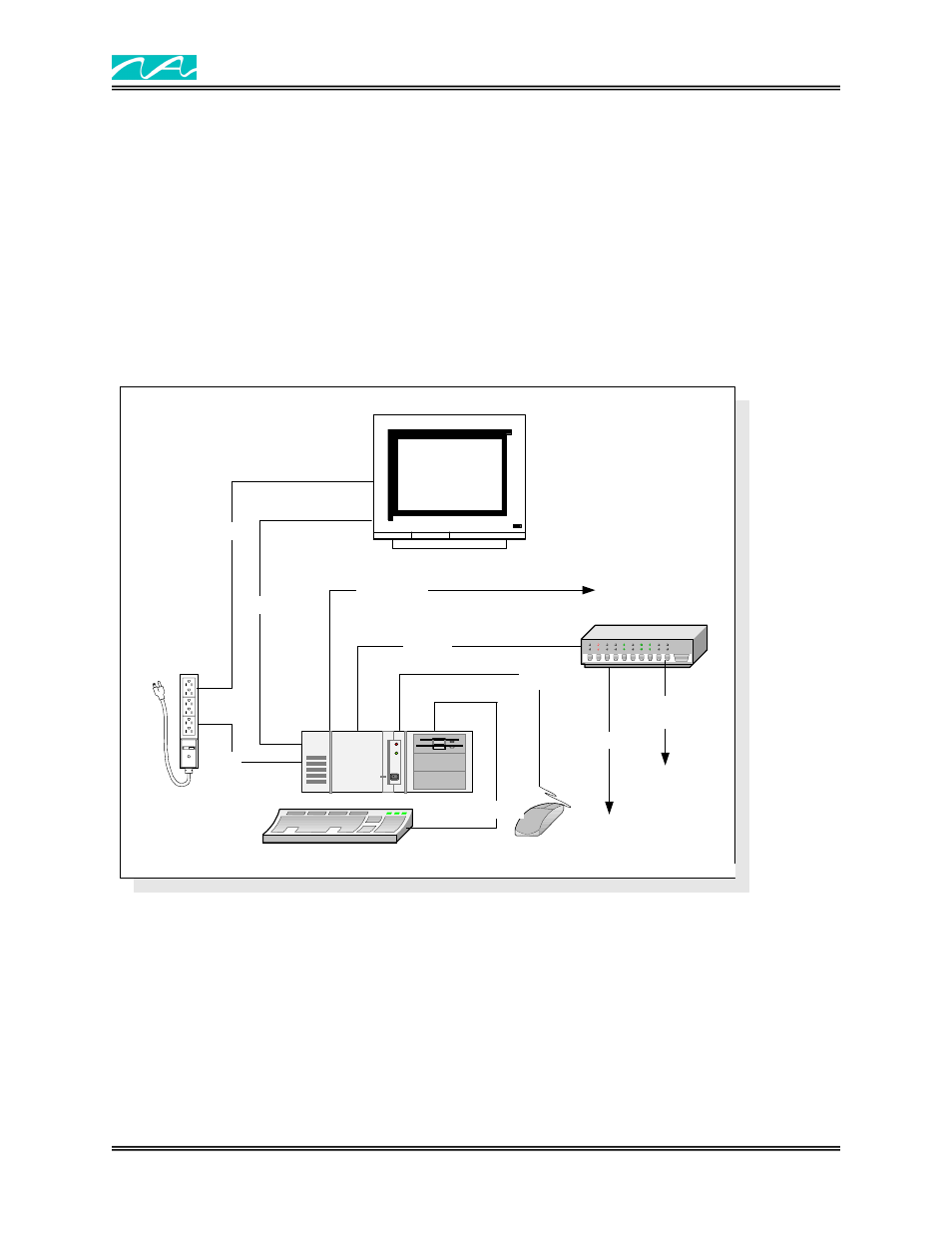

Figure 1 – NumaLink-3.0 Hardware Configuration
NL_UserMan_004
Keyboard
Mouse
Hub
Monitor
ACPower strip
AC
AC
Keyboard
Mouse
Network
Modem Line
To analog telephone
outlet
To Source System
To Destination
System
Video
2.1.1 Cabling
Refer to Figure 1:
1. Make sure that the AC power cable is plugged into the power outlet of the computer. This is a three-
pronged slot, often located in the rear corner of the system.
