HORIZONTAL (THROUGH-THE-WALL) TERMI-
NATION CONFIGURATION (continued)
•
If a 90° elbow is used in the horizontal vent run (level height
maintained) the horizontal vent length is reduced by 36".
Figure 23. This does not apply if the 90° elbows are used to
increase or redirect a vertical rise. Figure 22
Example: According to the vent graph (Page 17) the maximum
horizontal vent length in a system with a 7.5' vertical rise is 20’
(6 m) and if a 90° elbow is required in the horizontal vent it must
be reduced to 17' (5.2 m).
In Figures 22 and 23 dimension A plus B must not be greater
than 17' (5. m).
• The maximum number of 45° elbows permitted per side wall
installation is two (). These elbows can be installed in either
the vertical or horizontal run.
• For each 45° elbow installed in the horizontal run, the length
of the horizontal run MUST be reduced by 18" (457 mm).
This does not apply if the 45° elbows are installed on the
vertical part of the vent system.
• The maximum number of elbow degrees in a system is 70°.
Figure 24

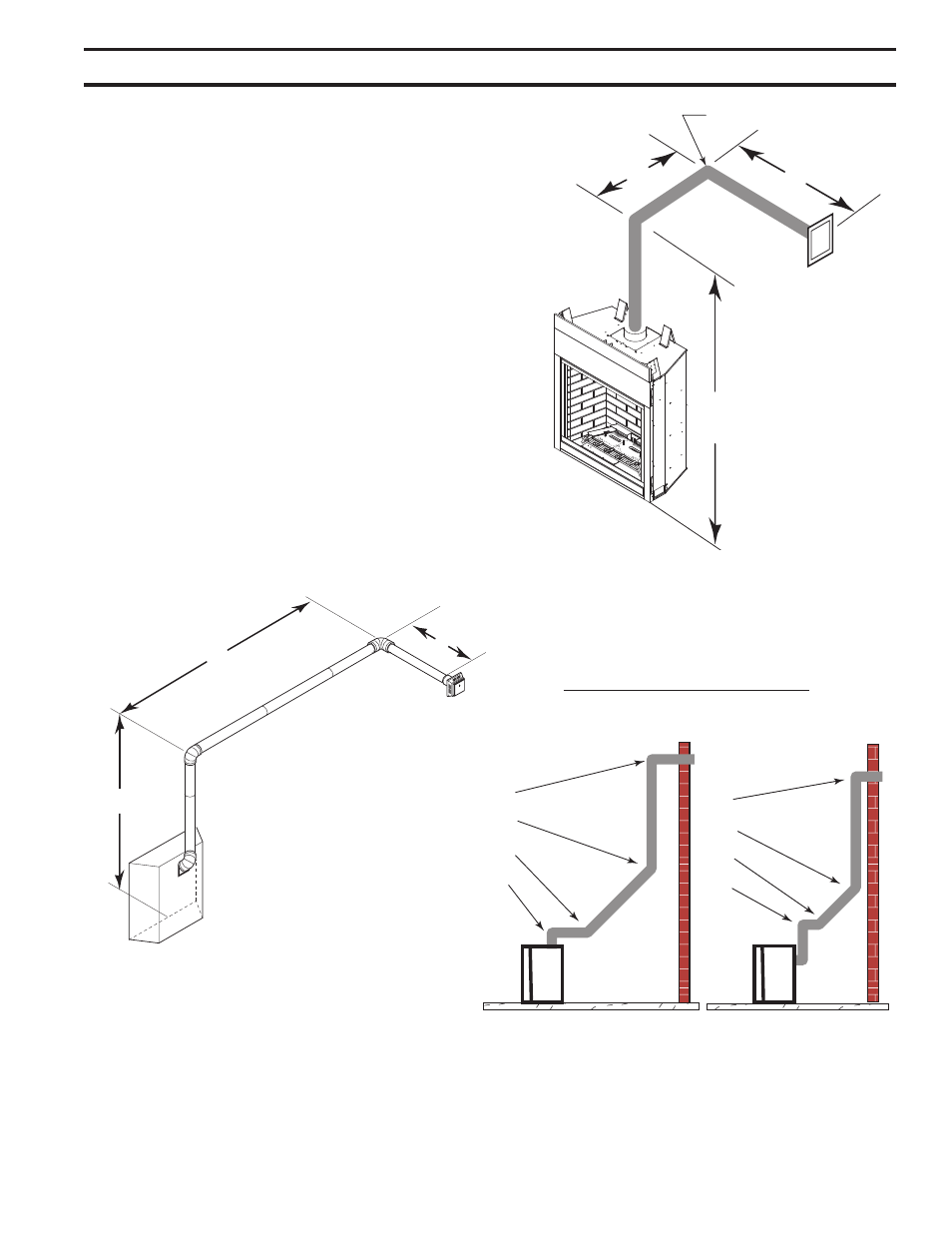

VENTING INSTALLATION
Figure 23 -
Maximum Vent Run with Elbows
FP1959
A + B = 17' Maximum
Horizontal 90° Elbow = 3' Reduction
7'6"
10'
7' A
B
FP1958
Horizontal run reduction
Figure 22 -
Horizontal Run Reduction
90°
7'6"
A B
FP1958
Example: Elbow 1 = 90°
Elbow = 45°
Elbow 3 = 45°
Elbow 4 = 90°
Total Angular Variation = 70°
Figure 24 -
Maximum Elbow Usage
1 + + 3 + 4 = 70°
