Vent installation – Monessen Hearth Direct Vent Gas Fireplace KHLDV SERIES User Manual
Page 20

20
73D0024
40' Maximum Height
12' Minimum Height
10'
Maximum
Support Straps
Every 3'
24" Min.
24" Min.
VERTICAL (THROUGH-THE-ROOF)
APPLICATIONS
This gas fireplace has been approved for,
• Vertical installations up to 40' (12m) in height. Up to a 10'
(3m) horizontal vent run can be installed within the vent
system using a maximum of two 90° elbows. See Figure
18.

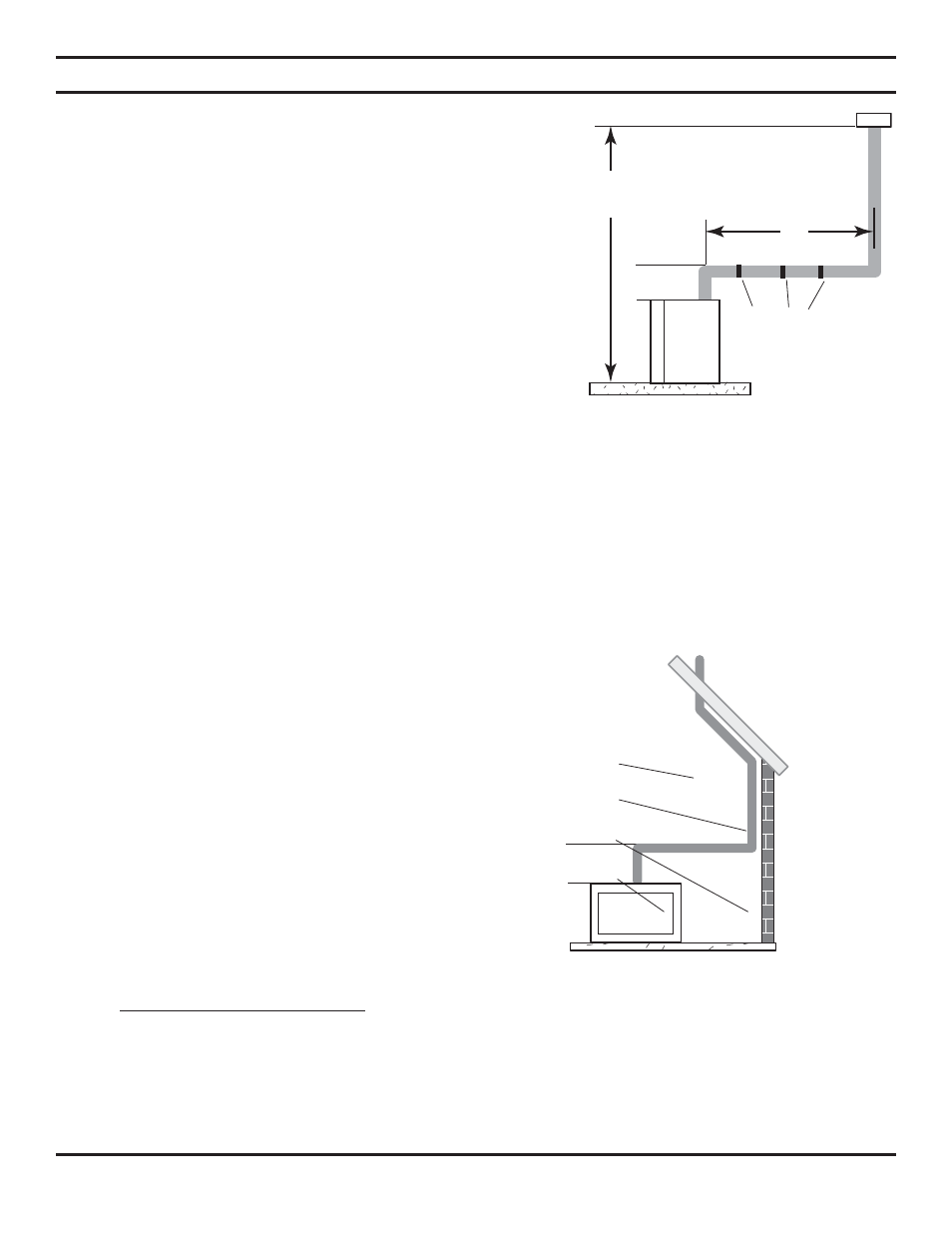

Figure 18 - Support Straps for
Horizontal Runs
VENT INSTALLATION
Figure 19 - Maximum Elbow Usage
• Up to two 45° elbows may be used within the horizontal
run. For each 45° elbow used on the horizontal plane,
the maximum horizontal length must be reduced by 18"
(450mm).
Example: Maximum horizontal length
No elbows = 10’ (3m)
1x45° elbows = 8.5’ (2.6m)
2x45° elbows = 7’ (2.1m)
• A minimum of an 8' (2.5m) vertical rise is required.
• Two sets of 45°elbows offsets may be used within the
vertical sections. From 0 to a maximum of 8' (2.5 m) of
vent pipe can be used between elbows. See Figure 19.
• The maximum angular variation allowed in the system is
270°. See Figure 19.
• The minimum height of the vent above the highest point
of penetration through the roof is 2' (610mm).
1
2
3
4
Example:
Elbow 1 = 90°
Elbow 2 = 45°
Elbow 3 = 45°
Elbow 4 = 90°
Total Angular Variation = 270°
NOTE: Horizontal sections of this vent system require
a minimum of 3" clearances to combustibles at the top
of the fl ue and 1" clearance at the sides and bottom
until the fl ue penetrates the outside wall. A minimum
1" clearance all around the fl ue is acceptable at this
point of penetration.
Vertical sections of this vent system require a
minimum of 1" clearance to combustibles on all sides
of the pipe.
