Manitowoc Ice K00195 User Manual
Manitowoc Ice Freezers
K00195
IB0820/1020 ON 22” S-SERIES BINS (S-320/420)
Installation Instructions
1. Set adapter on top of the bin. Be sure to position the adapter with the backside flange tight to bin.
2. Using the slotted holes in the adapter as a template, drill two (2) 9/64” diameter holes at the bottom of the slots.
NOTE: Do not drill deeper than 1/4” past the sheet metal. Use a drill stop!
3. Fasten adapter to dispenser using the two (2) #8 screws supplied with the adapter kit.

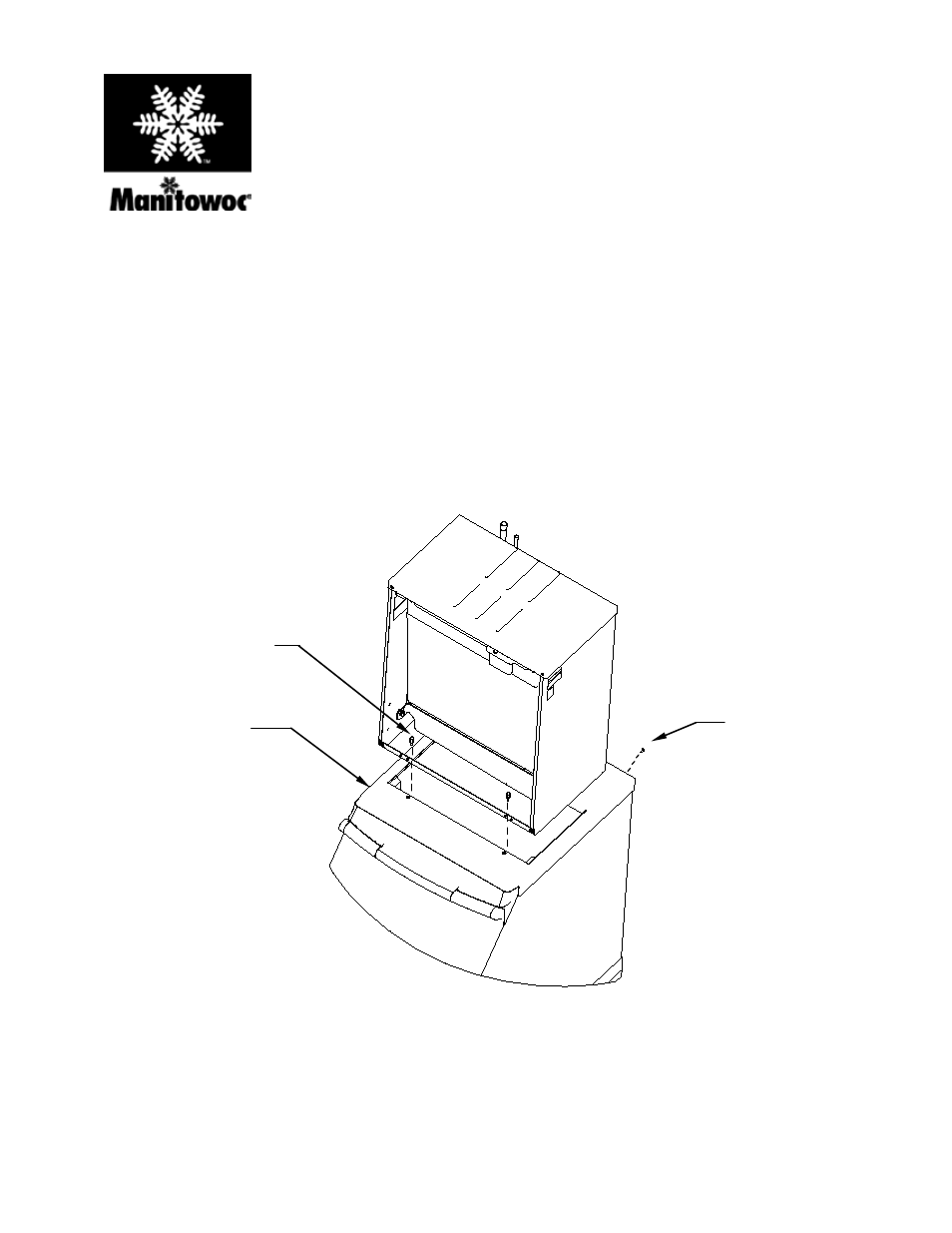

4. Set the ice machine on top of the adapter. Align holes in ice machine front angle with the rivnuts on the adapter.
5. Secure the ice machine to the adapter with two (2) #8-32 thumbscrews supplied with the ice machine.
Manitowoc 22”
S-Series Bin
#8-32 Thumbscrew
Two (2) Places
Adapter
#8 Screw
Two (2) Places
