Modine Manufacturing BAE - Manual (Page 12)

Standard Model Number
PAE 30 PAE 50 PAE 75 PAE 100 PAE 125 PAE 145 PAE 175 PAE 200 PAE 225 PAE 250 PAE 300 PAE 350 PAE 400
Btu/Hr. Input 30,000 50,000 75,000 100,000 125,000 145,000 175,000 200,000 225,000 250,000 300,000 350,000 400,000
Btu/Hr. Output 24,300 40,000 60,000 80,000 100,000 116,000 140,000 160,000 180,000 200,000 240,000 280,000 320,000
Entering CFM 440 740 1130 1440 1850 2400 2500 3000 3300 4100 4400 5000 5900
Outlet Velocity 515 495 664 616 789 893 713 852 832 1024 960 1094 1094
Air Temp. Rise °F 51 50 49 51 50 46 52 49 51 45 51 52 50
Mounting Hgt. 7 8 11 10 13 17 13 16 15 20 18 20 21
(Max. Ft.) ①
Heat Throw Ft. ① 25 27 39 36 47 59 45 55 54 72 64 71 74
Horsepower 1/40 1/40 1/30 1/30 1/15 1/6 1/6 1/6 1/6 1/3 1/3 3/4 3/4
Amp Draw 1.3 1.3 2.3 2.3 2.7 3.1 3.1 3.1 3.1 5.7 5.7 9.1 9.1
RPM 1550 1550 1050 1050 1050 1075 1075 1075 1075 1075 1075 1140 1140
Type Shaded Shaded Shaded Shaded Shaded Perm. Perm. Perm. Perm. Perm. Perm. Perm. Perm.
Pole Pole Pole Pole Pole Split Cap. Split Cap. Split Cap. Split Cap. Split Cap. Split Cap. Split Cap. Split Cap.
12

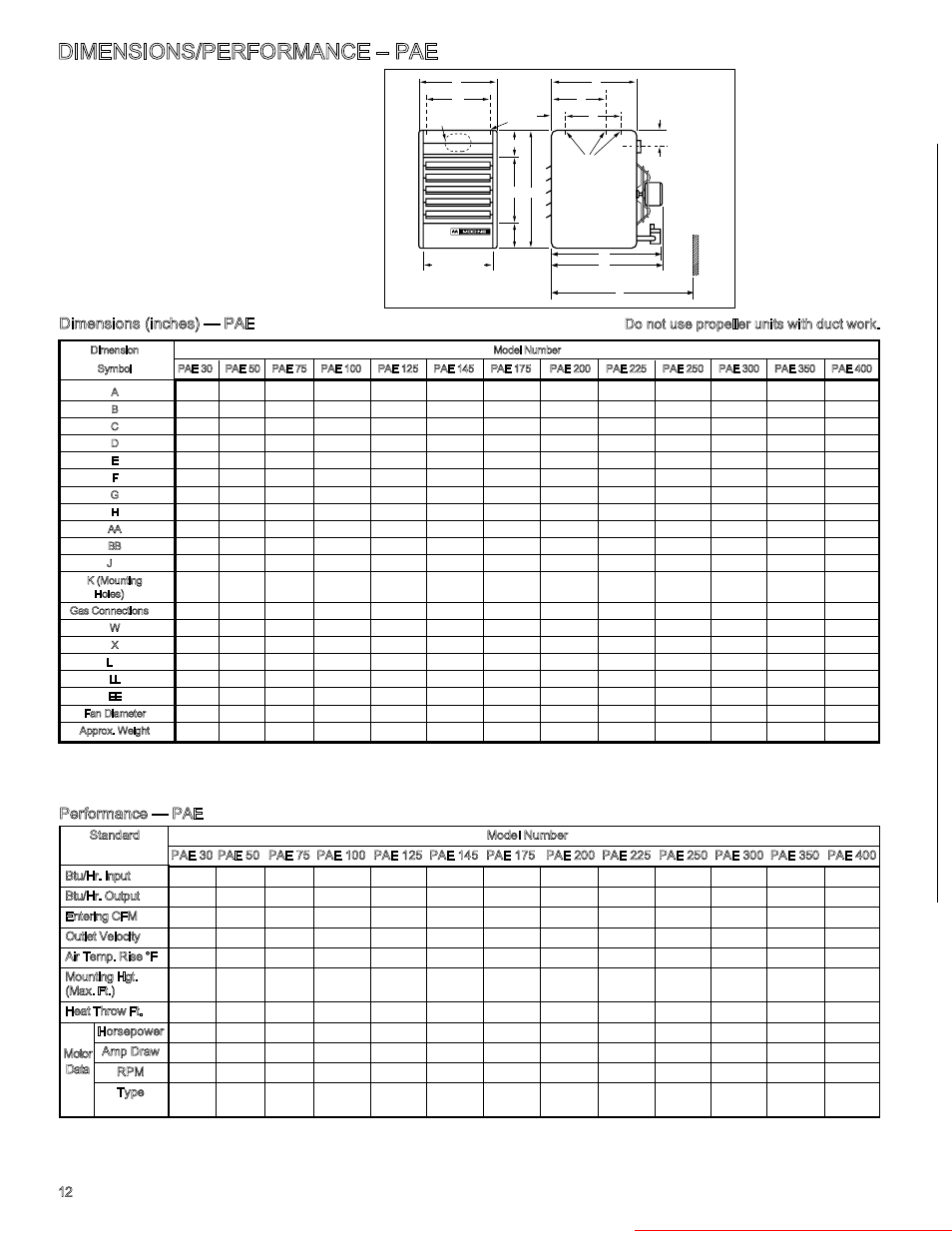

DIMENSIONS/PERFORMANCE – PAE
A
H
D (OPENING)
BB
E
AA
B
K
W X
F
C
K
G
L - Approx
MIN. DISTANCE
TO WALL IS L + 6"
J VENT PIPE
EE
(MIN. DISTANCE TO WALL)
L
LL
For all sizes, minimum clearance to com-bustibles
from the bottom is 12 inches and from the sides 18
inches; for sizes 30-100 from the top is 1 inch and
from the vent con-nector 2 inches; for sizes 125-
300 from the top is 2 inches and from the vent
connector 3 inches; and for sizes 350 and 400 from
the top is 3 inches and from the vent connector 6
inches. Also, allow at least 12 inches at the rear, or
6 inches beyond the end of the motor (whichever is
greater), to provide ample air for combustion and
for proper operation of fan.
Clearance at bottom should equal “C” dimen-sion
for each model number.
Dimensions (inches) — PAE Do not use propeller units with duct work.
Performance — PAE
Motor
Data
➁
Dimension Model Number
Symbol PAE 30 PAE 50 PAE 75 PAE 100 PAE 125 PAE 145 PAE 175 PAE 200 PAE 225 PAE 250 PAE 300 PAE 350 PAE 400
A 12-7/8 17-1/4 19-1/4 21 21 23-1/2 25-5/8 25-5/8 28-5/8 28-5/8 33-5/8 33-5/8 40
B 24-1/4 28-3/4 28-3/4 35-1/4 35-1/4 35-1/4 40-1/4 40-1/4 40-1/4 40-1/4 40-1/4 40-1/4 40-1/4
C 14-3/4 20 20 22 22 22 25 25 25 25 25 25 25
D 10-7/16 14-13/16 16-13/16 18-9/16 18-9/16 21-1/16 23-3/16 23-3/16 26-3/16 26-3/16 31-3/16 31-3/16 37-1/2
E 13 16 16 20 20 20 24 24 24 24 24 24 24
F 8-7/8 11-1/2 11-1/2 12-1/2 12-1/2 12-1/2 14-1/2 14-1/2 14-1/2 14-1/2 – – –
G 1-7/8 2-5/8 2-5/8 3-3/8 3-3/8 3-3/8 4-1/8 4-1/8 4-1/8 4-1/8 4-1/4 4-1/4 4-1/4
H 9-1/4 13-5/8 15-5/8 17-3/8 17-3/8 19-7/8 22 22 25 25 30 30 36-3/8
AA 5 6-1/4 6-1/4 8 8 8 9 9 9 9 9 9 9
BB 6-1/2 6-1/2 6-1/2 7-1/4 7-1/4 7-1/4 7-1/4 7-1/4 7-1/4 7-1/4 7-1/4 7-1/4 7-1/4
J ① 4 4 5 6 6 7 7 8 8 8 9 10 10
K (Mounting 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-15 3/8-16 3/8-16
Holes) ➂
Gas Connections ➁ 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 3/4 3/4
W – – – – – – – – – – 5 5 5
X – – – – – – – – – – 16 16 16
L ➃ 28-1/4 35 35 37-1/2 37-1/2 38 41 41 43 43 44-3/8 44-3/8 48-1/2
LL 18-1/2 24 27 31-1/2 31-1/2 32 35 35 35 37 38-3/8 38-3/8 42-1/2
EE – 29 29 30-1/2 30-1/2 30-1/2 32-7/8 32-7/8 32-7/8 32-7/8 32-7/8 32-7/8 32-7/8
Fan Diameter 9 12 14 16 16 18 20 20 22 22 22 22 24
Approx. Weight 58# 102# 116# 156# 162# 169# 231# 231# 231# 261# 330# 330# 410#
Ratings shown are for elevations up to 2,000 ft. For elevations above 2,000 feet, ratings should be reduced at the rate of 4% for each 1,000 feet above sea level.
(In Canada see rating plate.)
① At 65°F ambient and unit fired at full-rated input. Mounting height as measured from bottom of unit, and without deflector hoods.
➁ All single phase motors are totally enclosed and thermal overload protected. Data listed is for standard 115-volt, 60 hertz, single-phase motors.
① Diameter of round vent pipe to fit oval opening.
➁ For natural gas; may vary depending on control availability.
➂ PAE 30 through PAE 250 — 2 holes (and the level hanging adjustment feature). PAE 300 through PAE 400 — 4 holes.
➃ Dimension equals overall plus 6".
