14 1. Additional TV Features
For assistance call 1(800) 332-2119

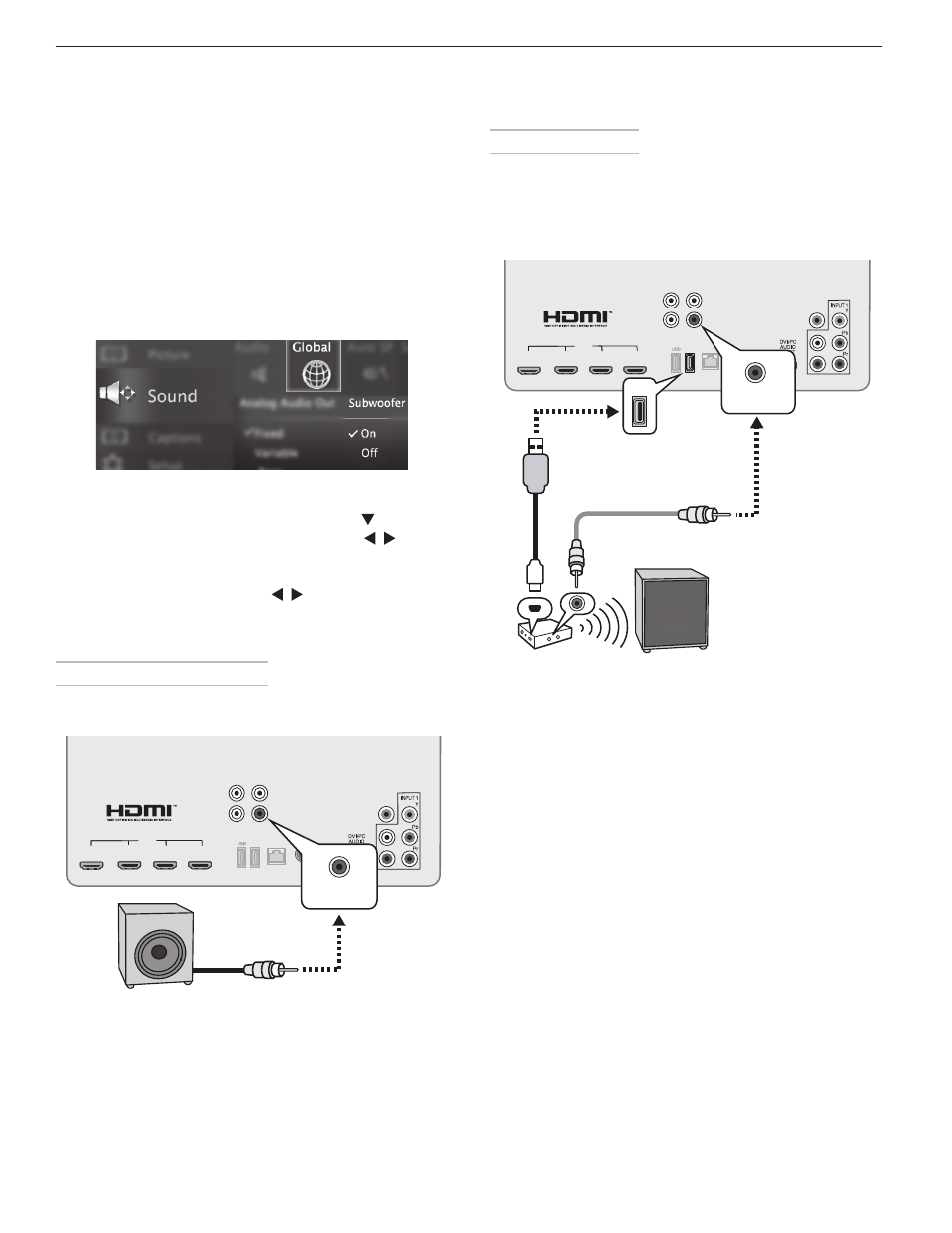

Supplemental Audio Connections (842 series)
Adding a Subwoofer
Add a subwoofer to complement the TV speakers with
a fuller bass sound.
• After connecting a subwoofer, you must enable the
TV’s subwoofer output in the TV’s Sound menu. Go
to Sound > Global > Subwoofer and set it to On.
• To control subwoofer volume
- Press the AUDIO key and then press to find
the subwoofer volume slider. Press to
change the volume.
- Open the Sound > Audio menu. Highlight
Subwoofer and press to adjust. Press
MENU to return to the Sound > Audio menu.
Subwoofer with Audio Cable
Connect the subwoofer directly to the TV’s
SUBWOOFER
OUTPUT.
3D
GLASSES
EMITTER
ANT
DIGITAL
AUDIO
OUTPUT
AUDIO/SURROUND
-OUTPUT- R L
LAN
CENTER
INPUT
SUB WOOFER
OUTPUT
USB-P
1 2 3 4
HDMI
L
R
SUB WOOFER
OUTPUT
Subwoofer with audio connection to TV.
Add a subwoofer to complement the TV’s speaker array
or use the TV’s speakers as a center channel for your
external sound system.
Wireless Subwoofer
Mitsubishi recommends Polk Audio Wireless Subwoofer
model PSW i8m. The transmitter module can be
conveniently powered from the TV’s USB power port.
Connect an audio cable to the transmitter to supply
audio from the TV’s
SUBWOOFER OUTPUT.
3D
GLASSES
EMITTER
ANT
DIGITAL
AUDIO
OUTPUT
AUDIO/SURROUND
-OUTPUT- R L
LAN
CENTER
INPUT
SUB WOOFER
OUTPUT
USB-P
1 2 3 4
HDMI
L
R
SUB WOOFER
OUTPUT
USB-P
USB/USB mini-plug
power cable
RCA audio cable
TV
Polk Audio PSW i8m
powered wireless
subwoofer
Setup to send audio signals wirelessly to the subwoofer.
