K00179
IB-0620/0820/1020
ON A CORNELIUS 30.00” WIDE ICE DISPENSER (ENDURO 200/250)
Installation Instructions
1. Set adapter on top of the dispenser. Be sure to position the adapter with the backside flange tight to the dispenser.
2. Using the slotted holes in the adapter as a template, drill four (4) 9/64” diameter holes at the bottom of the slots.
NOTE: Do not drill deeper than 1/4” past the sheet metal. Use a drill stop!
3. Fasten adapter to dispenser using the four (4) #8 screws supplied with the adapter kit.
4. Set the ice machine on top of the adapter. Align holes in ice machine front angle with the rivnuts on the adapter.
5. Secure the ice machine to the adapter with two (2) #8-32 thumbscrews supplied with the ice machine.
6. Set the front bin cover onto the dispenser. The back flange of the bin cover will latch onto the adapter.
7. Rotate retaining arms into position, as shown for normal ice machine operation.
Manitowoc Ice, Inc.
2110 South 26 th Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA
Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879 8005903
Web Site - www.manitowocice.com Rev. 07/08/03

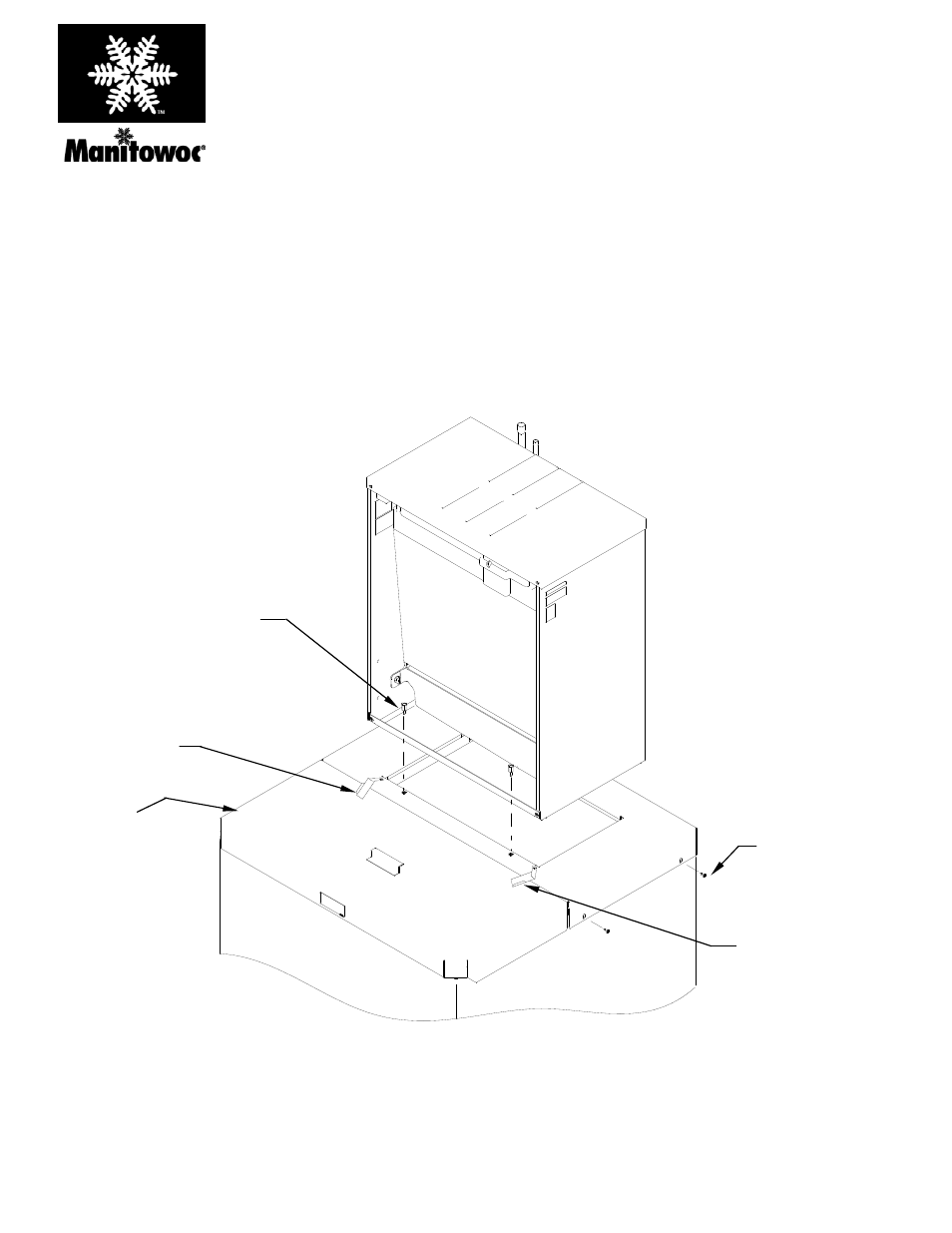

Cornelius ED200/250 Dispenser
#8-32 Thumbscrew
Two (2) Places
#8 Screw
4 Places
Bin Cover
RH Retaining Arm
LH Retaining Arm
