INSTALLATION SECTION 2
SECTION 2, INSTALLATION 2-5

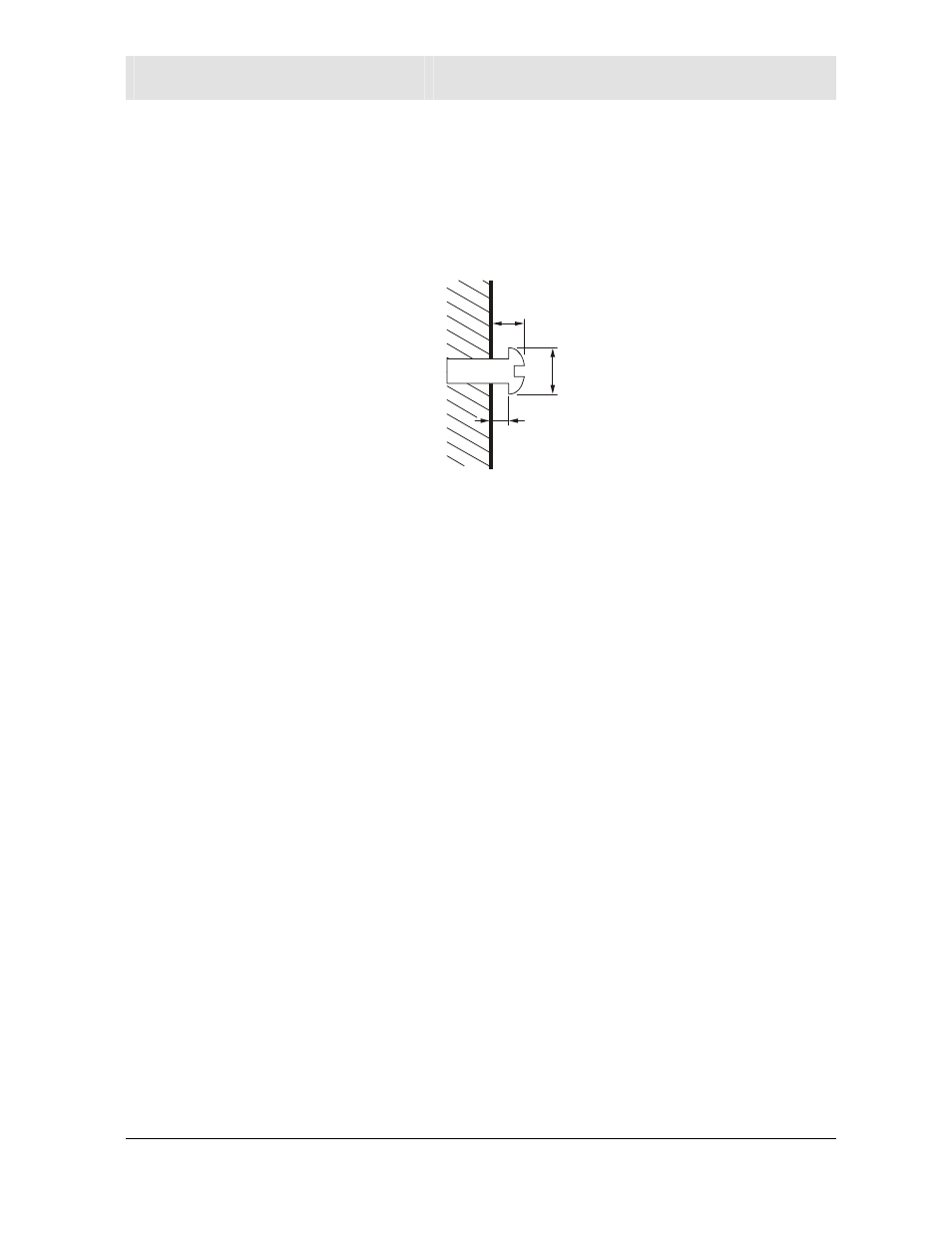

9 Using a screwdriver, turn each screw until part of it protrudes
from the wall, as shown:
! There must be 4.0 mm (.16 inches) between the wall and the
underside of the screw head.
! The maximum distance from the wall to the top of the screw
head is 7.6 mm (.3 in).
4.0 mm
10.5 mm (.4 inches)
maximum
7.6 mm (.3 inches)
maximum
10 Remove the two plastic feet, nearest to the LED panel, from the
bottom of the router to uncover the keyholes.
11 Place the router so the keyholes are above the mounting screws.
12 Slide the router down until it stops against the top of the keyhole
opening.
13 Follow the installation procedures for connecting and configuring
the unit.
