OM-217 Page 16

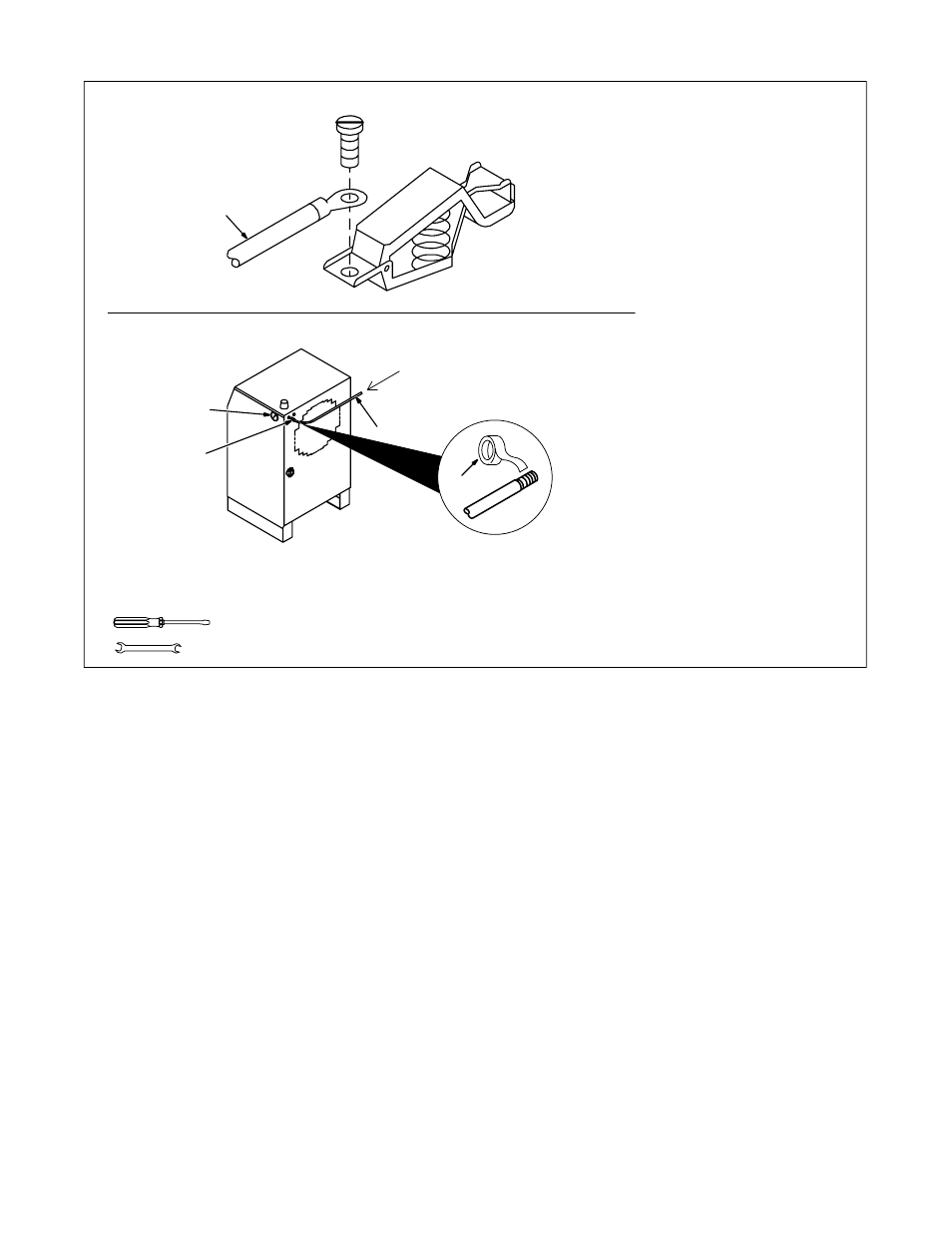

3-7. Connecting Work Clamp And Gas/Air Supply
ST-800 958 / ST-800 701 / S-0818
1 Work Cable
Connect work cable to supplied
clamp as shown.
Connect work clamp to a clean lo-
cation on workpiece, as close to
cutting area as possible.
.
Use only clean, dry air or nitro-
gen gas. Do not use any other
gas or combination of gases.
2 Air Filter/Regulator
3 Gas/Air Inlet Opening
4 Hose
5 Teflon Tape
Obtain hose with 5/8-18 right-hand
thread fitting. Wrap threads with
teflon tape, and install fitting in
opening.
Adjust gas/air pressure according
to Section 4-1.
Tools Needed:
5/8, 1-1/8 in
From Gas/Air Supply
1
3
2
4
5
