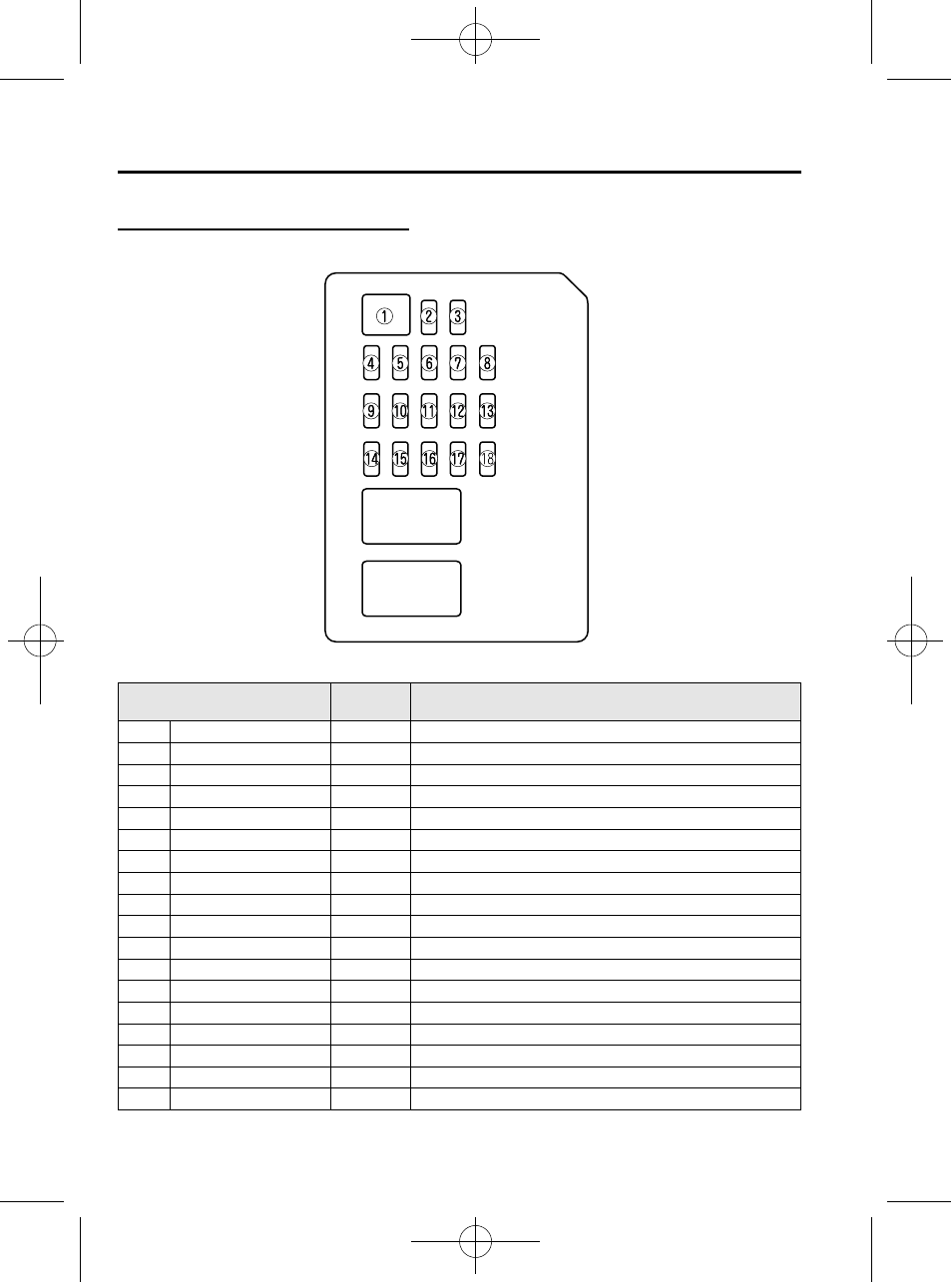

Fuse block (Driver's side kick-panel)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 P.WIND IG
― ―
2 P.WIND
― ―
3 D.LOCK 30A Power door lock
4 CIGAR 15A Lighter
5 MIRROR 5A Power control mirror, Audio system
6 METER ACC 5A Auto light off unit
7 R.CIGAR 15A Accessory socket
8 SPARE 10A
―
9 ENGINE IG 15A Engine control system
10 SAS 10A DSC unit, SAS unit
11 METER IG 15A Instrument cluster, Reverse lights
12 WIPER 20A Windshield wiper and washer
13 SPARE 15A
―
14 A/C 10A Heater
15 SEAT 15A Seat warmer
í
, Rear window defroster
16 R.WIP
― ―
17 ROOM 15A Overhead light
18 SPARE 20A ―
8-38
Maintenance and Care
í
Some models.
