qFuse Panel Description

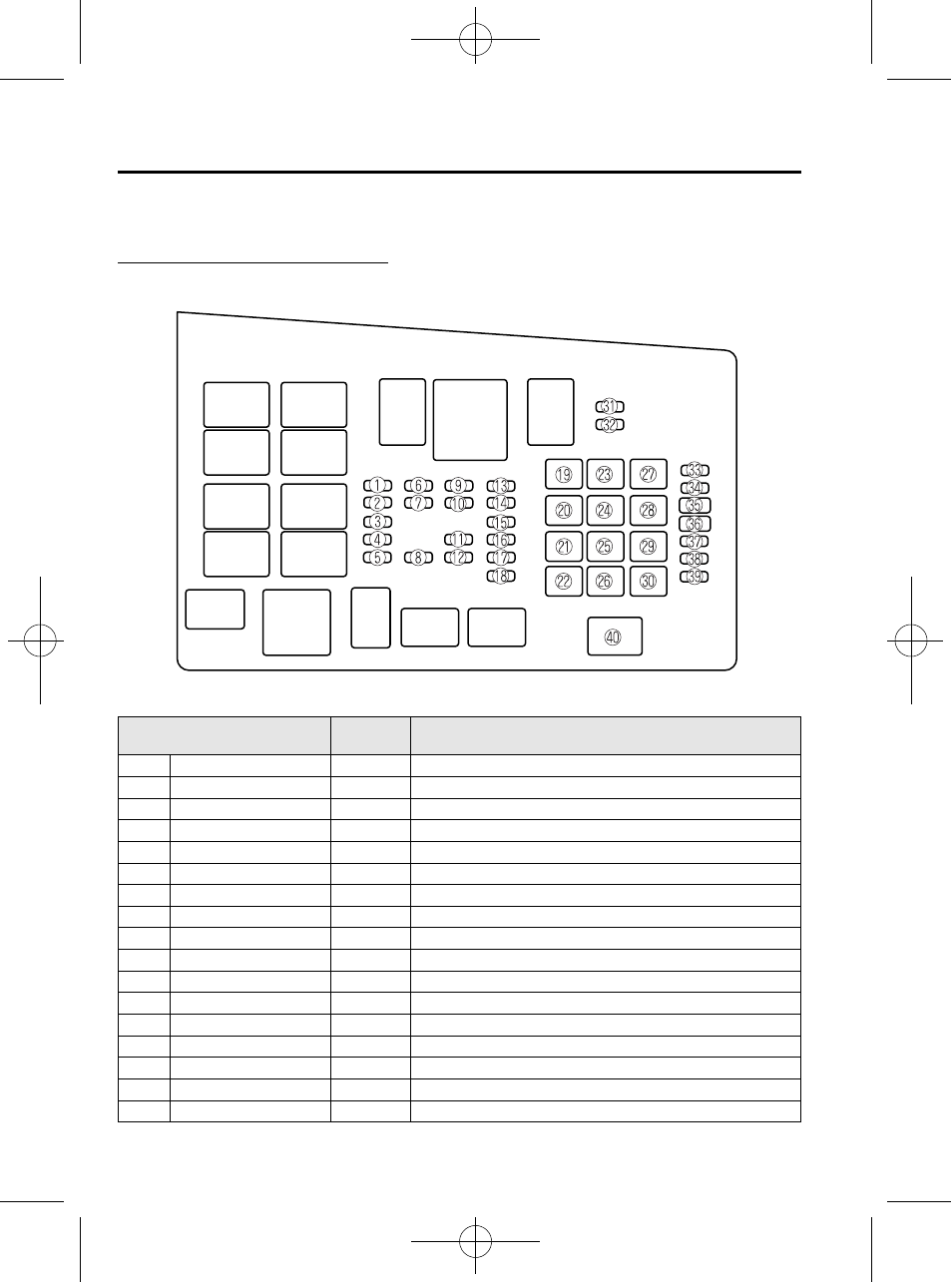

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 SPARE 20A ―
2 SPARE 15A
―
3 SPARE 10A
―
4 M DEF 7.5A Mirror defroster
í
5
― ― ―
6 INJ 15A PCM
7 ENG BAR 15A O
2
Sensor, EGR control valve
8 ENG BB 5A Waste gate solenoid, Cooling fan
9 HEAD LR 15A Headlight-low beam (Right)
10 HEAD LL 15A Headlight-low beam (Left)
11 HEAD HL 10A Headlight-high beam (Left)
12 HEAD HR 10A Headlight-high beam (Right)
13 DRL 15A DRL
í
(Headlight high beams)
14 HAZARD 10A Turn signal lights
15 STOP 20A Brake lights, Horn
16 ENG+B 10A PCM, AWD
17 ETC 10A Electronic throttle
8-36
Maintenance and Care
í
Some models.
