OM-1581 Page 18

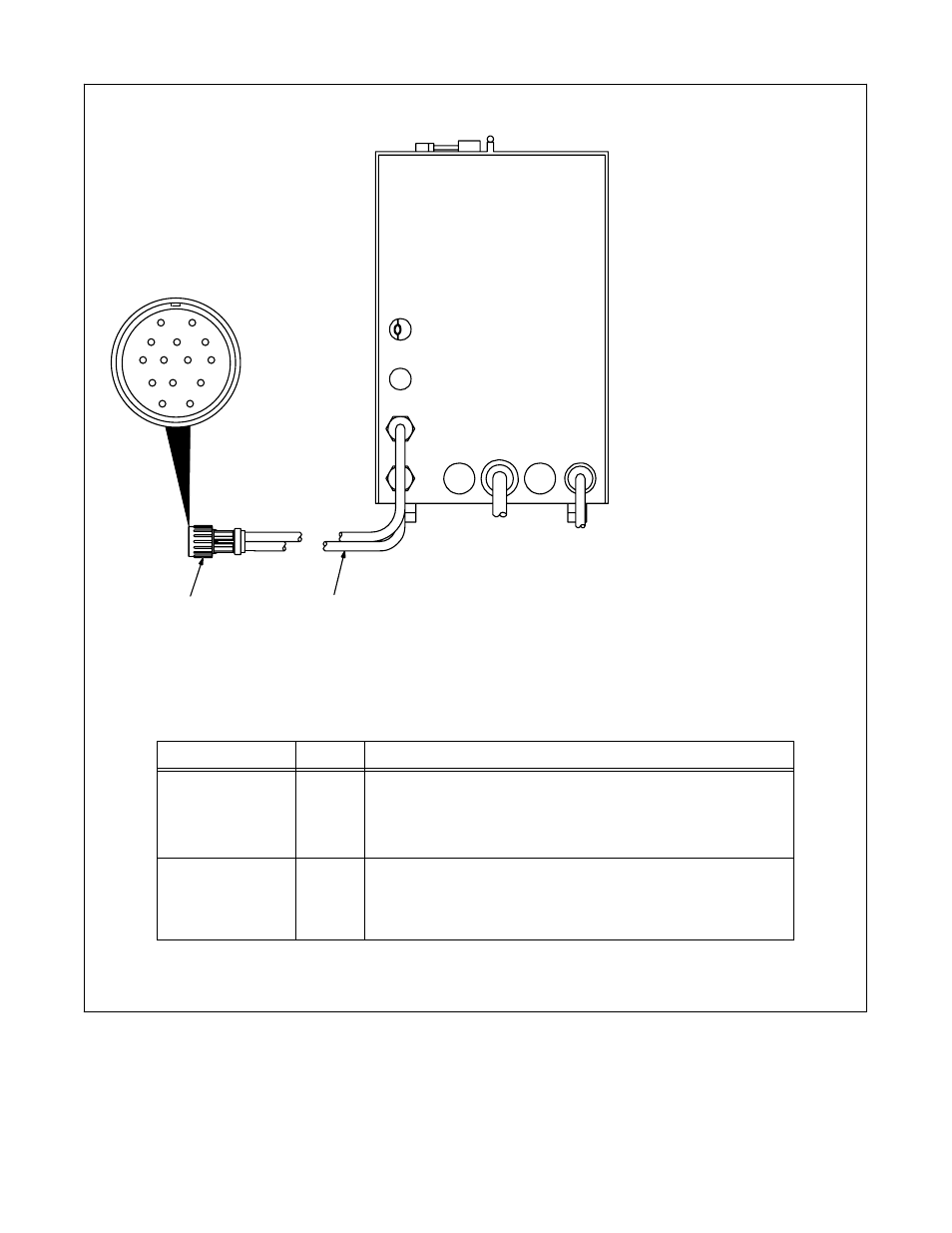

4-11. 115 VAC/Contactor Control Plug Information
1 Interconnecting Cord
2 115 VAC/Contactor Control
Plug PLG5
If CC or CC/CV welding power
source is equipped with matching
14-socket receptacle, insert plug,
and tighten threaded collar.
Proceed to Section 4-13.
If plug PLG5 will not connect to CC
welding power source receptacle,
use the following pin information
and Section 4-12 to replace PLG5
with a suitable plug.
Ref. S-0004-A / Ref. 151 772
A J
B
K I
C
L N H
D M G
E F
1 2
Pin* Pin Information
A, B Contact closure to A completes contactor control circuit.
I 115 volts ac.
J Contact closure to I completes 115 volts ac contactor control circuit.
G Circuit common for 115 volts ac circuit.
C +10 volts dc output to remote control.
D Remote control circuit common.
E 0 to +10 volts dc input command signal from remote control.
K Chassis common.
Remote
Contactor
Remote
Voltage Control
*The remaining pins are not used.
