PAGE 24 — SHS81A CUT-OFF SAW — OPERATION AND PARTS MANUAL — REV. #0 (01/30/08)
Reverse the cutting arm 180 degrees as shown in the Figure
23, and re-tension the V-belt by turning the belt tensioning
cam . The V-belt should remain in tension.
Fully tighten the three nuts
N
that lock the V-belt into the proper
tensioning position.

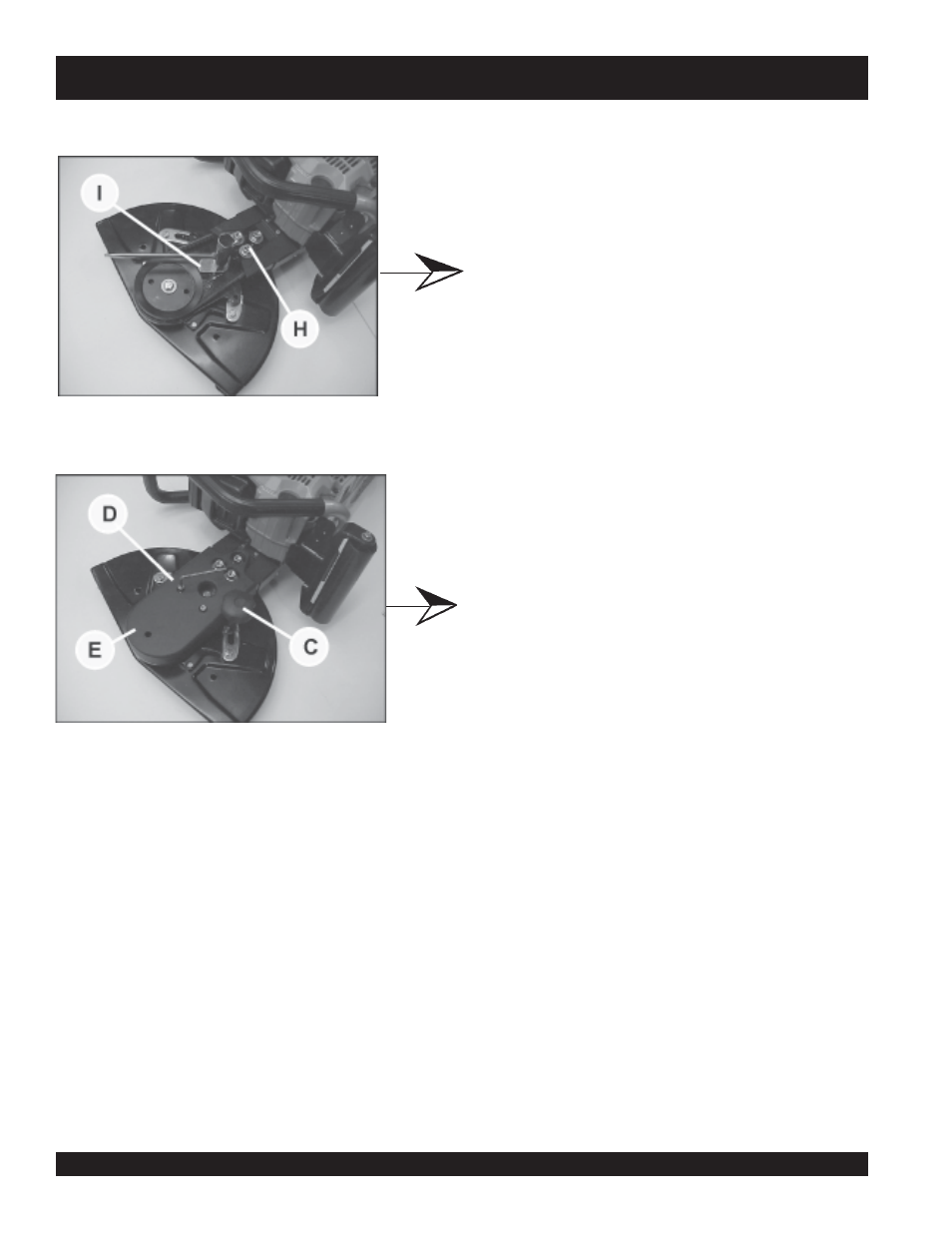

Figure 23. Reversing the Cutting Arm
Figure 24. Re-attaching Cover Guard
Re-attach the cover guard
K
with the 2 cap screws
J
,
and reconnect the guard adjustment knob I .
SHS81A CUT-OFF SAW — MAINTENANCE
Reversing the Cutting Arm Procedure (continued)
