SHS81A CUT-OFF SAW — WATER KIT INSTALLATION INSTRUCTIONS

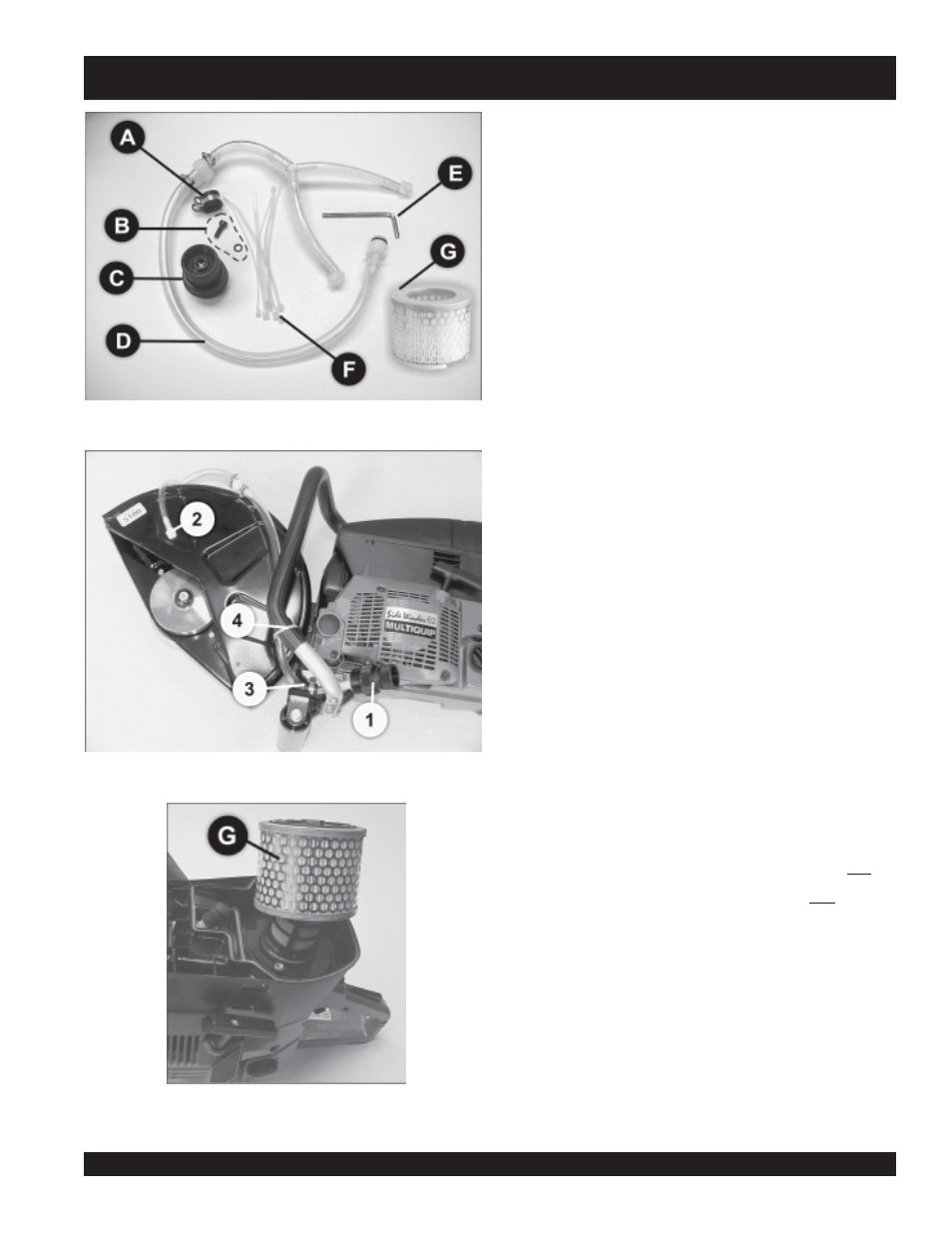

Figure 9. Water Kit Parts
Figure 10. Water Kit Assembly Points
Figure 11. Wet Air Filter Canister
Water Kit Installation Procedure
Connect the Quick Disconnect Fitting I to the
single end of the Water Hose J .
Snap fit the Water Hose Outlets J to the Holes in the
Blade Guard . Orient the Water Hose J through the
Front Handle.
! Loop the Hose Clamp G around the Water Hose J
and fasten the clamp to the Roller Bar Support Arm
using the Socket Head Cap Screw w/ Washer H , and
Hex Key Tool K .
" Use the Plastic Ties
L as preferred to further secure
the hose fittings and water hose to the saw.
# When using the Water Kit option for your saw, the Dry Air
Filter Canister MUST be replaced with the Wet Air Filter
Canister M (See Air Filter Kit Assembly in Parts
Section of this manual).
Contents of Water Kit
The contents of the Water Kit cannot be purchased seperately.
See Water Kit Assembly in Parts Section of this manual for
Water Kit part number.
Hose Clamp G
Socket Head Cap Screw w/ Washer H
Quick Disconnect Fitting I
Water Hose J
Hex Key Tool K (Included with Tool Kit)
Plastic Ties L
Wet Air Filter Canister M (Sold Seperately)
