APPENDIX B — PHYSICAL SPECIFICATIONS
M3D PHYSICAL SPECIFICATIONS
Enclosure Multi-ply hardwood
Finish Black textured (weather protected)
Note: Custom color available upon request
Protective grill Powder-coated hex stamped steel
Rigging QuickFly MRF-3D Rigging Frame with integral CamLinks, rear connecting bars, and captive
quick release pins
Weather protection Standard
Dimensions 54" W x 20" H x 30.5" D (1372 mm x 508 mm x 775 mm)
Weight Net: 415 lbs (188 kg)
30.50"
[775 mm]
Se rvi ce Re set Ac tiv ity Wi nk
clearance from this surface and adequate ventilation.
Auto-Voltage Select
95-125V ~ 208-235V~
Turn on 165V~ Turn off 264V~ Turn on 85V~ Turn off 134V~ Operational Voltage Range: 1400W RMS MAX 1400W RMS MAX 50-60Hz 50-60Hz
THIS APPARATUS MUST BE EARTHED.
To reduce the risk of electric shock do not remove cover.
UND REPARATUR NUR DURCH ELEKTROF√CHKRAFTE GEH√USE NICHT OFFENE WARTUNG ACHTUNG: INTERNES NE SONT AUTORISEES QU'AU U.K. WARNING: PERSONNEL TECHNIQUE QUALIFI… REFER SERVICING TO QUALIFIED PERSONNEL. NO OPERATOR SERVICEABLE PARTS INSIDE. ENTRETIENET REPARATIONS ATTENTION: ACCESO INTERNO SOLO To reduce the risk of fire or electric shock Refer servicing to qualified personnel. No operator or serviceable parts inside. AUTHORIZADO A PERSONAL T…CNICO CALIFICO do not expose this appliance to rain or moisture. ATENCI”N:
THIS PRODUCT MUST BE GROUNDED
This surface may reach high tempuratures white in use. WARNINGS: To ensure proper operation, allow at least 6 inches
51.00"
[1295 mm]
54.00"
[1372 mm]
9.56"
[243 mm]
20.00"
[508 mm]
8.50"
[216 mm]
10.00"
[254 mm]

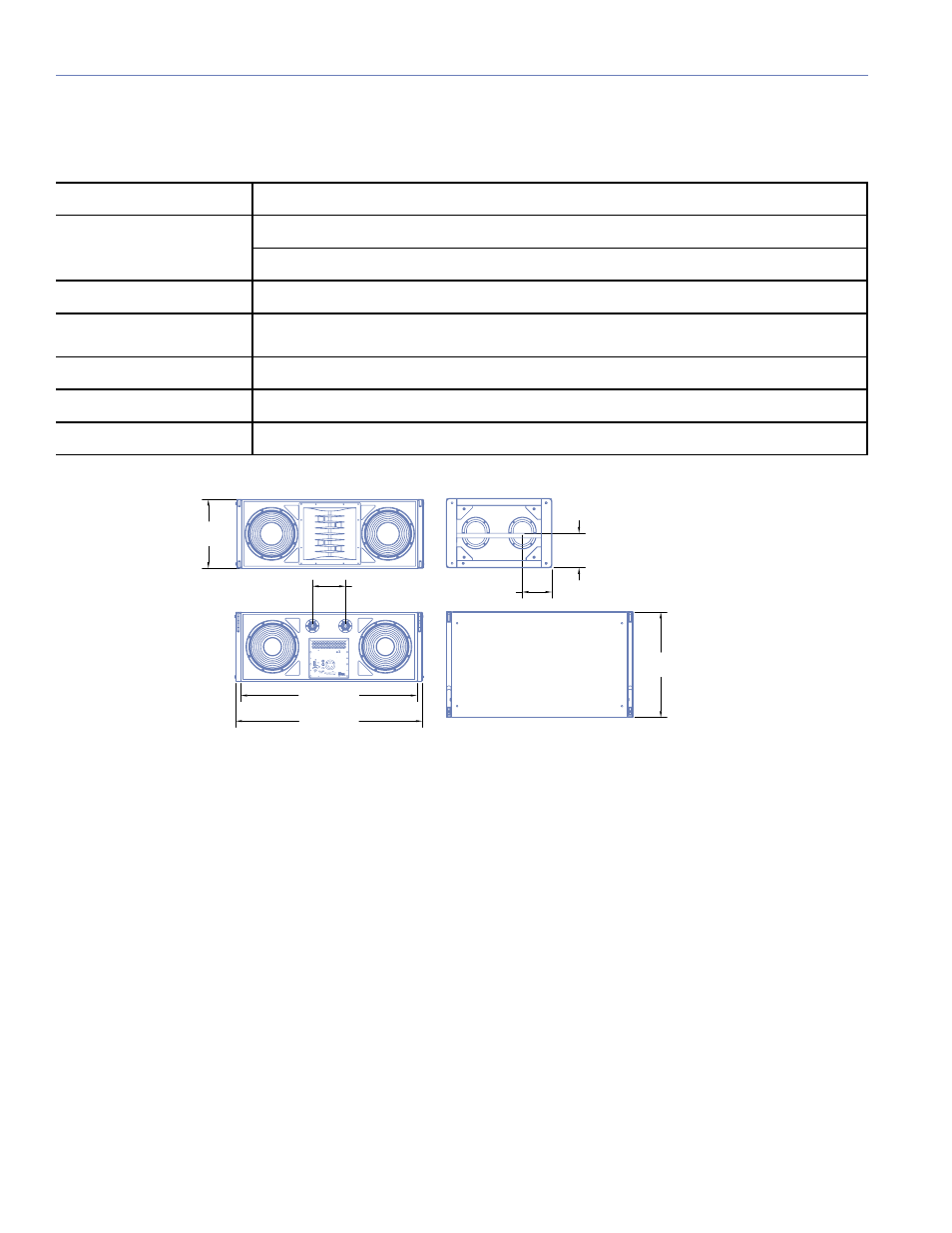

Figure 41. M3D Loudspeaker physical dimensions
