Meyer Sound M3D-SUB User Manual

Page 10

Using a three- or four-high M3D block will make each
block heavier (see Table 1) and less stable, so the blocks
will require extra care when rolling over an uneven surface
and up truck ramps. Conversely, larger blocks will make
more efficient use of a truck’s cargo space and make a
more efficient load-in and strike.

The optional M3D transit covers, shown in Figure 2, are
constructed of wear-resistant nylon fabric with Velcro
closures to protect the M3D and loudspeakers from scuffs
and weather during transport.

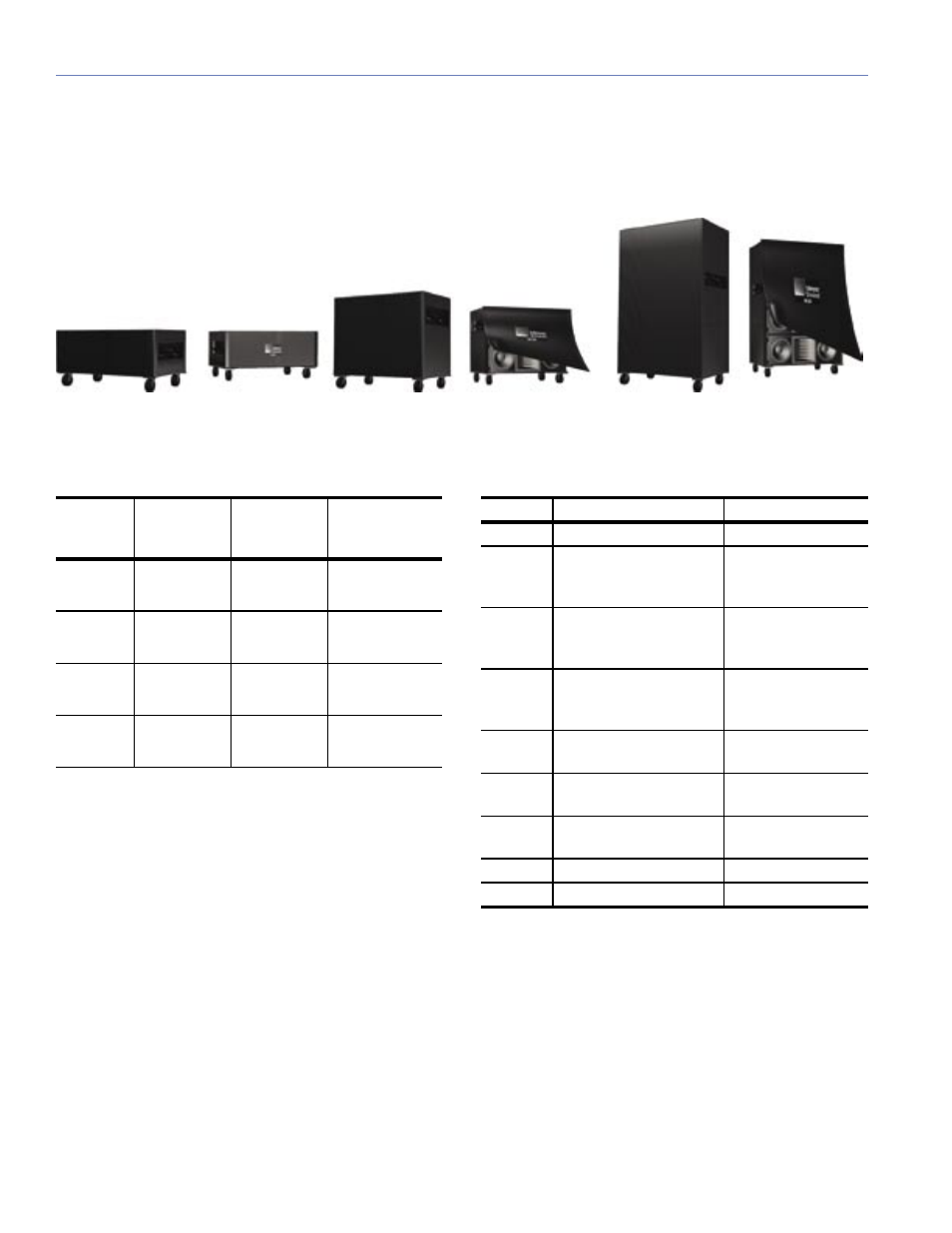

Figure 2. M3D transit covers shown covering one-, two-, and four-high M3D blocks

Table 1: M3D Transport Blocks

Number

of M3Ds

M3D Block

Weight

Block Height

Mounted on

Caster Rail

Transit Cover

Part Number

415 lbs

188.24 kg

28.56"

7254 mm

66.105.036.01

830 lbs

376.48 kg

49.31"

12525 mm

66.105.037.01

1245 lbs

564.72 kg

70.06"

17795 mm

66.105.040.01

1660 lbs

752.96 kg

90.81"

23066 mm

66.105.038.01

Table 1 notes:

1. The table above refers to M3Ds only. If transport

blocks include M3Ds and M3D-Subs or M3D-Subs
only, recalculate the block weights by replacing the
figure of 415 lbs (188.24 kg) with 395 lbs (179.17 kg).

2. An attached MTG-3D Top Grid will add approximately

11.0 inches (279.4 mm) to the height of the block and
approximately 308 lbs (139.71 kg) to the total weight
of the block.

3. The measurements are at 0˚ splay angles.

4. These measurements include the cover thickness.

5. The block height measurements include 7.81 inches

(198.4 mm) added to the block height by the caster
rails.

Table 2. M3D Rigging and Replacement Parts

Item

Description

Part Number

MTG-3D Top grid for M3D arrays

45.105.028.01

MTF-3D

Transition frame from
M3D arrays to CQ-2
and MSL-4 downfills

40.105.092.01

MRF-3D M3D & M3D-Sub Left

Side Rigging Frame
Replacement Kit

40.105.103.01

MRF-3D M3D & M3D-Sub Right

Side Rigging Frame
Replacement Kit

40.105.103.02

M3D & M3D-Sub Front
Cam-Link Replacement

40.105.104.01

M3D & M3D-Sub Rear
Link Replacement

40.105.104.02

M3D Rigging Spacer
Tool

68.105.072.01

Caster Rail Kit

40.105.033.01

QRP

M3D Quick Release Pin

134.007
