Meyer Sound M3D-SUB User Manual

Page 23

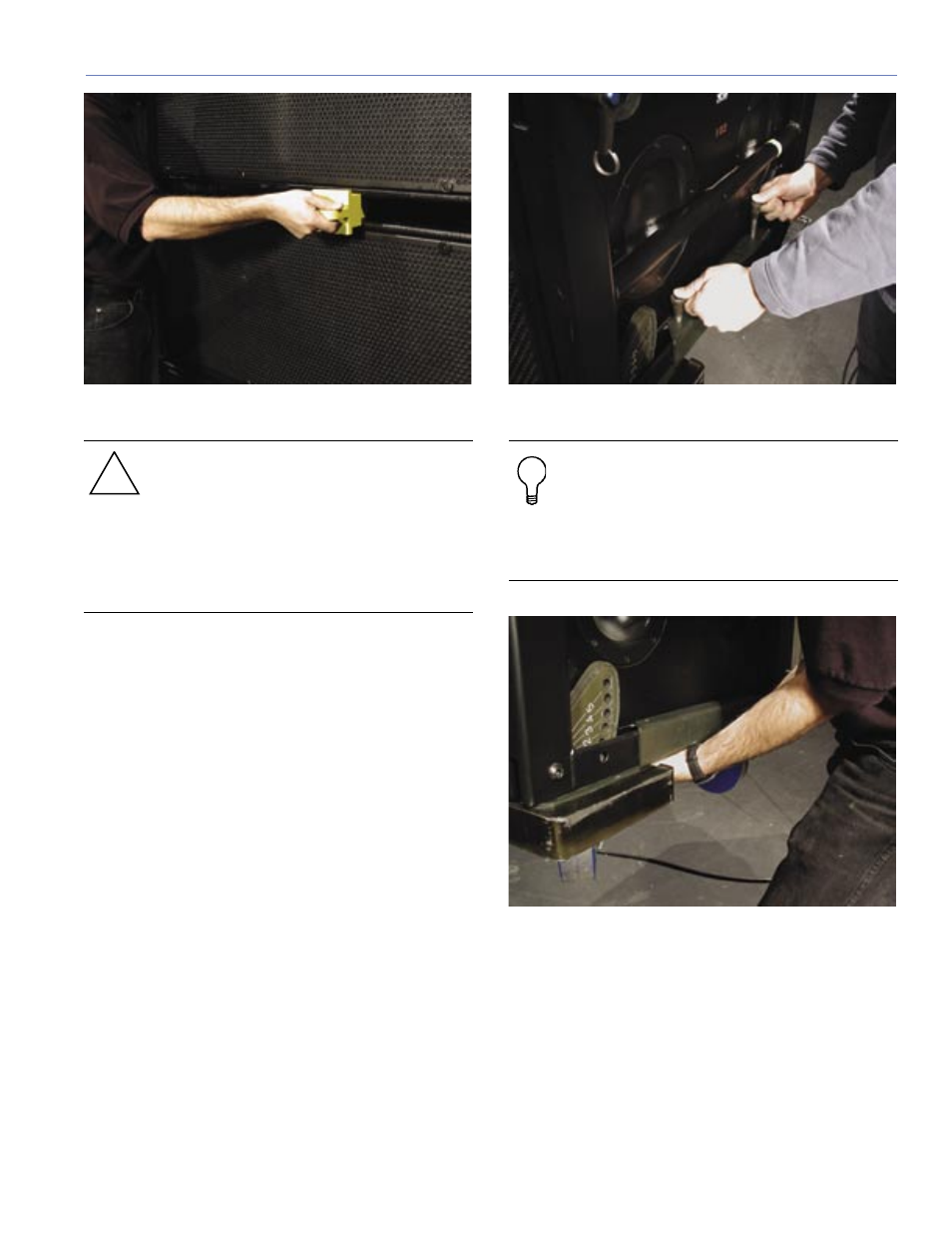

Figure 21. Adjusting angle using the alignment block

CAUTION:

When the QRPs are removed

from the CamLinks, take care when adjusting
the motor hoists. If the motors are raised too
high with only the rear link’s QRPs installed,
the lower loudspeaker block can swing under
the upper block of flown loudspeakers.
Always use small motor bumps when rigging
the system while in this state.

REMOVING CASTER RAILS

1. Once the first block of M3D loudspeakers is lifted into

the air, fly the assembly to a working height (about
waist high) that will allow easy access to and removal
of the caster rails from the end frames.

2. Unpin the caster rails as shown in Figure 22 and

reinsert one QRP to secure the CamLink. Store the
second pin in the rear link hole. Lift the bottom plate
of the caster rail by leveling the bottom, relieving the
stress on the end frame. Slide them off the end frames
as shown in Figure 23.

Figure 22. Unpinning caster rail

TIP:

For easier management of the caster

rails, stack them in an empty motor case
(with lids open if necessary) after removal.
They may then be rolled away and returned
for strike without carrying each caster rail
individually to storage.

Figure 23. Removing caster rail
