Page 4

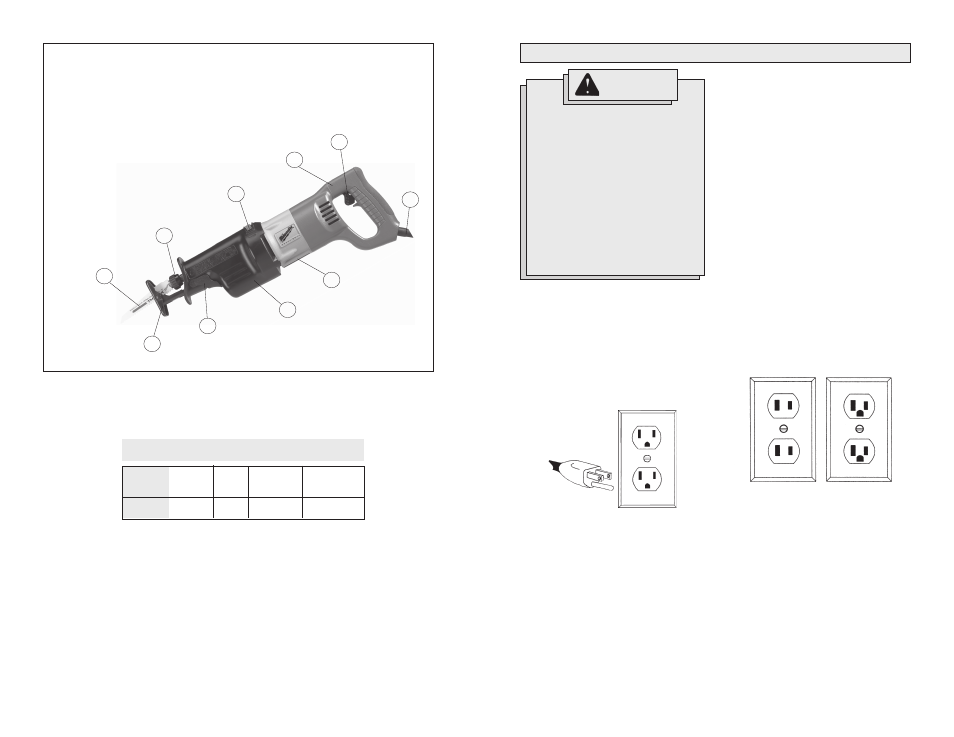

The grounding prong in the plug is con-
nected through the green wire inside the
cord to the grounding system in the tool.
The green wire in the cord must be the
only wire connected to the tool's ground-
ing system and must never be attached to
an electrically “live” terminal.

Your tool must be plugged into an appro-
priate outlet, properly installed and
grounded in accordance with all codes and
ordinances. The plug and outlet should look
like those in Figure A.

Double Insulated Tools:
Tools with Two Prong Plugs

Tools marked “Double Insulated” do not re-
quire grounding. They have a special
double insulation system which satisfies
OSHA requirements and complies with the
applicable standards of Underwriters Labo-
ratories, Inc., the Canadian Standard As-
sociation and the National Electrical Code.
Double Insulated tools may be used in ei-
ther of the 120 volt outlets shown in
Figures B and C.

Grounded Tools:
Tools with Three Prong Plugs

Tools marked “Grounding Required” have
a three wire cord and three prong ground-
ing plug. The plug must be connected to a
properly grounded outlet (See Figure A). If
the tool should electrically malfunction or
break down, grounding provides a low re-
sistance path to carry electricity away from
the user, reducing the risk of electric shock.

Fig. B

Fig. C

Fig. A

Improperly connecting the
grounding wire can result in the
risk of electric shock. Check with
a qualified electrician if you are in
doubt as to whether the outlet is
properly grounded. Do not modify
the plug provided with the tool.
Never remove the grounding
prong from the plug. Do not use
the tool if the cord or plug is dam-
aged. If damaged, have it repaired
by a

MILWAUKEE service facility

before use. If the plug will not fit
the outlet, have a proper outlet
installed by a qualified electrician.

GROUNDING

WARNING!

Specifications

Cat.

No.

6536-21

Volts

AC Only

120

Length of

Stroke

1-1/4"

Strokes

per Minute

0 - 3000

Amps

Cat. No. 6536-21

Handle

Trigger

Cord

Nameplate

Insulating boot

Shoe release lever

Adjustable pivot shoe

Blade

Quik-Lok

blade clamp

10. Orbit control switch
