SPECIFIC SAFETY RULES — SAWZALLS ®
1. Hold power tools by insulated gripping surfaces when performing an
operation where the cutting tool may contact hidden wiring or its own cord.
Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the
operator.
2. Keep hands away from all cutting edges and moving parts.
3. Use clamps or another practical way to secure and support workpiece to a
stable platform. Holding the work by hand or against your body leaves it unstable and
may lead to loss of control.
4. Maintain labels and nameplates. These carry important information. If unreadable
or missing, contact a
MILWAUKEE service facility for a free replacement.
5. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paint
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specifically
designed to filter out microscopic particles.

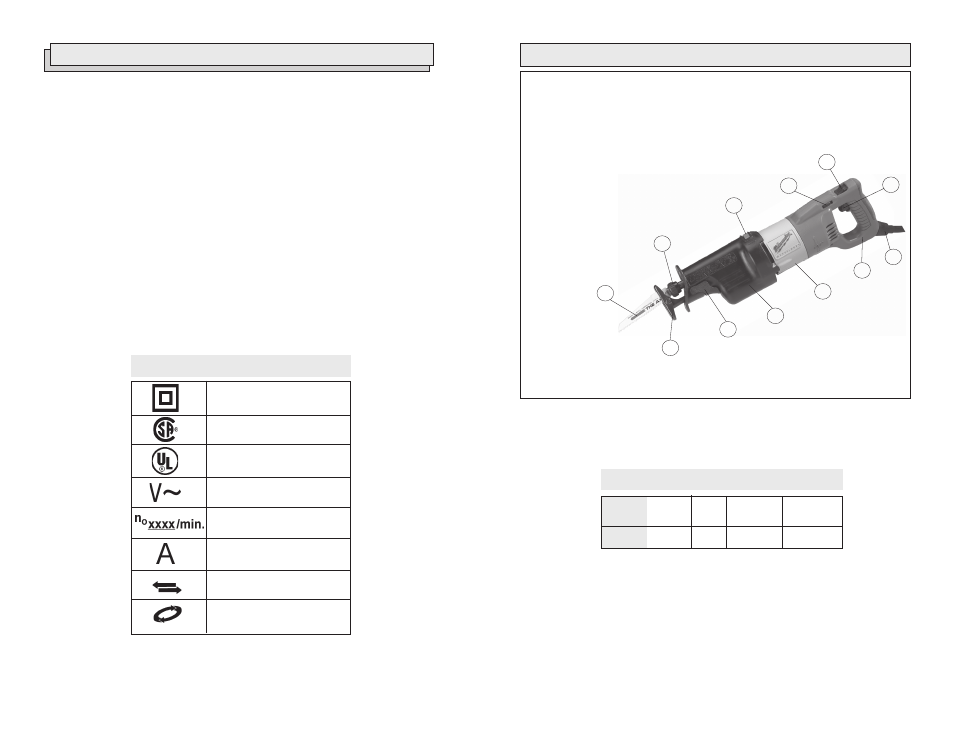

FUNCTIONAL DESCRIPTION
Amps
Double Insulated
Symbology
Canadian Standards
Association
Underwriters
Laboratories, Inc.
Volts Alternating Current
No Load Strokes Per Minute
(SPM)
Straight Cut
Orbital Cut
Specifications
Cat.
No.
6523-21
Volts
AC Only
120
Length of
Stroke
1-1/4"
Strokes
per Minute
0 - 3000
Amps
13
Cat. No. 6523-21
2
4
5
6
7
8
9
10
1. Speed control dial
2. Handle rotation button
3. Trigger
4. Quik-Lok ® cord
5. Rotating handle
6. Nameplate
7. Insulating boot
8. Shoe release lever
9. Adjustable pivot shoe
10. Blade
11. Quik-Lok ® blade clamp
12. Orbit control switch
12
11
1 3
