12

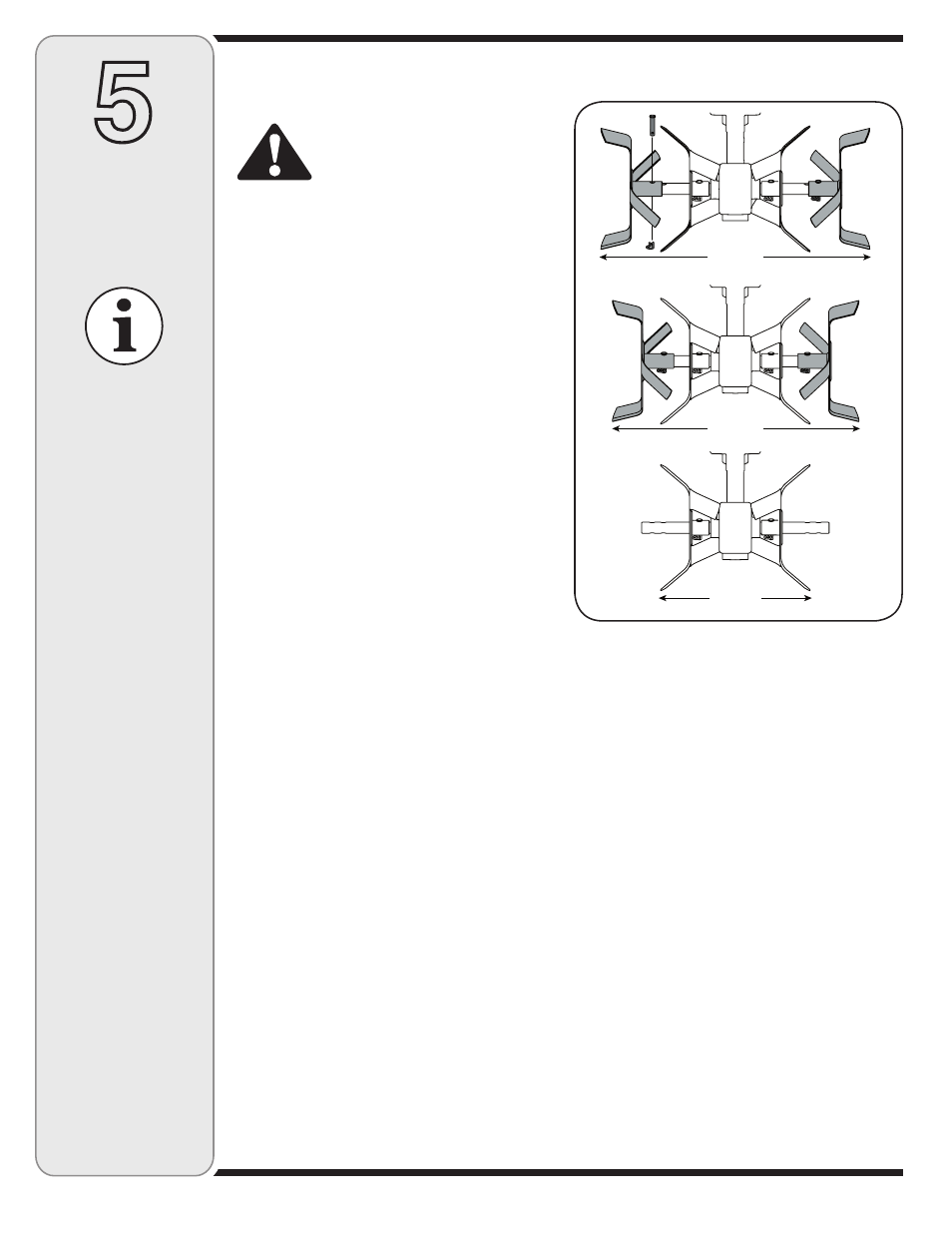

Figure 5-1: Tine width adjustment.
Making Adjustments
Warning: Disconnect the spark
plug wire and ground it against
the engine before performing
any adjustments.
Engine Adjustment
Refer to the separate engine manual for engine
adjustment instructions.
Tine Width Adjustment
The tilling width of the unit is 22 inches. Tilling
width can increase to 24 inches by removing
the clevis and cotter pins, sliding each outer
tine out one inch, and securing in this position
with the pins. For cultivation, reduce the tine
width to 13 inches by removing the outer tines
completely, Figure 5-1.
5
Adjustments
This manual may cover
various models of tillers.
The units illustrated may
vary slightly from your
unit.
Stand behind the tiller as
if you were going to oper-
ate it. Your right hand
corresponds to the right
side of the tiller; your left
hand corresponds to the
left side of the tiller.
24-inch
13-inch
22-inch
