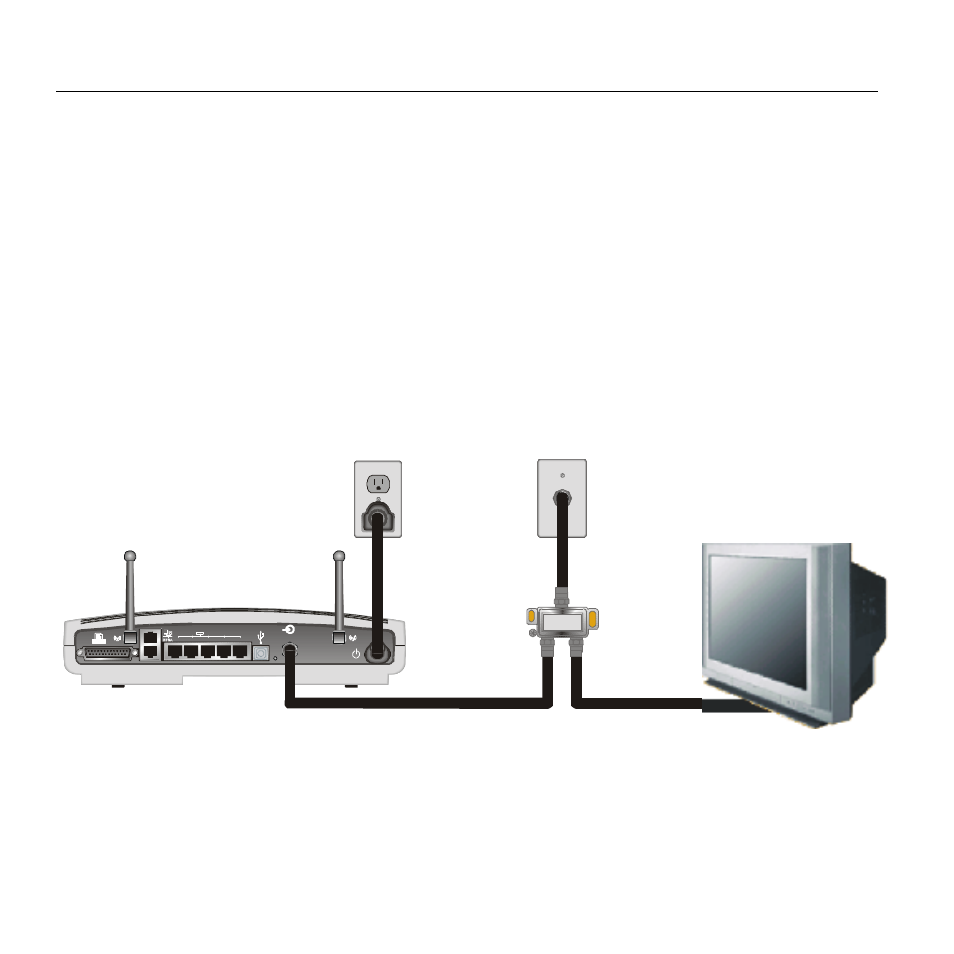

Connecting to the Cable Outlet Using a Splitter
Connecting an SBG1000 to the same cable outlet as a TV requires a
5 to 900 MHz splitter and two additional coaxial cables.
1
Check that one end of the coaxial cable is connected to the cable TV outlet.
2
Disconnect that cable from the back of your TV and connect it to the
splitter input.
3
Use one coaxial cable to connect the splitter output to your TV.
4
Use the other coaxial cable to connect the splitter output to the
CABLE
port
on your SBG1000.
RESET
5
4
3
2
1
COAXIAL
SPLITTER
INPUT
OUTPUT
