3-7. Lens Adjustment Procedure
MODE SHADE
SENSITIVITY
DELAY
.
Lens assembly displays prior
settings when turned On. Re-
tained settings are not shown
in example.
.
In the Grind mode the lens is a
fixed shade No. 3. No lens ad-
justments are possible.

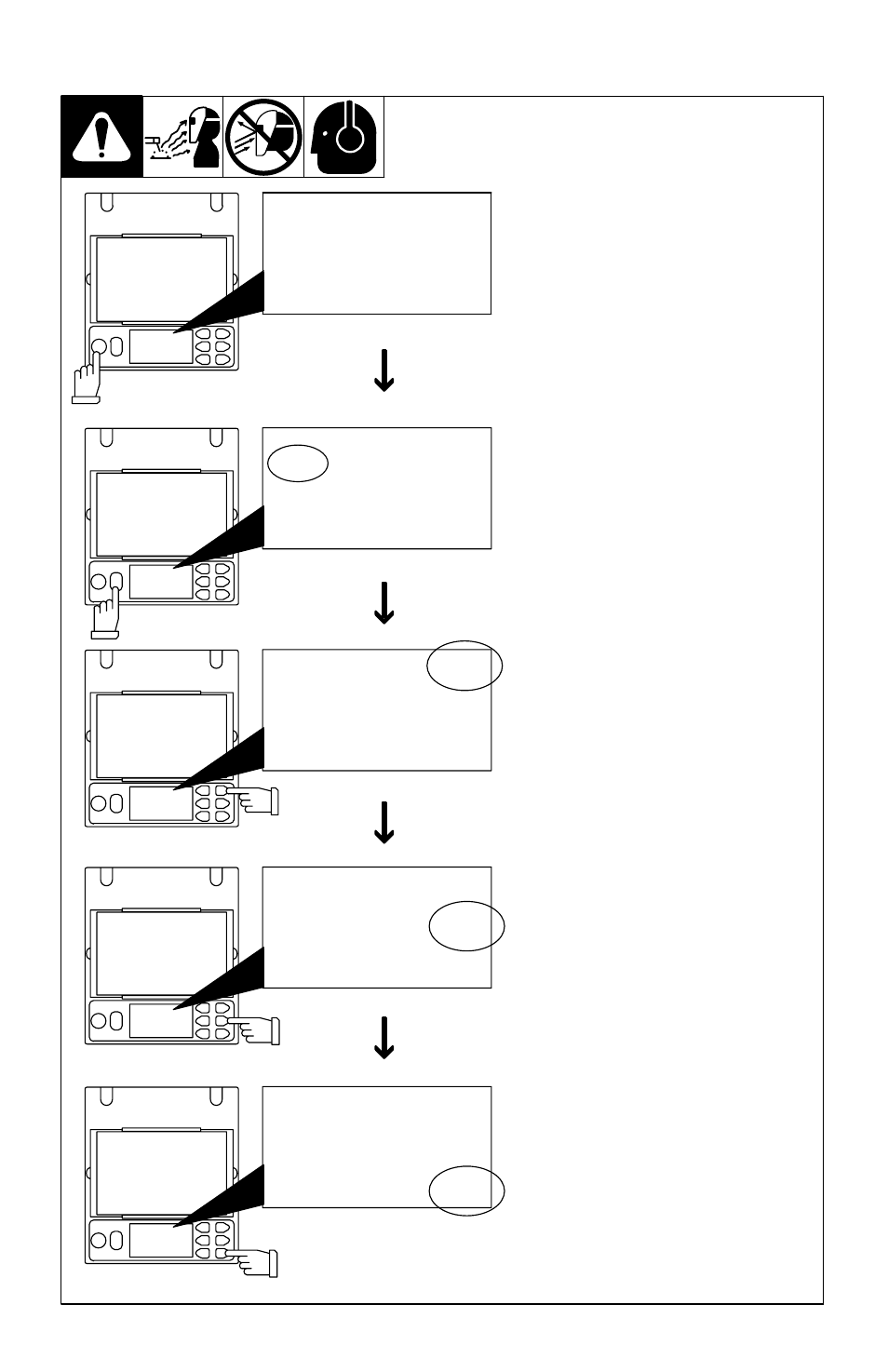

Adjusting Lens Assembly:
S
Turn lens On. Display screen
appears.
S
Select mode (Weld, Cutting,
Grind, X-Mode)
S
Select Shade By Pressing
Down/Up Buttons.
S
Select Sensitivity By Pressing
Low/Hi Buttons.
S
Select Delay by Pressing
Fast/Slow Buttons.
S
Begin work.
805 010
MODE
WELD
SHADE
SENSITIVITY
DELAY
MODE
WELD
SHADE
SENSITIVITY
DELAY
12
MODE
WELD
SHADE
SENSITIVITY
DELAY
12
6
MODE
WELD
SHADE
SENSITIVITY
DELAY
12
6
5
