55
Specifications
Product Name SLIM SERIES Plasma Monitor
Product Code PD4293D
Screen Size 36.3"(H) ן20.4"(V) inches
921(H) ן518(V) mm
diagonal 42"
Aspect Ratio 16 : 9
Resolution 853(H)
ן480(V) pixels
Pixel Pitch 0.04"(H)
ן0.04"(V) inches
1.08(H)
ן1.08(V) mm
Color Reproduction 256 levels, 16,770,000 colors
Signals
Synchronization Range Horizontal : 15.5 to 93.8 kHz
(automatic : step scan)
Vertical : 50.0 to 120 Hz
(automatic : step scan)
Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*
1 , DVD* 1 , DTV* 1
Input Terminals
RGB
Visual 1 (Analog) mini D-sub 15-pin
ן1
Visual 2 (Analog) BNC (R, G, B, H/CS, V)
ן1* 2
Visual 3 (Digital) DVI-I 29-pin
ן1* 3
(Not compatible with analog input)
Video
Visual 1 RCA-pin
ן1
Visual 2 S-Video: DIN 4-pin ן1
Visual 3 BNC (G/Y/VIDEO3) ן1* 2
DVD/HD/DTV
Visual 1 RCA-pin (Y, PB[CB], PR[CR]) ן1* 1
Visual 2 BNC (Y, PB[CB], PR[CR]) ן1* 1, * 2
Audio Stereo RCA ן3(selectable)
External Control D-sub 9-pin ן1(RS-232C)
Sound output 7W+7W at 6 ohm
Power Supply AC120V 50/60Hz
Current Rating 3.9A (maximum)
Power Consumption 280W (typical)
Dimensions 41.3 (W) ן25.5 (H)ן3.5 (D) inches
1048 (W) ן648 (H)ן89(D) mm
Weight 61.8 lbs / 28.5 kg
Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity 20 to 80% (no condensation)
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation)
Front Panel User Controls Power on/off, Input source select,
Volume up/down, OSM control
Remote Control Functions Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Pointer, Zoom up/
down, Off timer, Wireless/ Wired remote
control
OSM Functions Picture (Contrast / Brightness / Sharpness/
Color / Tint / Picture mode / Color
temperature/ Noise reductions), Sound (Bass
/ Treble/ Balance),Screen (V-Position / H-
Position/ V-Height / H-Width /Auto Picture
/ Fine picture/ Picture adjustment), Function
(OSM/ OSM adjustment/ Power
management/ Gray level/ Cinema mode/
RGB3 Adjustment, Long Life (PLE, Orbiter,
Inverse, White, Screen Wiper)/ Reset)/Option
(Audio input/ BNC select/ RGBselect/ HD
select), Information (Frequency / Language*
/ Color system)
*English, German, French, Italian, Spanish,
Swedish, Japanese
The features and specifications may be subject to change without
notice.
* 1 HD/DVD/DTV input signals supported on this
system
480P (60 Hz)
480I (60 Hz)
525P (60 Hz) 525I (60 Hz)
576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz)
720P (60 Hz) 1035I (60 Hz)
1080I (50 Hz) 1080I (60 Hz)
* 2 The 5-BNC connectors are used as RGB/PC2, HD/
DVD2 and VIDEO3 input. Select one of them
under “BNC SELECT”.
* 3 It doesn’t cope with copy protection.
Other Features 3D motion adaptive Scan Converter
with 2-2 (50Hz), 2-3 (60Hz) pull down
Converter, Digital Zoom function
(100-900% Selectable),
Self Diagnosis, Anti Image Burn,
Color Temperature Select, Control Lock,
Power management, Plug and play
(DDC1, DDC2b, RGB3: DDC2b only)
Accessories Remote control with two AAA batteries,
Power cord, User’s Manual, Safety metal
fittings, Screw for Safety metal fittings,
Ferrite cores, Bands
Regulations UL Approved (UL 60950/ CSA 60950)
DOC Canada requirements
Meets FCC class A requirements

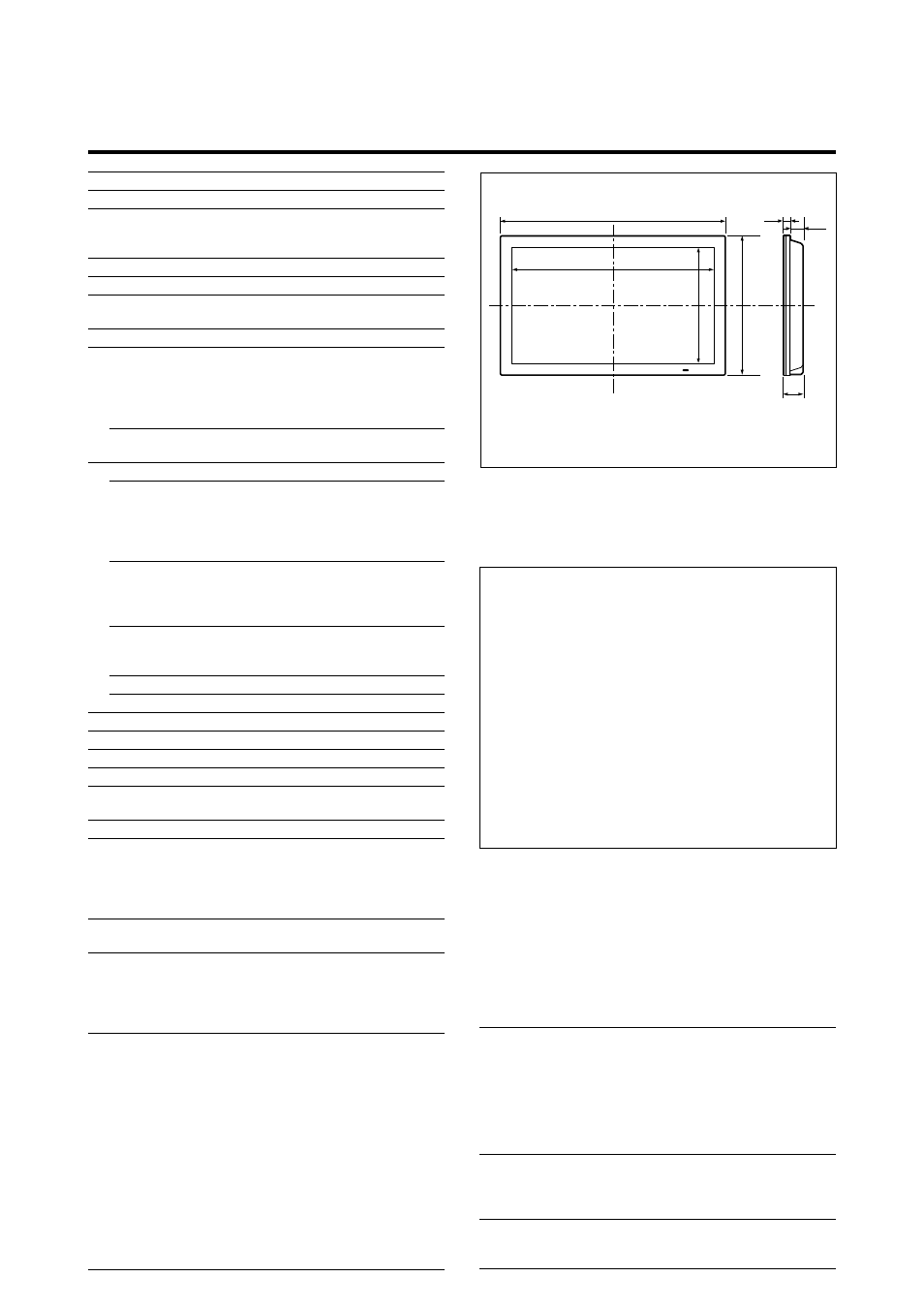

Units are in inch
(mm)
3.5"
(89)
1.18"
(30)
2.32"
(59)
41.3" (1048)
25.5" (648)
36.3" (921)
20.4" (518)
