NOTE
l After the bolt is clear of the hole, keep the
Allen wrench level while pulling it out with
the bolt attached so as to prevent the bolt
from hitting the vehicle and dropping.
l Bring the removed bolt to an Authorized
Mazda Dealer. If you drop the bolt in the
vehicle by mistake, inform at an Authorized
Mazda Dealer.

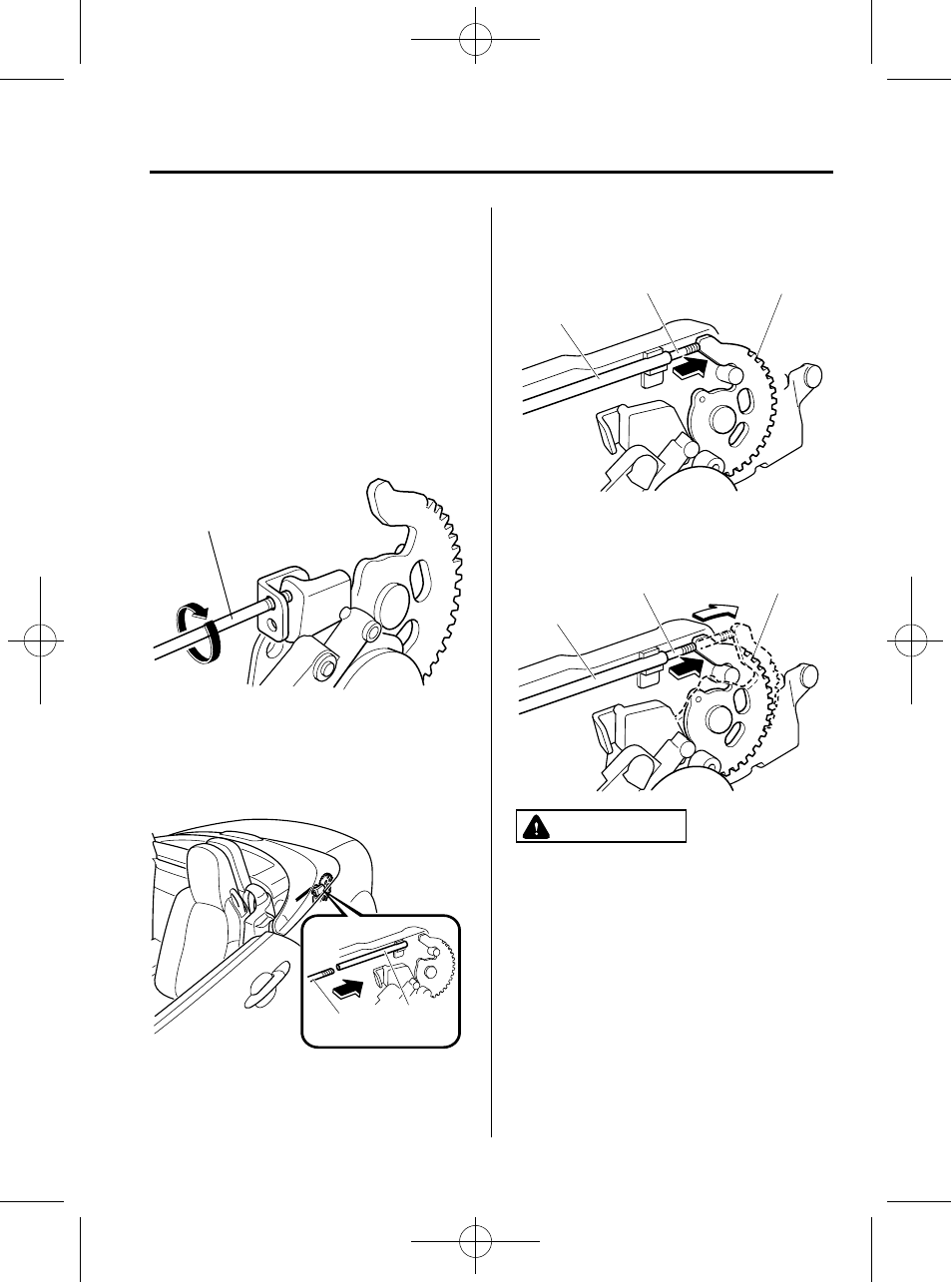

6. Tighten the eyebolt by turning it
clockwise 5 more times.
Eyebolt
7. Unscrew the eyebolt now by turning it
counterclockwise.
8. Insert the threaded end of the eyebolt
through the guide.
Guide
Eyebolt
9. Press the eyebolt against the sector
gear.
Sector gear Eyebolt
Guide
10. Press and rotate the sector gear
rearward to release the lock.
Sector gear
Eyebolt
Guide
CAUTION
When releasing the sector gear lock
using the eyebolt, make sure the
eyebolt remains centered as you push
it against the sector gear lock. If the
eyebolt slips it could cause your hand
to veer and hit the vehicle resulting in
minor scrapes or bruises.
11. Pull out the eyebolt from the guide
when the lock is released.
12. Do the same procedure on the other
side.
Knowing Your Mazda
Doors and Locks
3-61
