Doors and locks – Mazda 2008 MX-5 Miata User Manual
Page 109
Black plate (109,1)

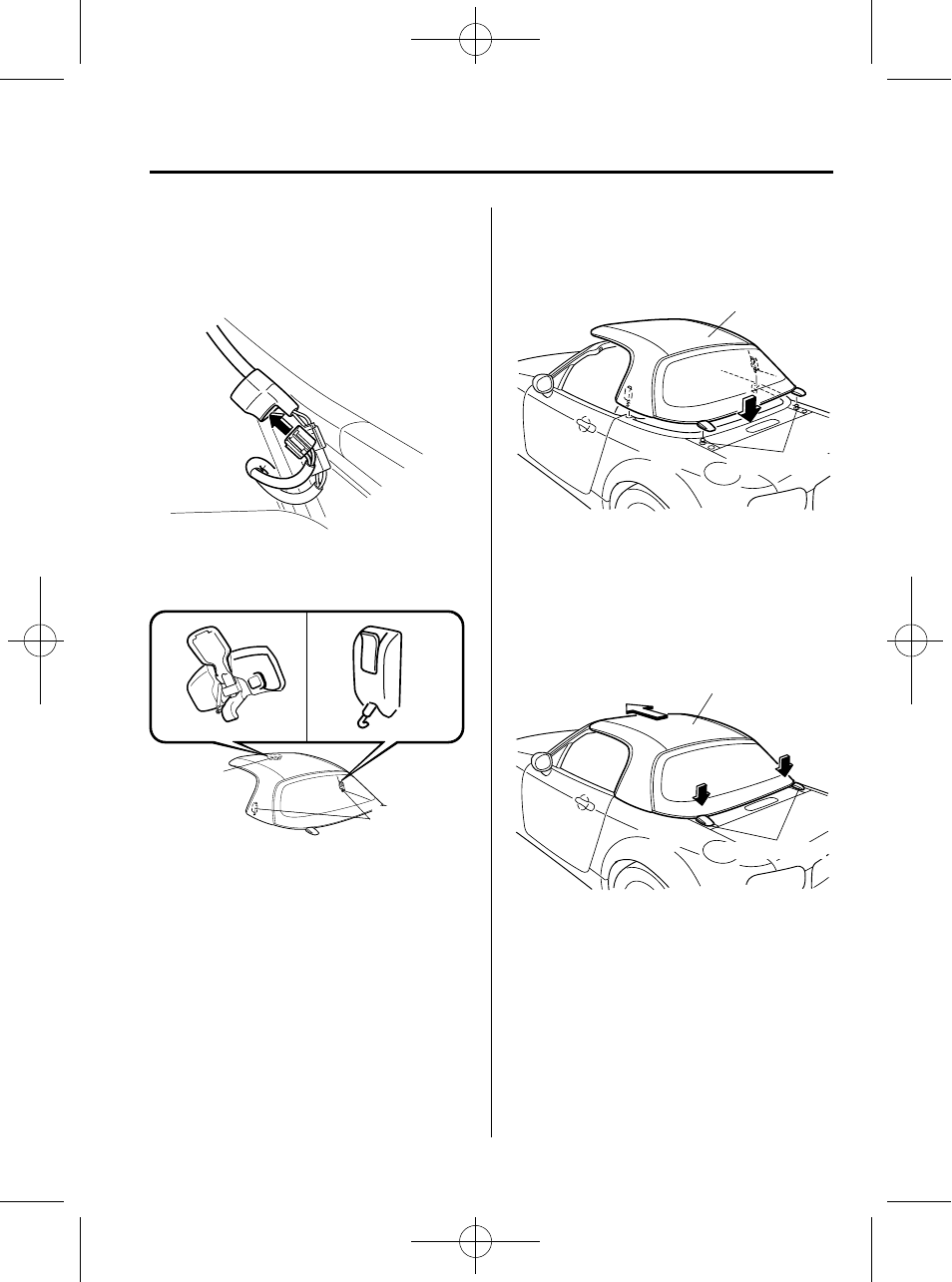

NOTE
Connect the convertible top's rear window
defroster coupler into the holder so that it does
not rattle.
8. Make sure the top latch and the side
latches on the hardtop are unlocked.
Top latch
assembly
Side latch
assembly
9. Align the rear deck latches with the
rear deck studs and set the hardtop
squarely onto the body.
Hardtop
Rear deck stud
10. Slide the hardtop forward while
pressing down on the rear deck
latches to lock the latches, and then
verify that they are secure by
attempting to lift the rear of the
hardtop.
Hardtop
Rear deck latch
Knowing Your Mazda
Doors and Locks
3-49
MX-5_8X49-EA-07F_Edition2 Page109
Monday, June 25 2007 11:18 AM
Form No.8X49-EA-07F
