UC-7400 Hardware User’s Manual Introduction
1-7

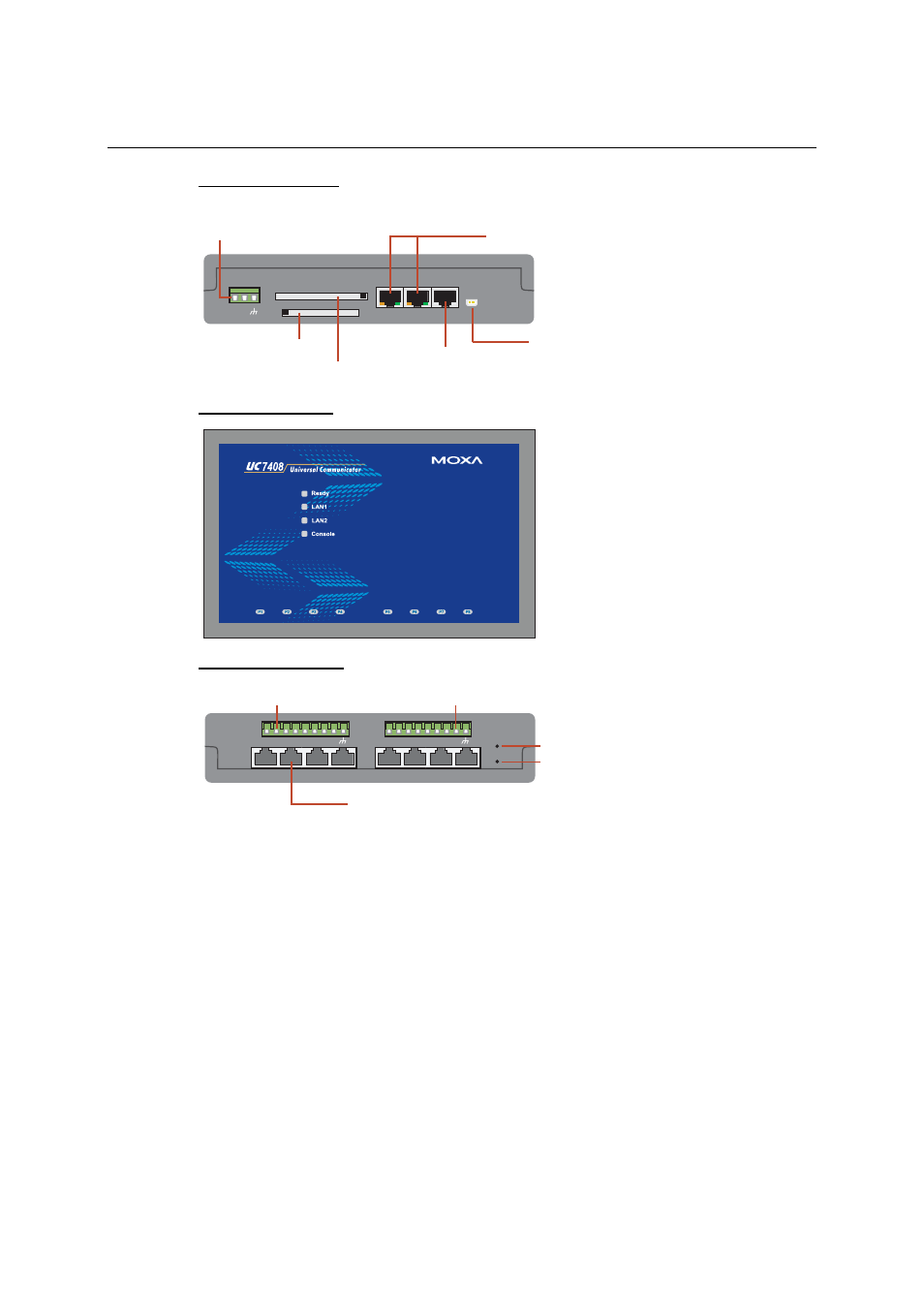

UC-7408 Rear View
DC 12-48V LAN1 LAN2 Console
V+ V-
PCMCIA
CF
12-48 VDC
Power Input
CF x 1
PCMCIA x 1
10/100 Mbps Ethernet x 2
USB 1.1 Client x 1,
miniB Connector
RS-232
PPP/Console
UC-7408 Top View
UC-7408 Front View
Reset
P1 RS-232/422/485 P2 P3 P4 P5 P6 P7 P8
Reset to
Default
D/O D/I
RJ45 RS-232/422/485
Connectors x 8
1 2 3 5 6 4 7 8 1 2 3 5 6 4 7 8 Reset to Default
8-ch Digital Output 8-ch Digital Input
Hardware Reset
