319
Technical data

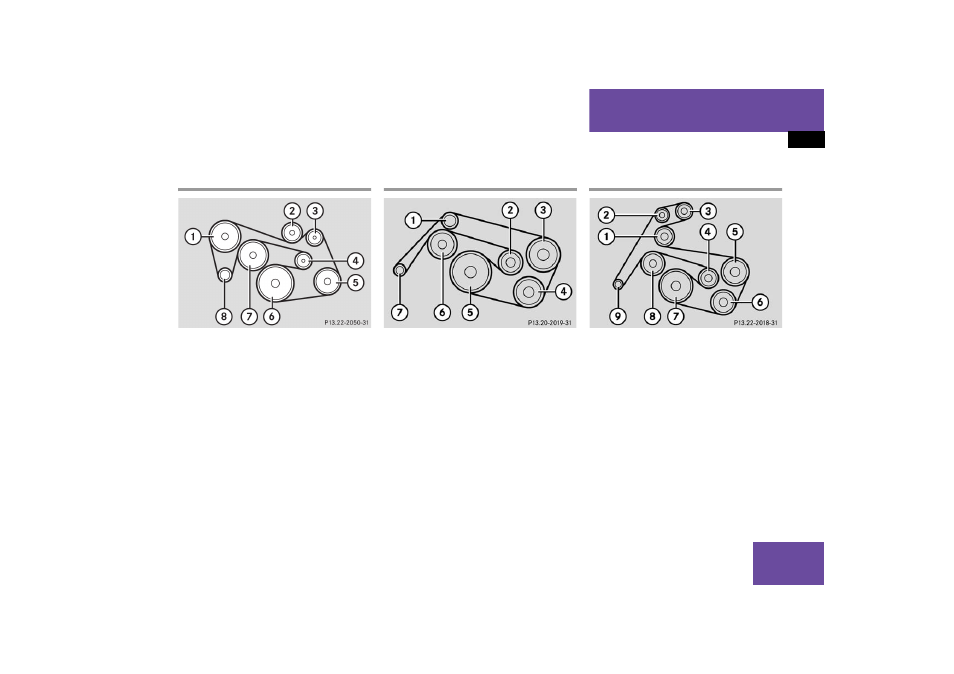

Layout of poly-V-belt drive
Layout of poly-V-belt drive
C 230 Kompressor Sport
1 Power steering pump
2 Idler pulley
3 Mechanical loader
4 Automatic belt tensioner
5 Air conditioning compressor
6 Crankshaft
7 Coolant pump
8 Generator (alternator)
C 240 / C 320 (all models)
1 Idler pulley
2 Automatic belt tensioner
3 Power steering pump
4 Air conditioning compressor
5 Crankshaft
6 Coolant pump, fan
7 Generator (alternator)
C 32 AMG
1 Idler pulley
2 Idler pulley
3 Supercharger
4 Automatic belt tensioner
5 Power steering pump
6 Air conditioning compressor
7 Crankshaft
8 Coolant pump, fan
9 Generator (alternator)
