SECTION 5: ASSEMBLY INSTRUCTIONS
IMPORTANT: After assembly, service engine
with gasoline, and check oil level as instructed in
the separate engine manual packed with your unit.
NOTE: References to right or left side of the snow
thrower are determined from behind the unit in the
operating position.
UNPACKING
• Remove staples or break glue on the top
flaps of the carton. Remove any loose parts
included with unit (i.e., operator’s manual,
etc.).
• Cut along dotted lines and lay end of carton
down flat. Remove packing material.
• Roll unit out of carton. Check carton
thoroughly for loose parts before discarding.
TOOLS REQUIRED FOR ASSEMBLY
• (1) 3/8" or adjustable wrench
• (2) 7/16" or adjustable wrench
• (2) 1/2" or adjustable wrench

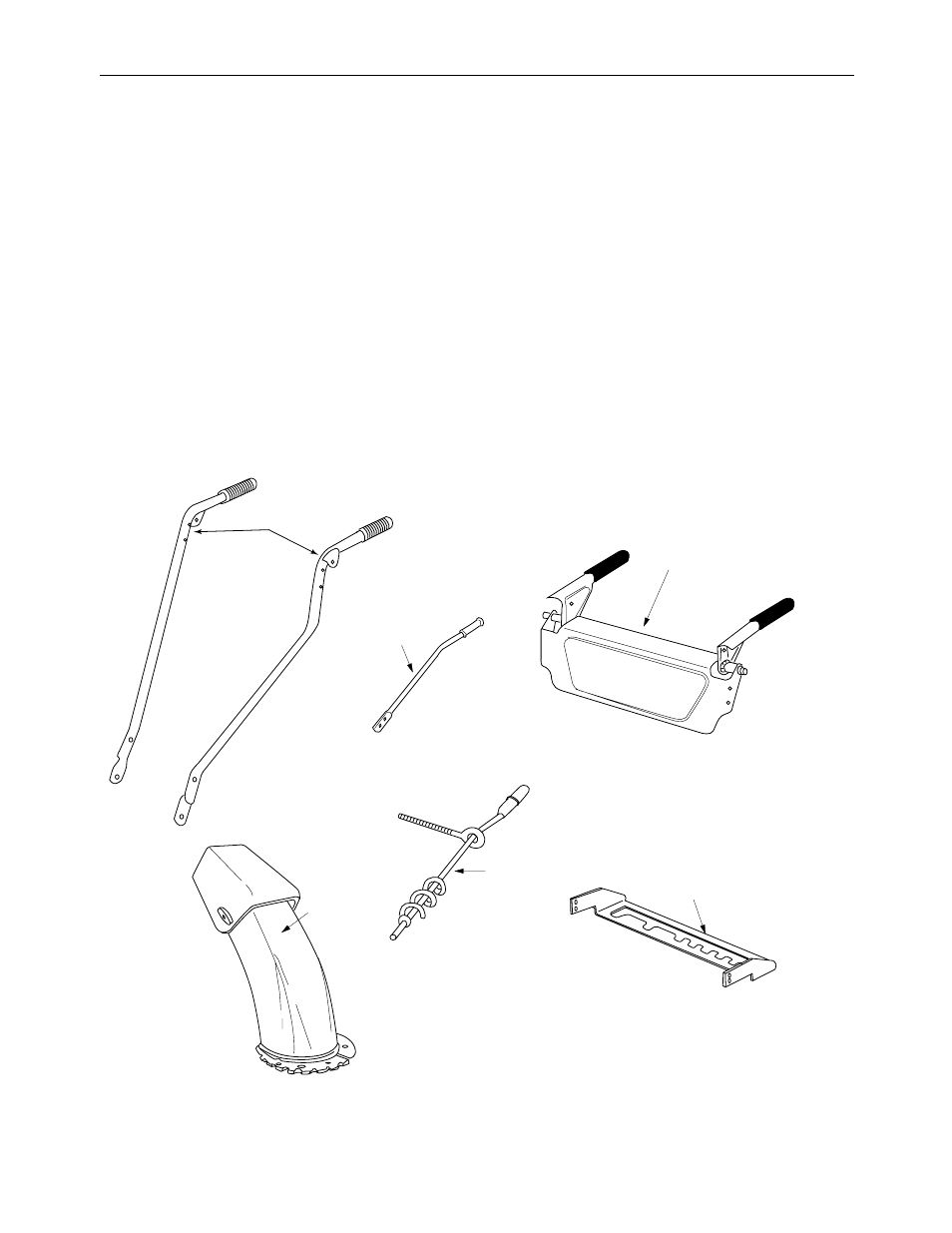

LOOSE PARTS IN CARTON (See Figure 1)
Figure 1
A (2) Handles (Right and Left)
B (1) Handle Panel Assembly
C (1) Speed Selector Plate
D (1) Shift Lever
E (1) Chute Crank Assembly
F (1) Chute Assembly
(1) Hardware Pack
A
C
D
E
F
B
