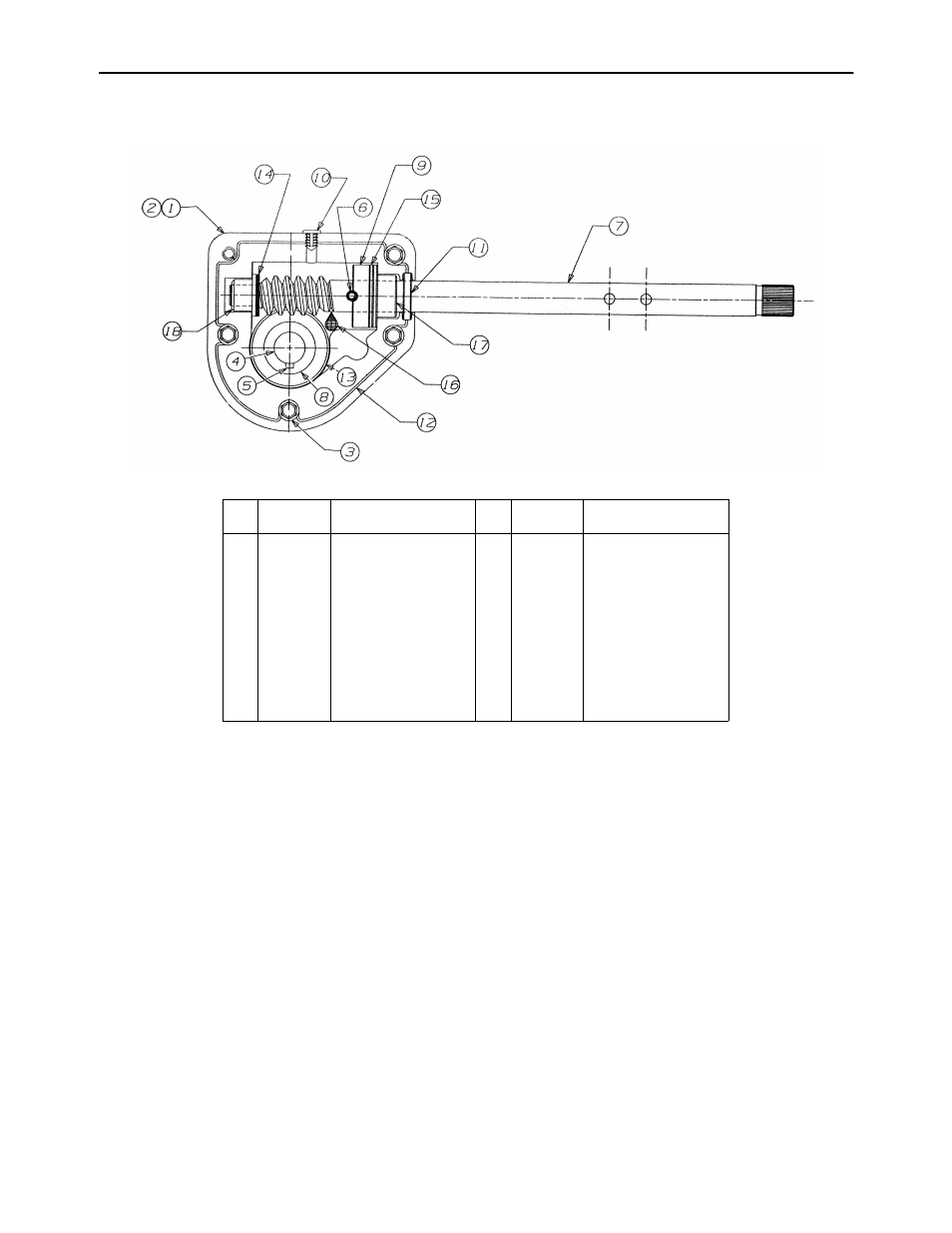

SECTION 13: ILLUSTRATED PARTS
GEAR ASSEMBLY

Ref.
No. Part No.

Description

Ref.
No. Part No.

Description

1

618-0123

Housing—L.H.

11

721-0327

Seal-Oil

2

618-0124

Housing—R.H.

12

721-0328

Locktite 5699

3

710-0642

Screw

13

736-0351

Washer-Flat

4

711-1020

Spiral Axle 22"

14

736-0369

Washer-Flat

711-0908

Spiral Axle 24"

15

736-0445

Washer-Flat

5

714-0161

Key

16

737-0168

Grease

6

715-0143

Pin-Spiral

17

741-0376

Bearing-Flange

7

717-0526

Shaft-Worm

18

748-0108

Bearing-Flange

8

717-0528

Gear-Worm

618-0152

Ass’y. Complete 22"

9

718-0186

Collar-Thrust

618-0120

Ass’y. Complete 24"

10

721-0325

Plug
