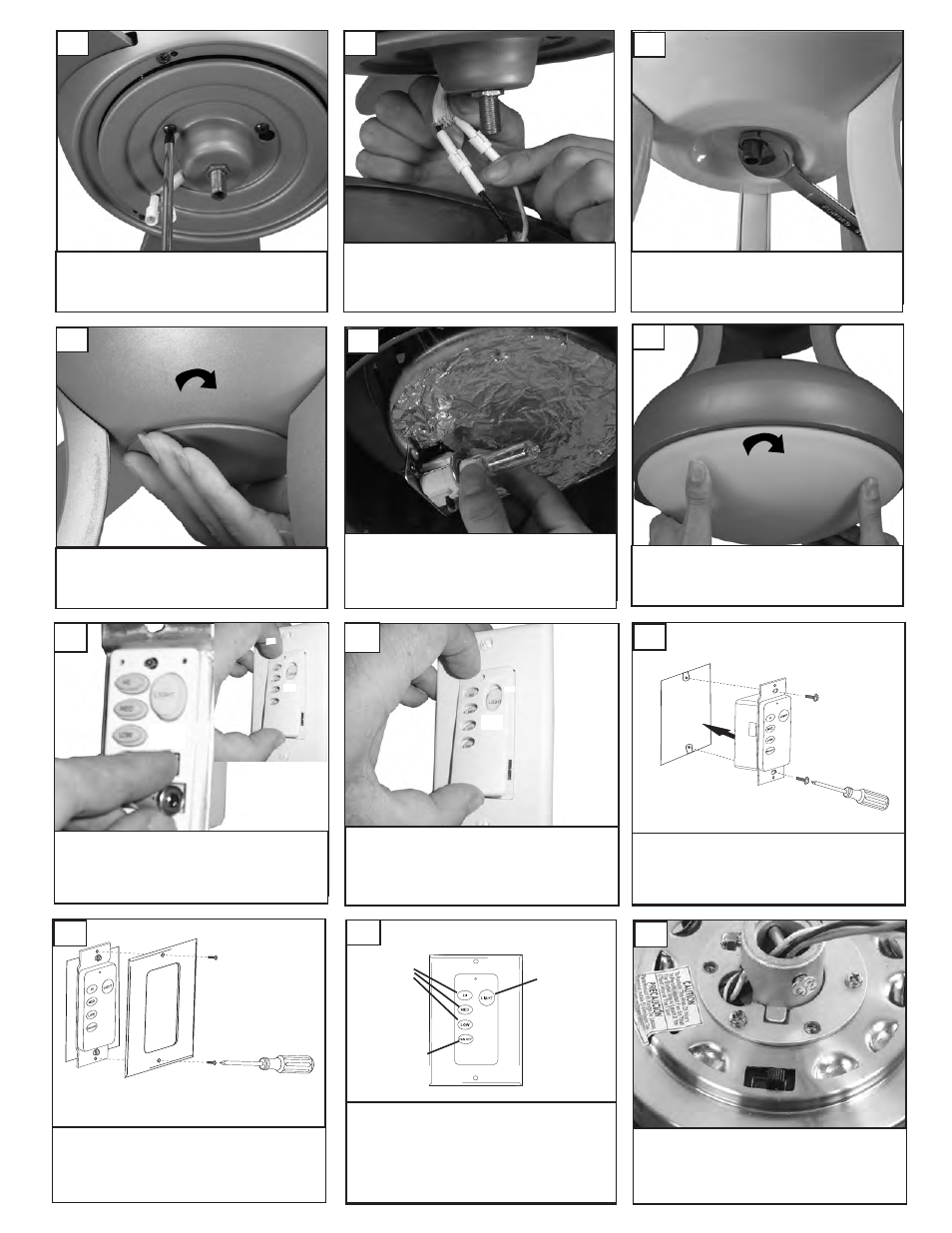

Install light fixture over all thread
and use nut provided to secure in
place.
45
Attach decorative cap to light fixture
by twisting into place.
46
Install 1 x 100 halogen bulb E-11.
Do not touch bulb surface as oily
residue from skin can cause the bulb
to explode.
Attach glass by locating dimples in
light fixture with the groves in glass
and twisting clockwise till tight.
48
47
Attach front cover to wall control
with screws provided.
52
Install wall control unit to outlet box
using machine screws provided.
51
To control fan speed select from high,
medium or low speed buttons. To turn
the fan off press the Fan on / off button.
To dim lights press and hold light but-
ton. To turn off light press and quickly
release button.
Fan speed
control
buttons
Fan on / off
Light dimmer
for lights
53
Remove cover by snapping off from
top or bottom. Install 12V battery
into wall remote. Duracell
MN21/Eveready A23/GP 23A all 12V
49
Attach cover of remote by placing
over buttons and snapping into
place.
50
Reverse function for this fan is a
switch on top housing of the fan
body. Turn fan off and flip switch this
will reverse the direction of the
blades.
54
Replace screw removed and tighten
the 3 screws securely
43
Connect white wire from fan to white
wire from light fixture. Then plug
black wire from fan to black wire
from light fixture.
44
