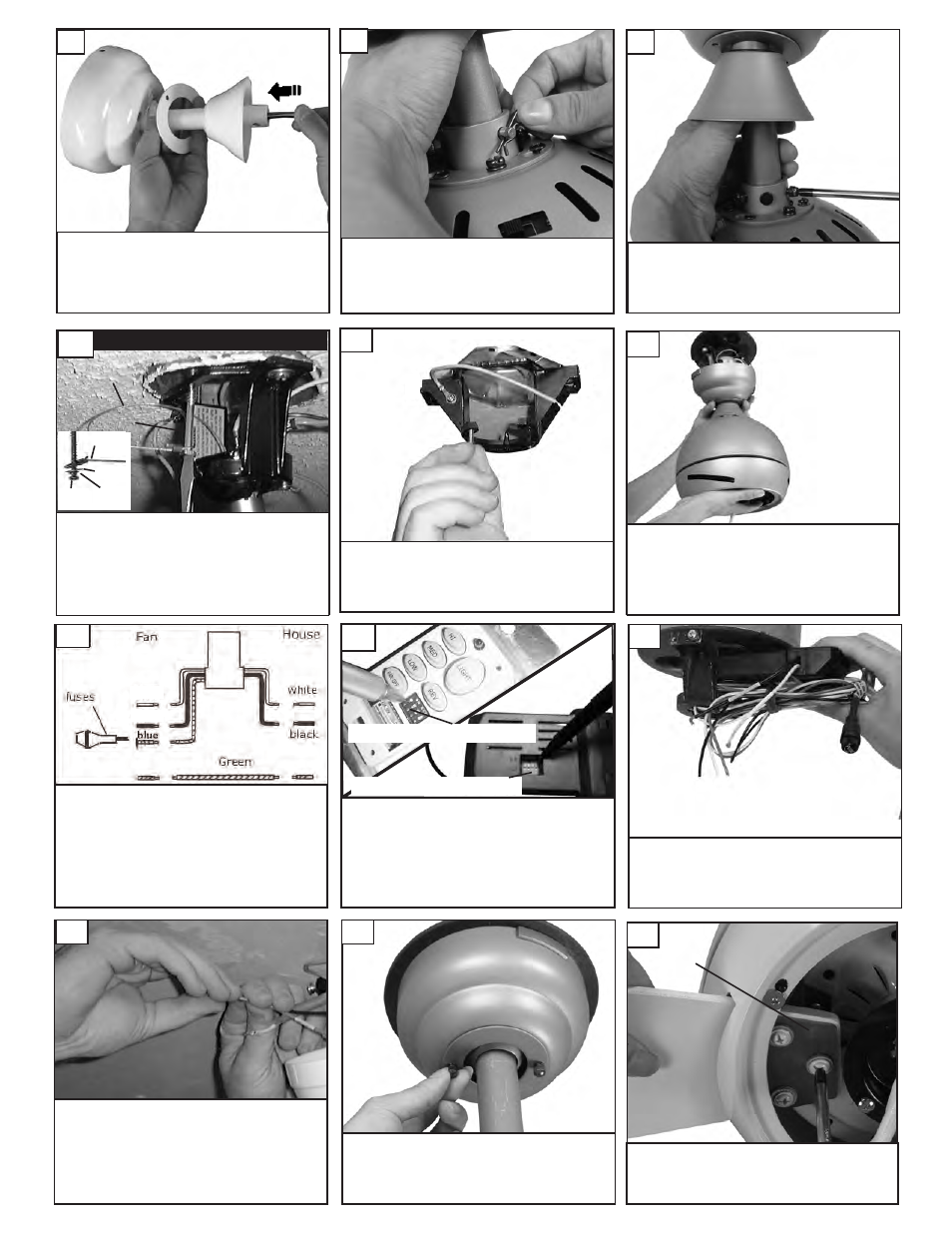

Hang assembled fan from the mounting bracket

installed to ceiling in previous step. Make sure the

fan is hanging straight. Rotate fan until the tab on

the Mounting bracket engages the slot on the

Downrod Ball. This must be done to prevent the fan

body from rotating when the blades are in motion.

Make sure the studs protruding from the

bottom of the Mounting bracket are

installed with threads all the way through

the bracket.

Next lift the cover ring and install knurled

nuts as shown. Tighten the knurled nuts

securely. The canopy should adjust for

any irregularity in the ceiling or Outlet

box.

Insert downrod into yoke on top of the Fan

Body. Align the hole in the Downrod with the

hole in the Yoke. Insert the Pin through the

Yoke and Downrod until the point appears on

the other side. Install the keeper to pin.

Tighten the 2 set screws on the Yoke

once the downrod is in place.

Place canopy, canopy ring and

then yoke cover on downrod.

Thread leadwires and safety

cable through downrod. As

shown.

Make wire connections to power source using wire nuts
provided. Make sure that no filiments are outside of
the wirenut. After making the wire connections, the
wires should be spread apart with the grounded con-
ductor and the equipment-grounding conductor on one
side of the outlet box and ungrounded conductor on
the other side of the outlet box.

For Canadian installation and for USA fan and

light kit combinations over 35 lbs, in both flush

and downrod mode the safety cable must be

installed into the house structure beams using

the 3” lag screws,washers, and lock washers.

provided. Make sure that when the safety cable

is fully extended the leadwires are longer than

the cable and no stress is placed on the lead-

wires.

Safety cable installation

Safety Cable

Lag Screw

safety

cable

3” lag

screw

lock

washer

Slide remote receiver into mounting

bracket.

Make wiring connections as indicated above.

White from fan to white from remote marked

N. Blue from fan to blue from remote marked

light. Black from fan to Black from remote

marked L. White from house to white from

remote marked AC N . Black from house to

Black from remote marked AC L. Connect all

green ground wires to Ground wire from

House.

white

black

Set dip switches on the Remote Transmitter and Remote

Receiver to the same settings. This must be done so the

units will communcate properly. If you have other fans you

can set to control from one transmitter by setting both

receivers the same as the transmitter. If you have more

than one fan with remote. You can set the dip switches to

different positiosns to have seperate control.

Remote Transmitter Dip swtiches

Remote Receiver Dip switches

Align the blade and then the blade

plate with castings on motor to

attach blades to motor.

Blade plate
