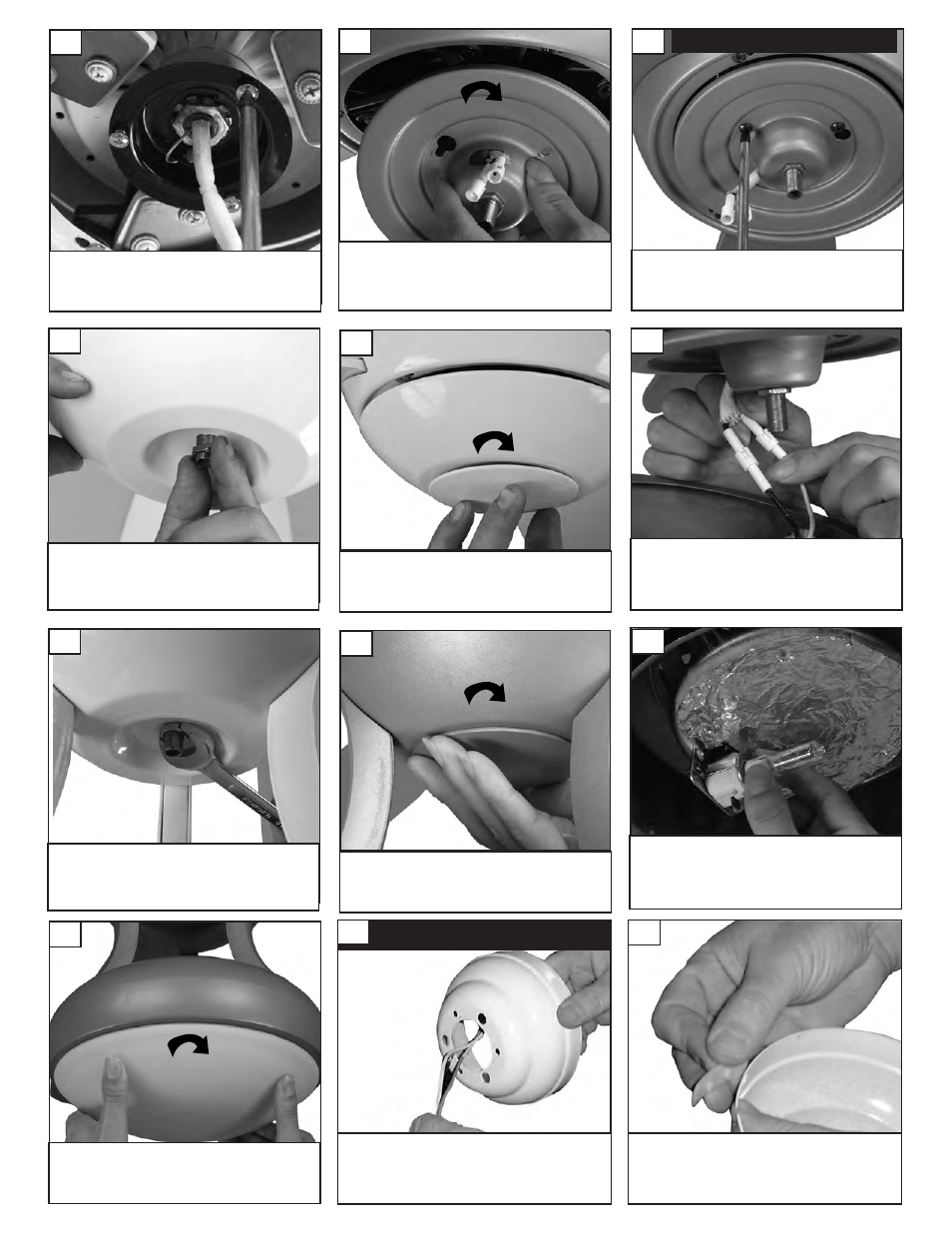

Connect white wire from fan to white
wire from light fixture. Then plug
black wire from fan to black wire
from light fixture.
24
Loosen 2 screws with key slots and
remove 1 screw without slot from
motor plate and save screw.
19
Install light plate by twisting plate
with key hole slots into place.
20
Replace screw removed and tighten
the 3 screws securely.
21
Install light fixture over all thread
and use nut provided to secure in
place.
25
FFlluusshh M
Moouunntt IInnssttaallaattiioonn
Pass leadwires and safety cable
through the canopy.
29
Remove side covers from canopy
exposing 4 holes. 2 closed holes
and 2 open “L” shape holes.
30
Attach decorative cap to light fixture
by twisting into place.
26
Install 1 x 100 halogen bulb E-11.
Do not touch bulb surface as oily
residue from skin can cause the bulb
to explode.
Attach glass by locating dimples in
light fixture with the groves in glass
and twisting clockwise till tight.
28
27
Install light plate over all thread and
use nut provided to secure in place.
22
Attach blanking plate to fan by twist-
ing into place.
23
G
Goo ttoo sstteepp 2244 ffoorr LLiigghhtt kkiitt
