Section 3: Installing the M54E2

M54E2 System Board Manual

3-5

Installing the SIMMs

To install the SIMMs, locate the memory banks on the system board and
perform the following steps:

1.

Hold the SIMM so that the notched edge is aligned with the notch on
the SIMM socket (Figure 3-1).

2.

Insert the SIMM at a 45 degree angle.

3.

Gently push the SIMM into an upright position until it locks into
place (past the release tabs).

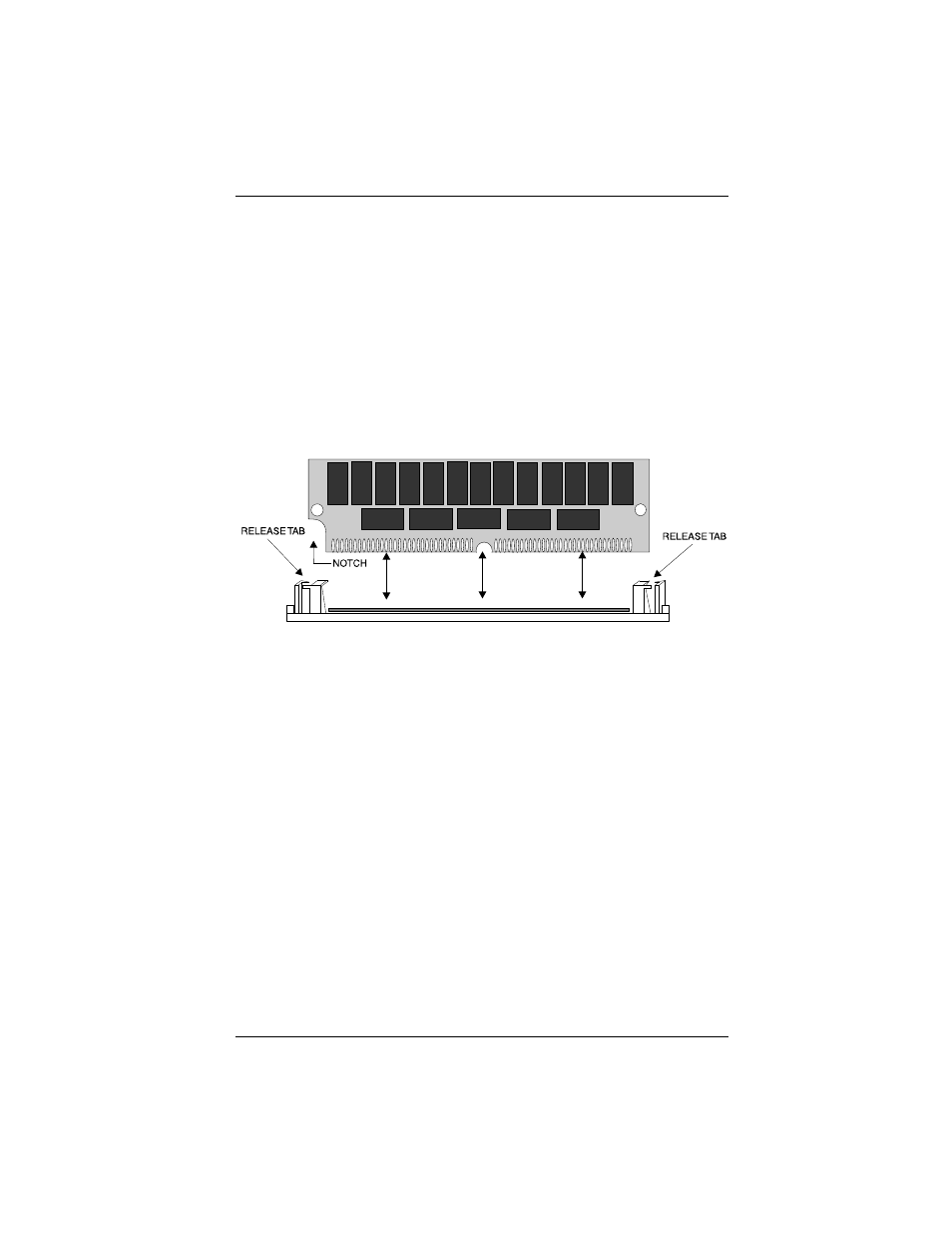

Figure 3-1: Installing a 72-Pin SIMM

Removing SIMMs

To remove SIMMs, follow the steps below:

1.

With both thumbs (or fingers), press the release tabs away from the
socket.

2.

With the SIMM free from the release tabs, lift the module up and
place in an anti-static bag or package.
