Mars Air Systems L-2254 User Manual
Page 21
21
L-2254
Fig 8.
Ducting and Grille Sizing

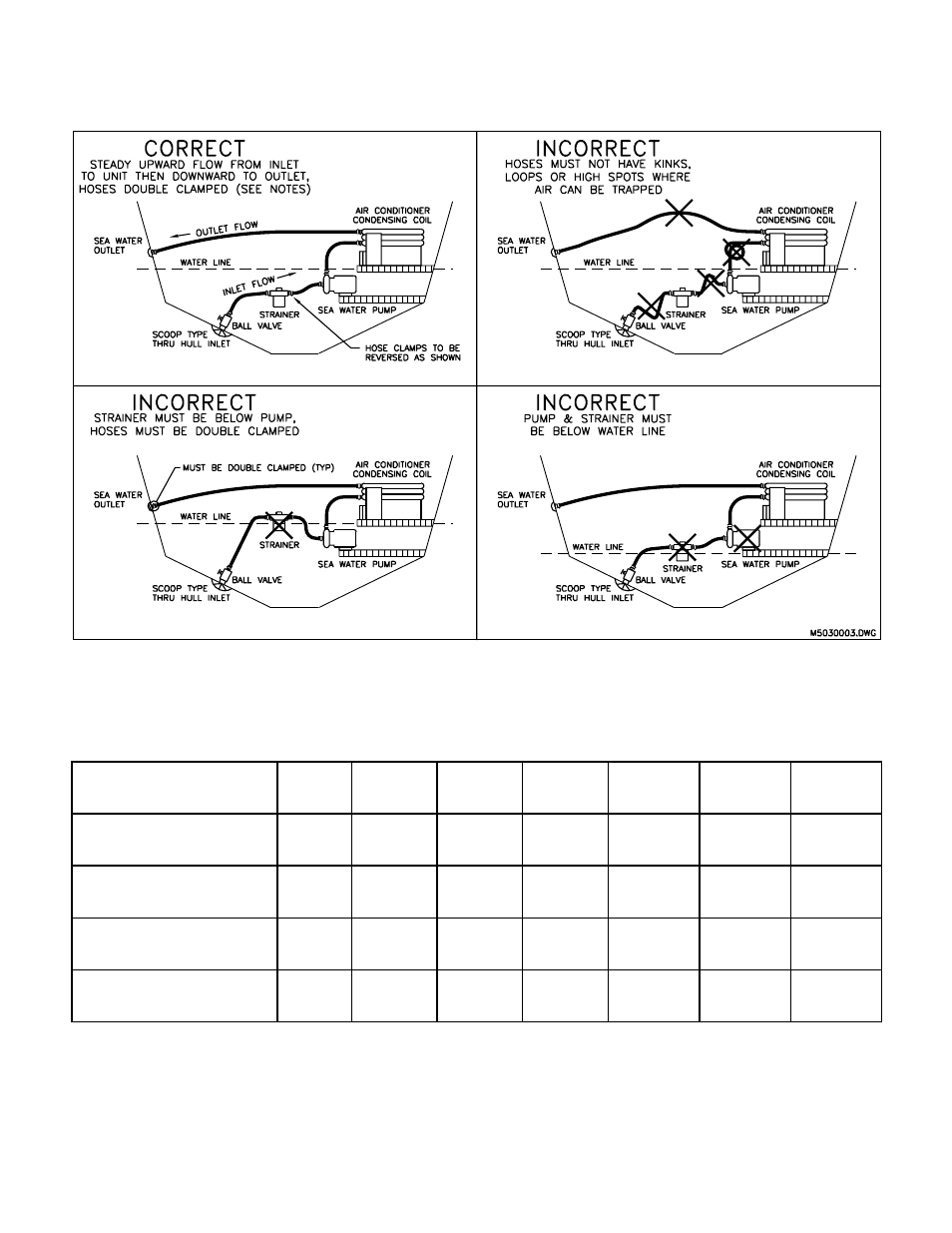

Fig 7.
Seawater pump and plumbing configuration
Model
5K
7K
10K
12K
16K
18K
24K
Duct Diameter (in/mm)
4/102
5/127
6/152
6/152
7/178
7/178
8/203
Duct Area (sq in/cm)
12.6/81 19.6/126 28.3/183 28.3/183
38.5/248
38.5/248
50.3/325
R/A Grille (sq in/cm)
64/413
80/516
100/645
130/839
160/1032 200/1290 240/1548
S/A Grille (sq in/cm)
32/206
45/290
60/387
70/452
80/516
100/645
140/903
