Mars Air Systems L-2254 - Manual (Page 19)

19
L-2254

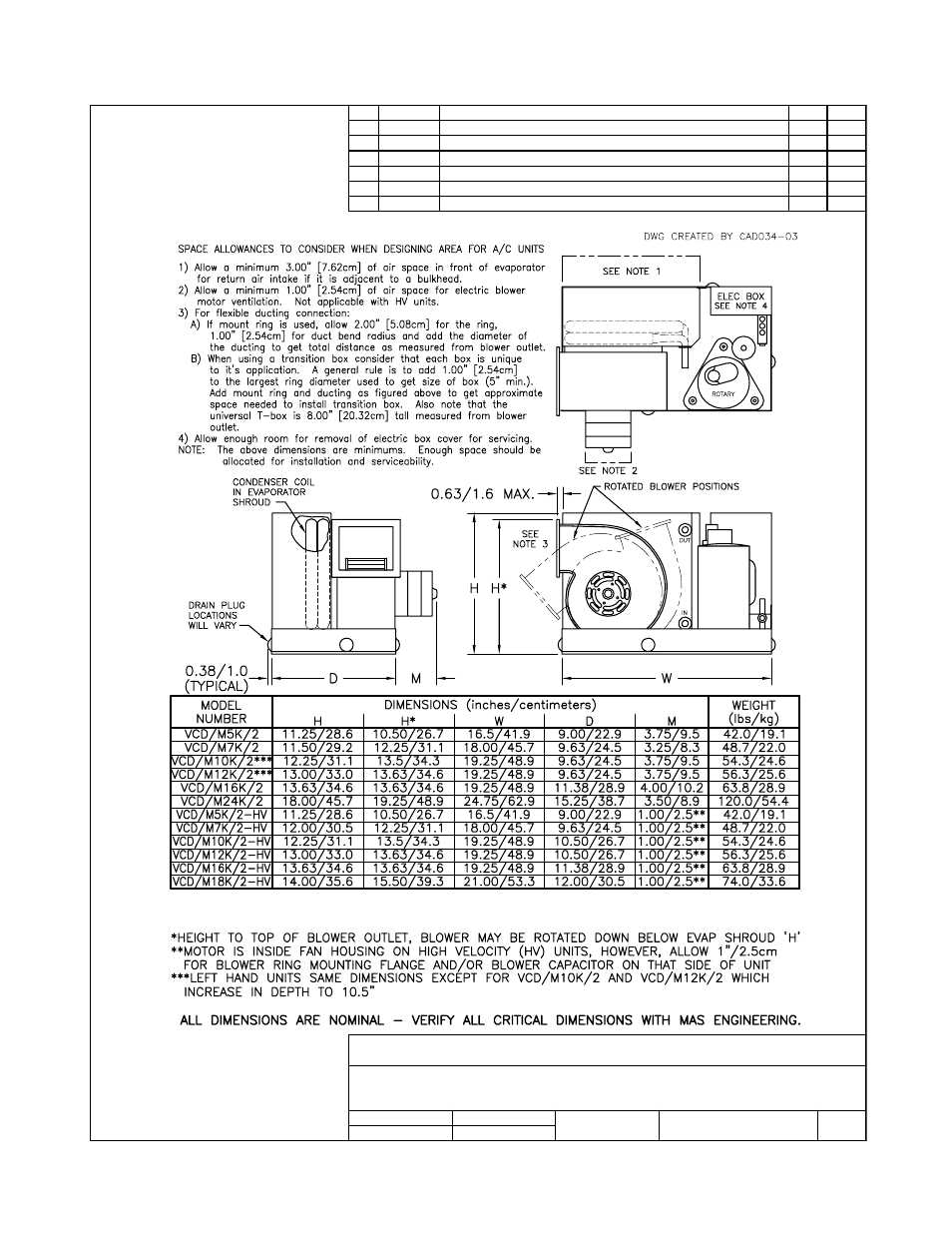

Fig 3. Spacing Allowances & Unit Dimensions
PROPRIETARY NOTE: THE INFORMATION CONTAINED
WITHIN THIS DOCUMENT IS THE PROPERTY OF DOMETIC
CORPORATION. ANY ATTEMPT TO COPY OR DISTRIBUTE
WITHOUT WRITTEN CONSENT FROM DOMETIC
CORPORATION SHALL BE CONSIDERED UNLAWFUL AND
CAN BE CONTESTED IN A COURT OF LAW.
PART NUMBER: G
W
D
V
E
R
DATE:
SCALE:
DWG BY:
APR BY:
Dometic Environmental Corporation - Marine Air
REVISION DESCRIPTION DWG APR DATE REV
M1020049 D
N/A
VCD/M5-24K (HV), VECTOR COMPACT PSPRT I/O
& MECH SPACING ALLOWANCES AND DIMENSIONS
1/21/03
1:10
DRR
RAP
A 3/7/03 REVISED TABLE DIMS,CAD200-03 DRR RAP
B 3/28/03 REVISED DIMS & MODEL NUMBERS,CAD251-03 DKM RAP
C 5/24/04 ADDED VCD/M18K/1-HV TO TABLE,CAD345-04 DRR RAP
D 7/15/05 ADDED 5KHV DIMS,REVISED TO /2 FROM /1,CAD428-05 DRR RAP
