1.

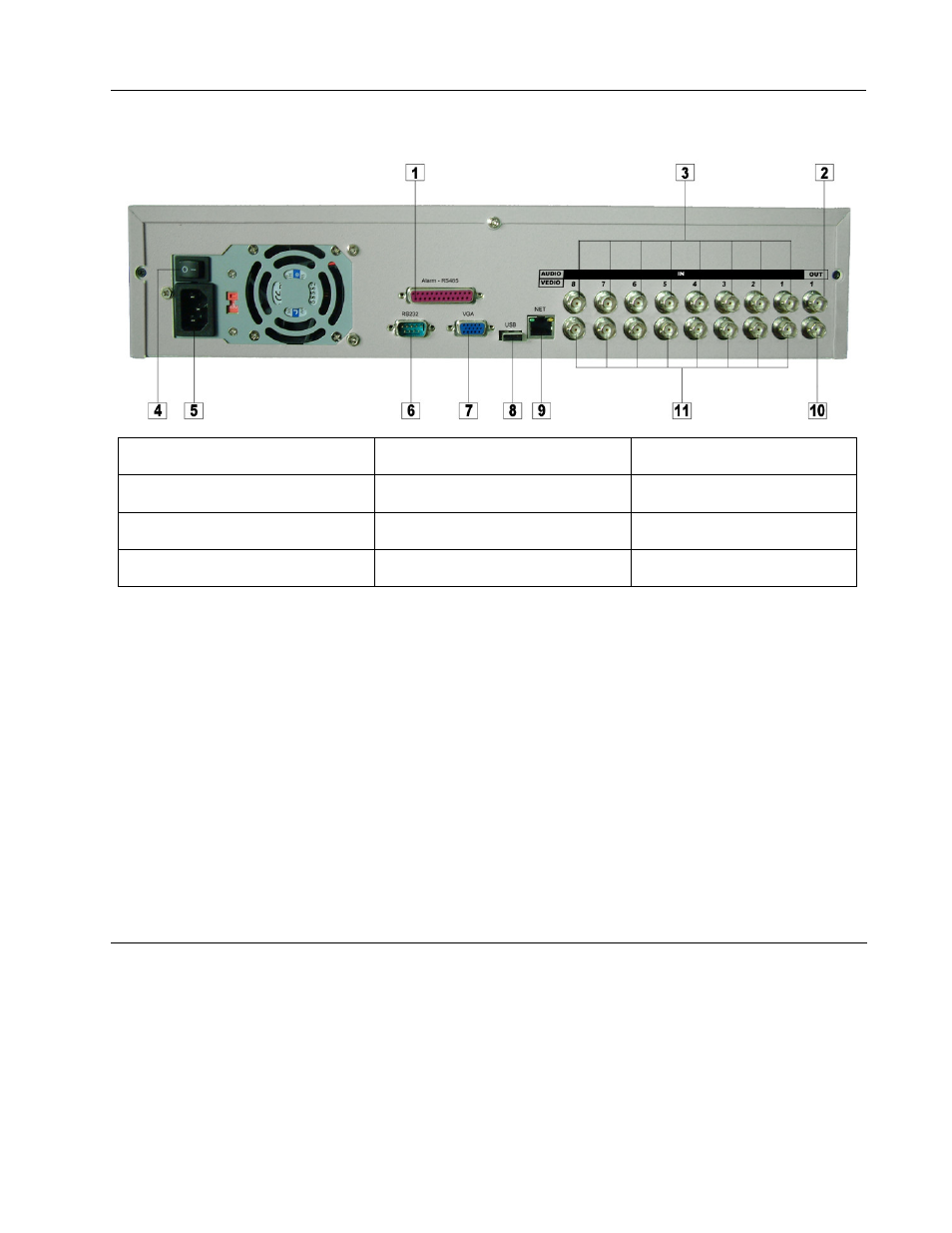

DVR Rear View
1-
Alarm – RS485 (DB-25)
2-
Audio Out (BNC)
3-
Audio In (BNC)
4-
Power Switch
5-
Power Plug-in
6-
RS232 (DB-9)
7-
VGA out (HD-15)
8-
USB port
9-
RJ45 (10 Base-T)
10-
Video Out (BNC)
11-
Video In (BNC)
Network connection note: When connecting directly to the network card of a computer, please use CAT-5
Crossover Cable; when connecting to a LAN or Router use CAT-5e cable.
