Connecting a DTV Receiver

DTV Connectors and Adaptors

(Figure 11)

The TV back panel has five RCA-type connectors for

the DTV connection. The back panel of your DTV

receiver may use RCA-type connectors or BNC-type

connectors. If your DTV receiver comes with BNC

type connections, you will need to purchase BNC to

RCA adaptors to connect the TV to the DTV receiver.

These adaptors should be available at most electronic

supply stores.

DTV Receiver with Component

Video Connections

(Recommended)

(Figure 12)

1. Connect the outside antenna cable, or satellite to

ANT or SATELLITE IN on the DTV receiver

(see your DTV receiver owner’s guide for

instructions and cable compatibility).

2. If your DTV receiver has a built-in terrestrial tuner,

connect the incoming terrestrial antenna to ANT

on the DTV receiver. If your DTV receiver does

not have a built-in terrestrial tuner, this TV will

only be able to provide an analog signal through

Ant-A on the TV back panel.

3. Connect the RCA-type cables from the DTV

receiver outputs to DTV INPUT Y/Pb/Pr on the

TV back panel. You may need to set the DTV

Input Assignment to Y/Pb/Pr.

(see page 35 for WT-42413 or

page 38 for WS-48413, WS-55413 or WS-65413)

4. Connect the L (left) and R (right) audio cables

from the DTV receiver to DTV AUDIO on the

TV back panel.

5. To utilize the benefits of a digital A/V receiver,

connect your DTV receiver’s digital audio out

to a digital input on your digital A/V receiver.

Component (1 and 2) may also be used for 1080i

components.

See Appendix B, page 67 for component video

signal compatibility information.

For digital audio connections, see your DTV

receiver and A/V receiver Owner’s Guides.

BNC to
RCA BNC
Adaptor Connector

Adaptor
Fitted to
Connection

RCA
Connector

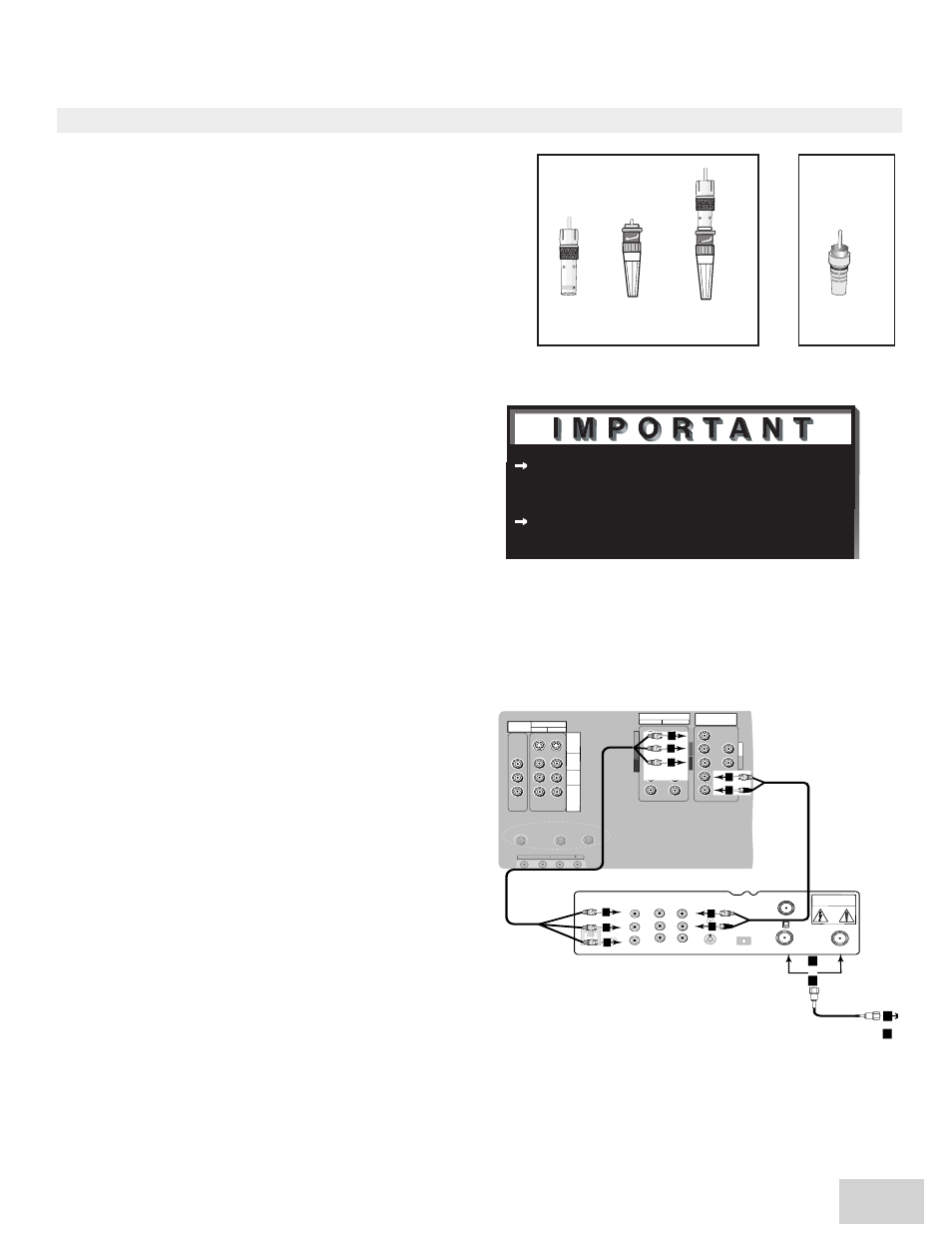

Figure 11. DTV connectors and adaptors.

Figure 12. Connecting the DTV receiver with

component Video Connections.

�

��

�

� �

�

��

�

� �

��

��
��

� � ��

� ��

��

� � � � �

�

��
� ��

��
��

��

� � � ��

��

� � � � �

� � � �

��

�

��

�

� �

�

��

�

� ��

�

��

��
��

��

�

��

�

��

�

� ��

IR EMITTER

NetCommand IR

REPEATER

�

��

�

Note: The TV back panel and connections shown here are for reference only and may vary by model.
